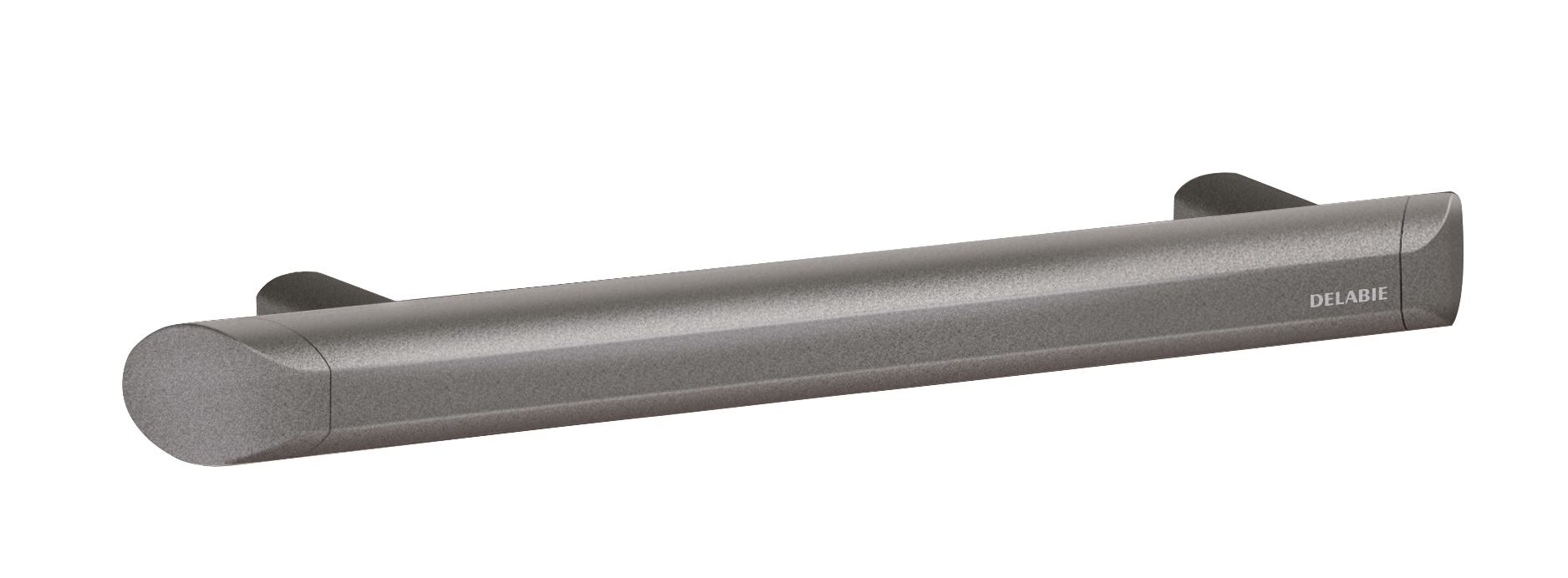

Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904C
Metallised anthracite powder-coated aluminium
Metallised anthracite powder-coated aluminium
DESCRIPTION
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904CBe-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
400mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
400mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
2024 UK public price excluding VAT: £84.86
ADVANTAGES
![Design](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Innovative design suitable for all users
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: ergonomic anti-rotation surface
![Sécurité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
38mm gap between bar and wall: space saving
TECHNICAL CHARACTERISTICS
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904CLength | 400mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904C![](https://www.delabie.co.uk/var/site/storage/images/4/2/2/7/3137224-1-fre-FR/PD_511904C.jpg)
1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511903BK | Matte black powder-coated aluminium - 300mm | £88.71 excl. VAT | |
---|---|---|---|
511903C | Metallised anthracite powder-coated aluminium - 300mm | £77.14 excl. VAT | |
511903W | Matte white powder-coated aluminium - 300mm | £77.14 excl. VAT | |
511904BK | Matte black powder-coated aluminium - 400mm | £97.60 excl. VAT | |
511904W | Matte white powder-coated aluminium - 400mm | £84.86 excl. VAT | |
511905BK | Matte black powder-coated aluminium - 500mm | £106.45 excl. VAT | |
511905C | Metallised anthracite powder-coated aluminium - 500mm | £92.58 excl. VAT | |
511905W | Matte white powder-coated aluminium - 500mm | £92.58 excl. VAT | |
511906BK | Matte black powder-coated aluminium - 600mm | £115.33 excl. VAT | |
511906C | Metallised anthracite powder-coated aluminium - 600mm | £100.29 excl. VAT | |
511906W | Matte white powder-coated aluminium - 600mm | £100.29 excl. VAT | |
511909BK | Matte black powder-coated aluminium - 900mm | £139.17 excl. VAT | |
511909C | Metallised anthracite powder-coated aluminium - 900mm | £123.43 excl. VAT | |
511909W | Matte white powder-coated aluminium - 900mm | £123.43 excl. VAT |
