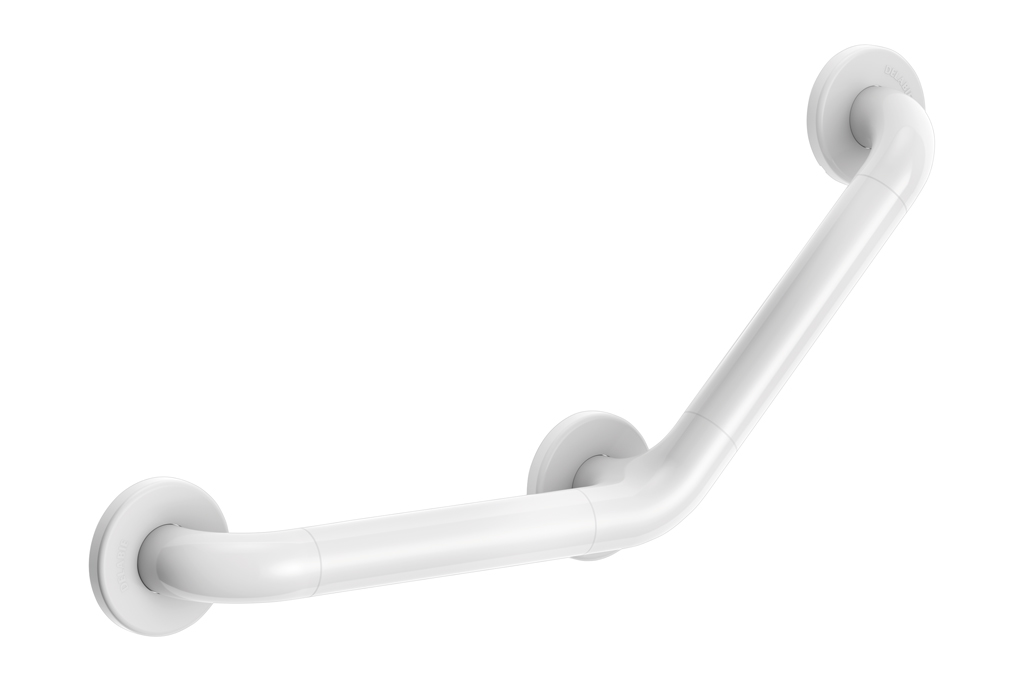

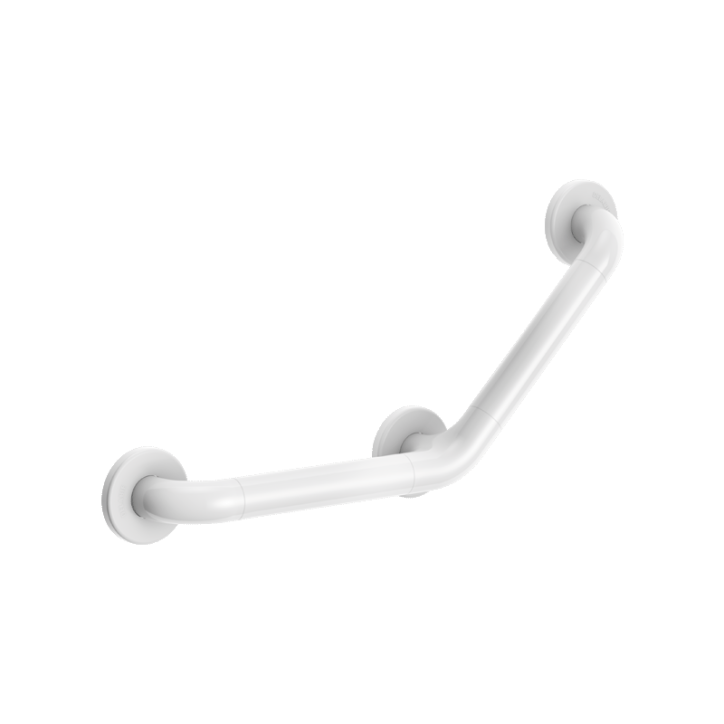

Angled Nylon grab bar 135°, white, anti-bacterial, 220 x 220mm

Ref. 5083N
Bright white HR anti-bacterial Nylon, NylonClean, 3 fixing points
Angled Nylon grab bar 135°, white, anti-bacterial, 220 x 220mm

Presentation

DESCRIPTION

Angled Nylon grab bar 135°, white, anti-bacterial, 220 x 220mm

Ref. 5083N
Angled grab bar 135°, Ø 32mm, for people with reduced mobility.
Angled grab bar made from bright white HR Nylon.
For use as a handrail (horizontal part) or as a grab bar (135° part ) for WCs, showers or baths.
NylonClean anti-bacterial treatment: optimal protection against bacterial and mould development.
Universal for either left or right side.
Suitable for intensive use in public places or the healthcare sector.
High strength polyamide (Nylon): with 2mm reinforced steel core treated against corrosion.
Uniform non-porous surface for easy maintenance and hygiene.
Good resistance to chemical products and cleaning.
Anti-UV treatment: prevents yellowing.
Warm to the touch.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings secured by a 6-hole plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty.
CE marked.

2024 UK public price excluding VAT: £120.27

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

NylonClean anti-bacterial treatment

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap from the wall: space saving

Nettoyage aisé

HR Nylon: smooth surface is easy to clean

Characteristics

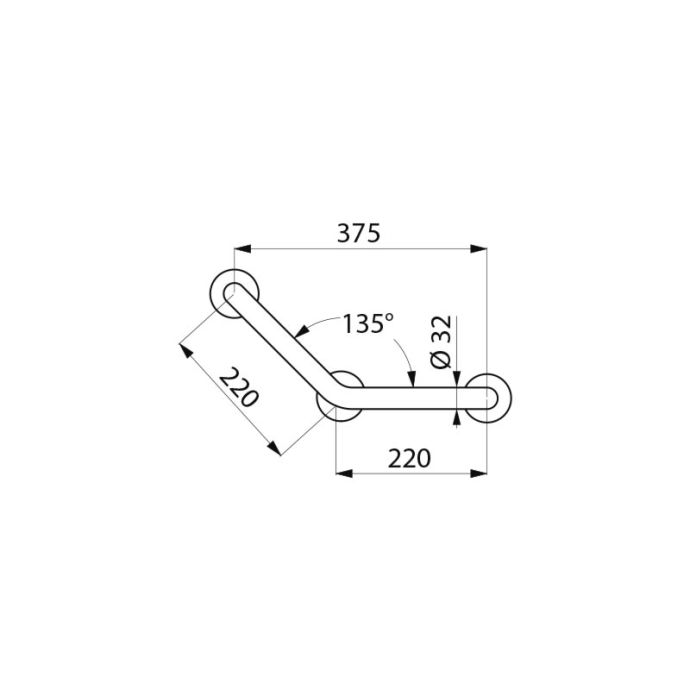

TECHNICAL CHARACTERISTICS

Angled Nylon grab bar 135°, white, anti-bacterial, 220 x 220mm

Ref. 5083N
Height 220mm
Length 220mm
Diameter 32mm
Width to the wall 38mm
Thickness Nylon: 3.5mm; Steel: 2mm
Finish HR anti-bacterial Nylon, bright white
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien coudée 135° Nylon blanc antibactérien, 220 x 220 mm

Ref. 5083N

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

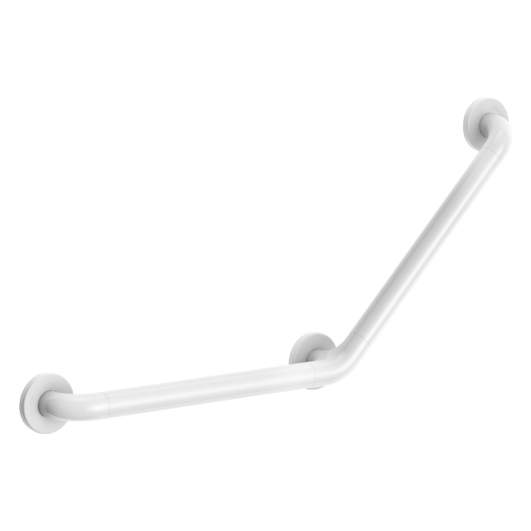

5081N 400 x 400mm £136.59 excl. VAT

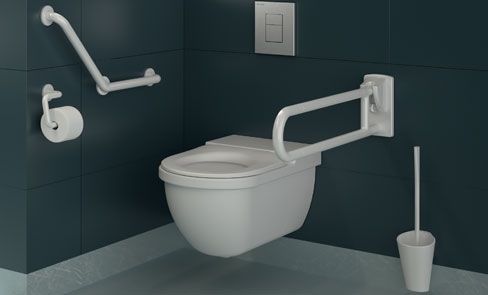

Standards and regulations for disabled toilets
