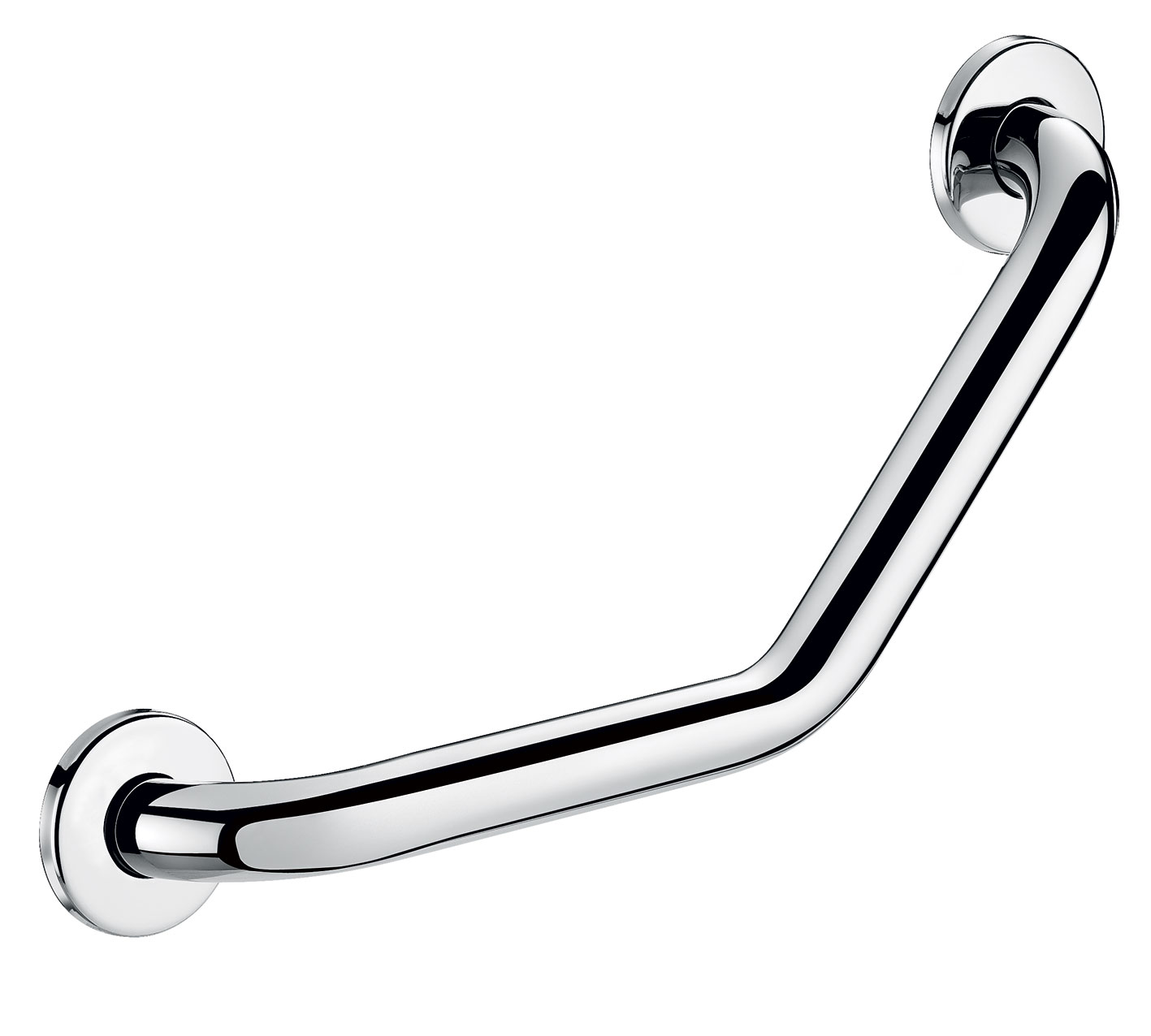

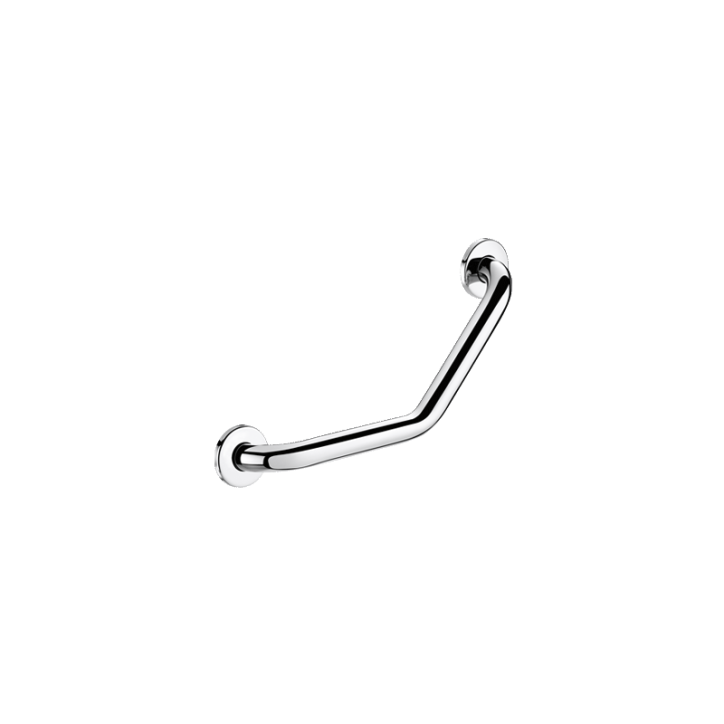

Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref. 5083P
UltraPolish bright polished stainless steel, 2 fixing points
UltraPolish bright polished stainless steel, 2 fixing points
DESCRIPTION
Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref. 5083PAngled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 220 x 220mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 220 x 220mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
2024 UK public price excluding VAT: £94.48
ADVANTAGES
304 stainless steel: reduces bacterial development
Tested to over 200kg
40mm gap between bar and wall: minimal space
UltraPolish: smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref. 5083PHeight | 220mm |
Length | 220mm |
Diameter | 32mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraPolish bright polished |
Certificates | |
Warranty |
VARIANTS
5081P2 | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | £98.93 excl. VAT | |
---|---|---|---|
5081S | Polished satin stainless steel UltraSatin - Ø 32, 400 x 400mm | £98.93 excl. VAT | |
5083S | Polished satin stainless steel UltraSatin -Ø 32, 220 x 220mm | £94.48 excl. VAT | |
5086P2 | Bright polished stainless steel UltraPolish - Ø 25, 400 x 400mm | £79.62 excl. VAT |
VARIANTS
5081P2 | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | £98.93 excl. VAT | |
---|---|---|---|
5081S | Polished satin stainless steel UltraSatin - Ø 32, 400 x 400mm | £98.93 excl. VAT | |
5083S | Polished satin stainless steel UltraSatin -Ø 32, 220 x 220mm | £94.48 excl. VAT | |
5086P2 | Bright polished stainless steel UltraPolish - Ø 25, 400 x 400mm | £79.62 excl. VAT |
