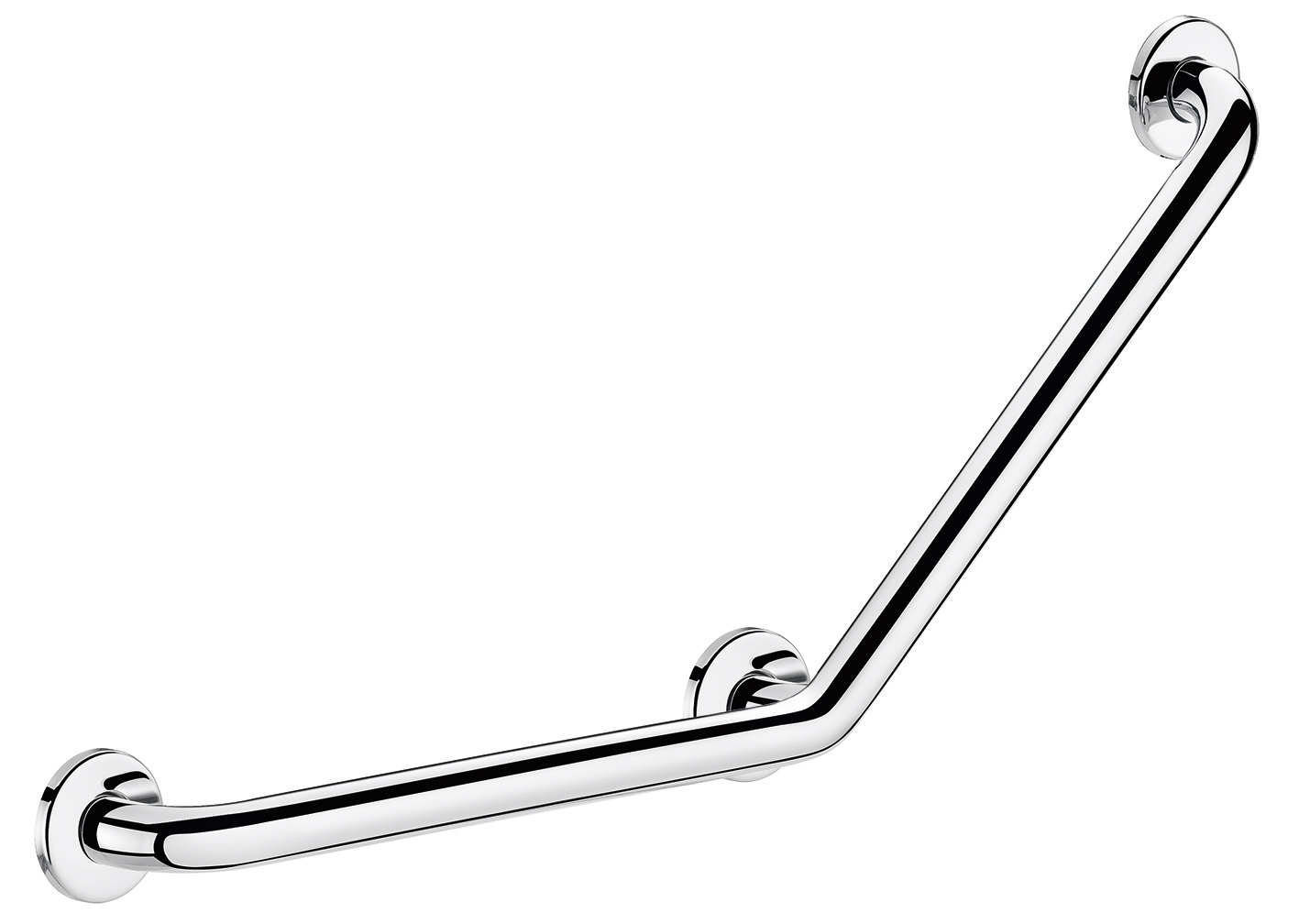

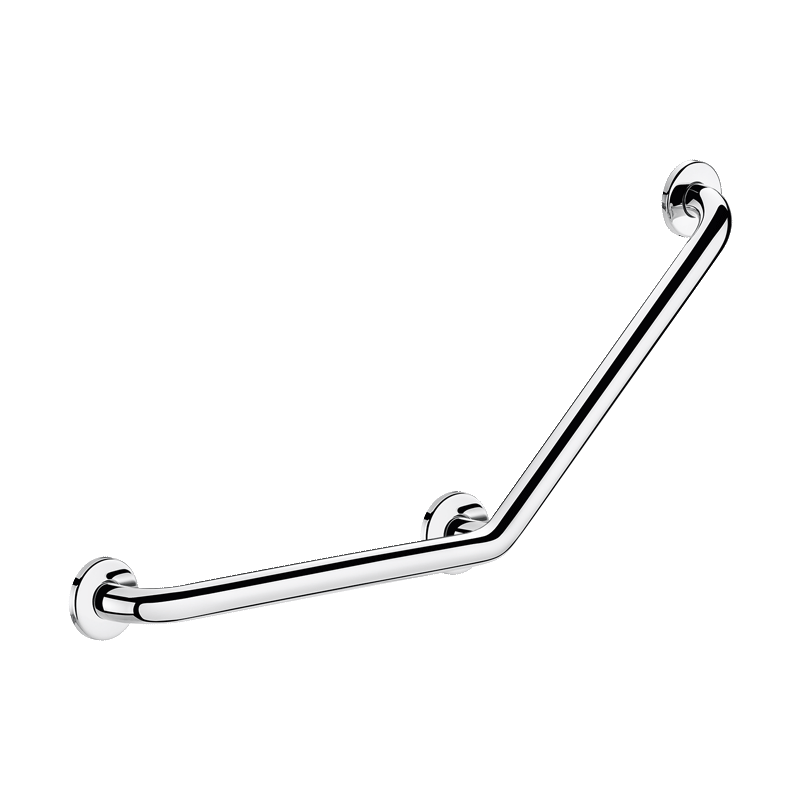

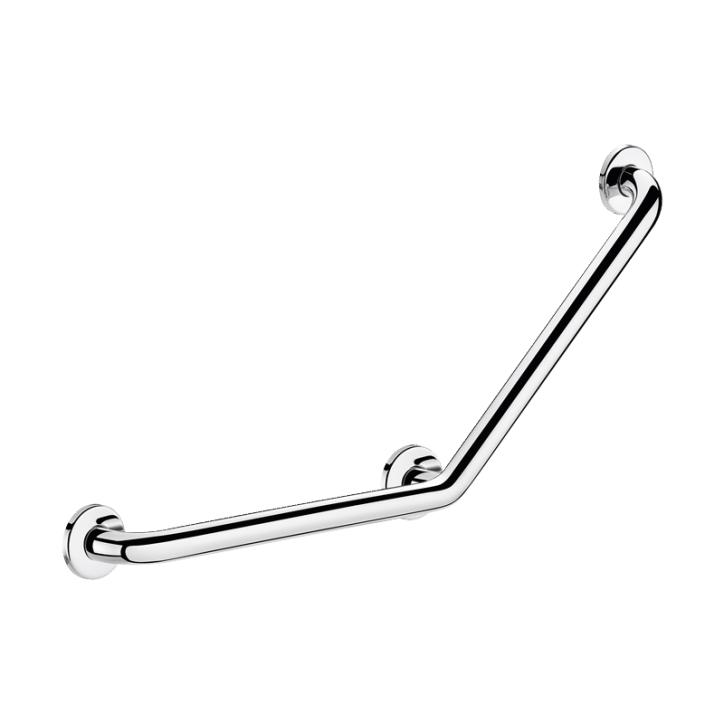

Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087P
UltraPolish bright polished stainless steel, 3 fixing points
UltraPolish bright polished stainless steel, 3 fixing points
DESCRIPTION
Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087PAngled grab bar 135° for people with reduced mobility, Ø 25mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the grab bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Maximum recommended user weight: 115kg.
30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the grab bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Maximum recommended user weight: 115kg.
30-year warranty. CE marked.
2024 UK public price excluding VAT: £91.38
ADVANTAGES
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
304 stainless steel: reduces bacterial development
![Sécurité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
For user weights up to 115kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
40mm gap between bar and wall: minimal space
![Nettoyage aisé](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/2/0/3/3029-12-eng-US/nettoyage-aise.png)
UltraPolishbasin: smooth surface easy to clean
TECHNICAL CHARACTERISTICS

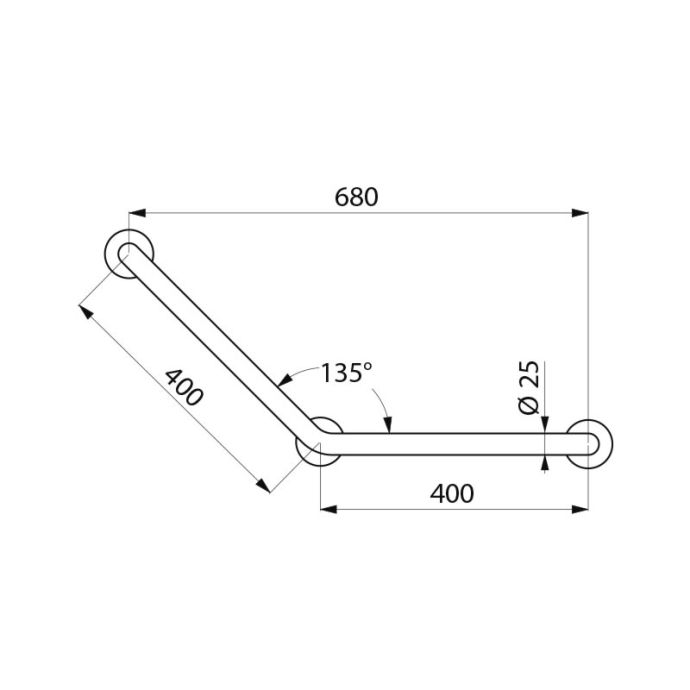

Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087PHeight | 400mm |
Length | 400mm |
Diameter | Ø 25mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraPolish bright polished |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | £113.77 excl. VAT | |
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | £113.77 excl. VAT | |
5082W | White powder-coated stainless steel - Ø 32, 400 x 400mm | £138.09 excl. VAT |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | £113.77 excl. VAT | |
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | £113.77 excl. VAT | |
5082W | White powder-coated stainless steel - Ø 32, 400 x 400mm | £138.09 excl. VAT |
