Stainless steel drop-down rail with leg, satin, L. 850mm
Ref. 510170S
UltraSatin polished satin stainless steel
UltraSatin polished satin stainless steel
DESCRIPTION

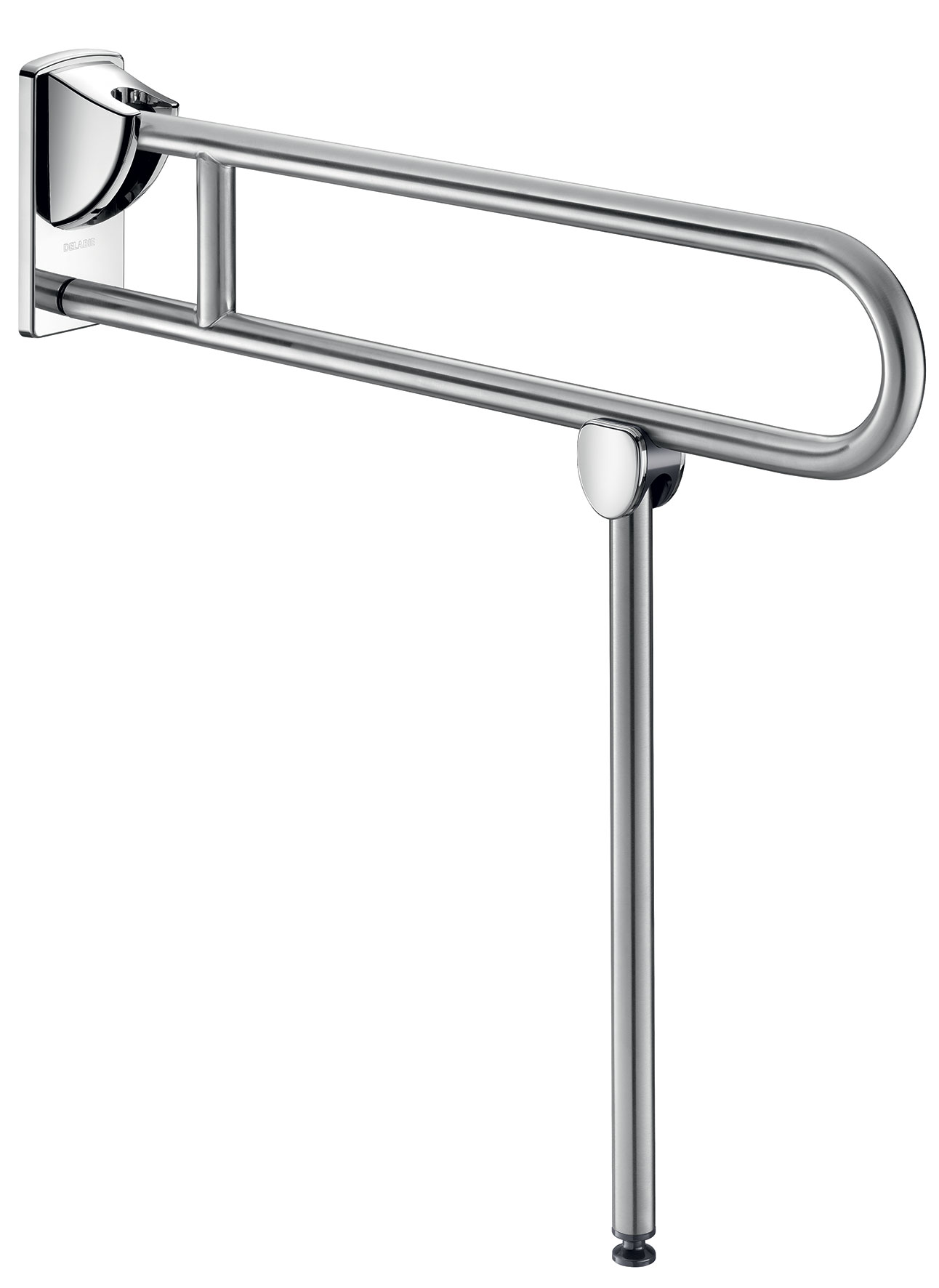

Stainless steel drop-down rail with leg, satin, L. 850mm
Ref. 510170SDrop-down grab bar Ø 32mm with leg, for people with reduced mobility.
Drop-down grab bar for WCs or showers.
Allows side access in the raised position.
In the lowered position use as a grab bar, for standing up and assisting movement.
With automatic folding leg: to be used as reinforcement when the wall fixing alone is insufficient.
Leg height can be adjusted from 760 - 780mm.
Retained in upright position. Slowed down descent.
Drop-down grab bar made from bacteriostatic 304 stainless steel.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Concealed fixing, secured to wall by a 4mm thick 304 stainless steel plate.
Supplied with stainless steel screws for concrete walls.
Dimensions: 850 x 800 x 105mm.
Tested to over 250kg. Maximum recommended user weight 170kg.
30-year warranty.
CE marked.
Drop-down grab bar for WCs or showers.
Allows side access in the raised position.
In the lowered position use as a grab bar, for standing up and assisting movement.
With automatic folding leg: to be used as reinforcement when the wall fixing alone is insufficient.
Leg height can be adjusted from 760 - 780mm.
Retained in upright position. Slowed down descent.
Drop-down grab bar made from bacteriostatic 304 stainless steel.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Concealed fixing, secured to wall by a 4mm thick 304 stainless steel plate.
Supplied with stainless steel screws for concrete walls.
Dimensions: 850 x 800 x 105mm.
Tested to over 250kg. Maximum recommended user weight 170kg.
30-year warranty.
CE marked.
2024 UK public price excluding VAT: £421.51
ADVANTAGES
304 stainless steel: reduces bacterial development
Tested to over 250kg
UltraSatin: Smooth surface, easy to clean
Diameter adapted for an optimal grip
TECHNICAL CHARACTERISTICS
Stainless steel drop-down rail with leg, satin, L. 850mm
Ref. 510170SHeight | 800mm, rail from 760 to 780mm |
Length | 850mm |
Width | 105mm |
Diameter | 32mm |
Finish | 304 stainless steel UltraSatin polished satin |
Certificates | |
Warranty |
VARIANTS
510162P | Bright polished stainless steel UltraPolish - 650mm | £390.85 excl. VAT | |
---|---|---|---|
510162S | Polished satin stainless steel UltraSatin - 650mm | £390.85 excl. VAT | |
510170P | Bright polished stainless steel UltraPolish - 850mm | £421.51 excl. VAT |
VARIANTS
510162P | Bright polished stainless steel UltraPolish - 650mm | £390.85 excl. VAT | |
---|---|---|---|
510162S | Polished satin stainless steel UltraSatin - 650mm | £390.85 excl. VAT | |
510170P | Bright polished stainless steel UltraPolish - 850mm | £421.51 excl. VAT |
