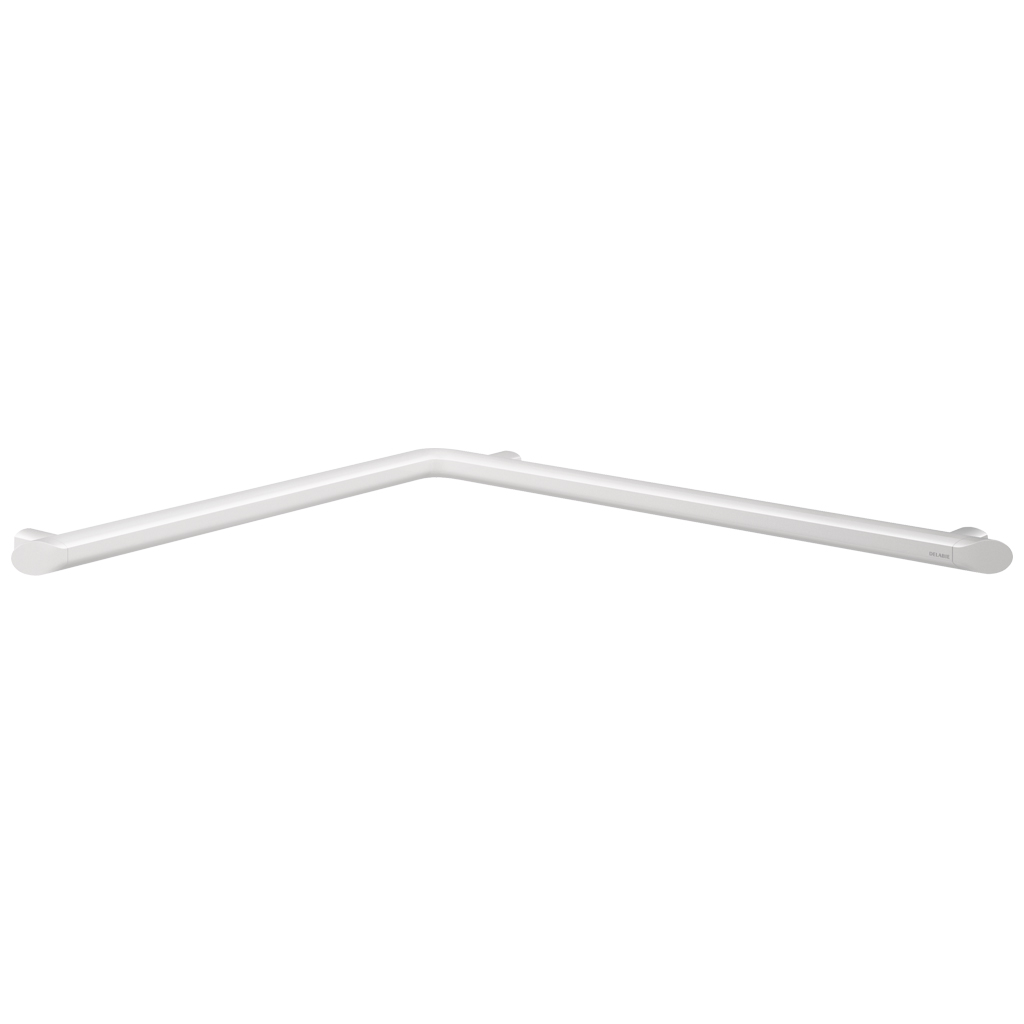

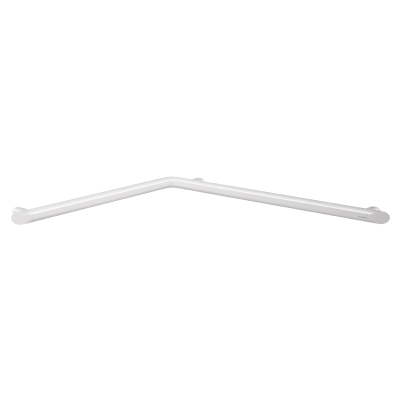

Be-line® corner grab bar 2 walls, white

Ref. 511941W
Matte white powder-coated aluminium
Be-line® corner grab bar 2 walls, white

Presentation

DESCRIPTION

Be-line® corner grab bar 2 walls, white

Ref. 511941W
Be-Line® corner grab bar Ø 35mm for WCs, showers or baths.
Use as a shower rail and to support people with reduced mobility in an upright position.
Helps and secures entry and movement in the shower also with getting in and out of the bath.
In the WC with recessed cistern or cisternless flush system, helps with the transfer from a wheelchair to the toilet seat.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Angled grab bar with concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 695 x 695mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

2024 UK public price excluding VAT: £220.83

ADVANTAGES

Design

Innovative design suitable for all users

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap between bar and wall: space saving

Characteristics

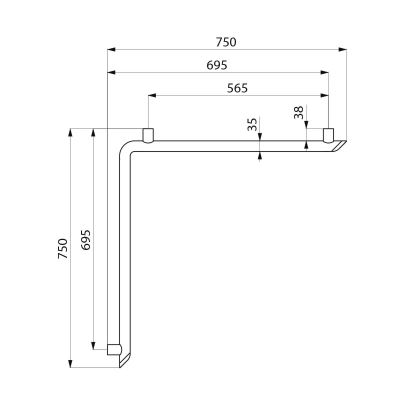

TECHNICAL CHARACTERISTICS

Be-line® corner grab bar 2 walls, white

Ref. 511941W
Length 695mm
Width 695mm
Diameter Ø 35mm
Width to the wall 38mm
Thickness 3mm
Finish Matte white powder-coated aluminium
Certificates Logo CE Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Be-line® corner grab bar 2 walls, white

Ref. 511941W

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Be-line® corner grab bar 2 walls, white

Ref. 511941W
1. 5119FIX
Mounting kit for Be-Line® grab bars

VARIANTS

511941C Metallised anthracite powder-coated aluminium £220.83 excl. VAT
511941BK Matte black powder-coated aluminium £248.98 excl. VAT

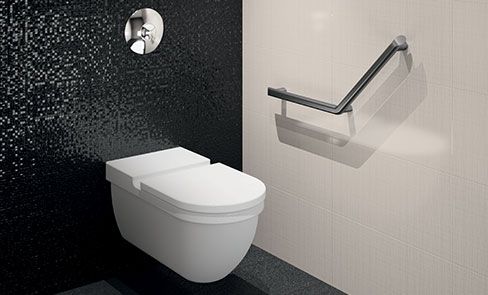

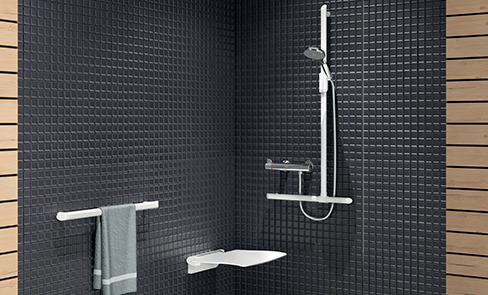

Be-Line®: a complete range of grab bars and shower seats for the elderly or disabled people
