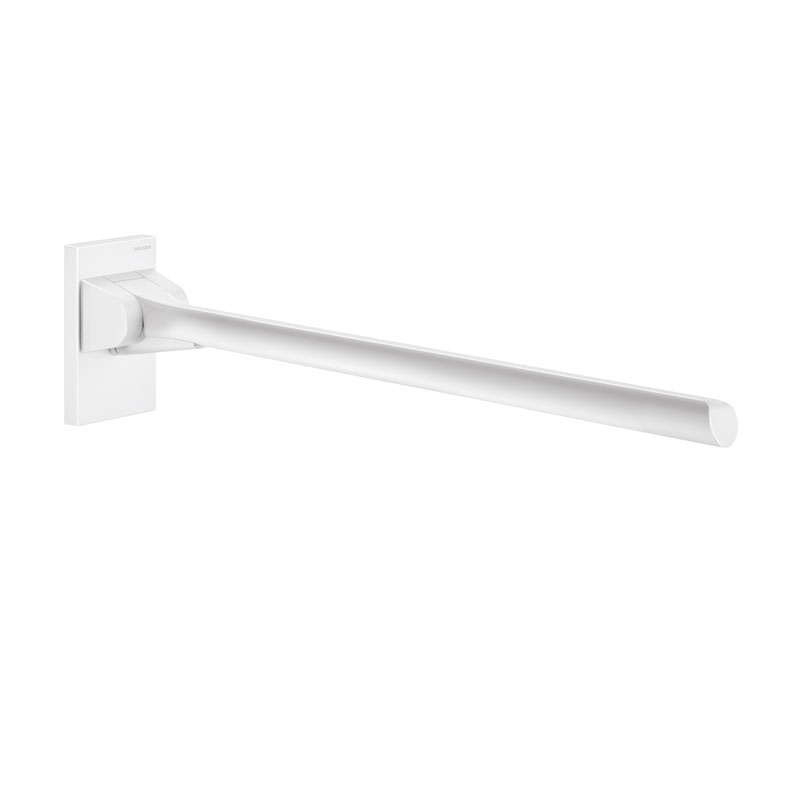

Be-Line drop-down support rail, L. 650mm, white

Ref. 511960W
Powder-coated matte white
Be-Line drop-down support rail, L. 650mm, white

Presentation

DESCRIPTION

Be-Line drop-down support rail, L. 650mm, white

Ref. 511960W
Be-Line® drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of grab bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail with slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rail with 30-year warranty.
CE marked.

2024 UK public price excluding VAT: £334.30

ADVANTAGES

Design

Innovative design suitable for all users

Universel

Removable: easy to unclip

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic flat face prevents rotation

Sécurité

Tested to over 200kg

Characteristics

TECHNICAL CHARACTERISTICS

Be-Line drop-down support rail, L. 650mm, white

Ref. 511960W
Height 210mm, 720mm when raised
Length 650mm
Width 120mm
Diameter Ø 42mm
Finish Powder-coated matte white aluminium
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien rabattable Be-Line® blanc, L.650 mm

Ref. 511960W

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

511960C Metallised anthracite powder-coated aluminium - L.650mm £334.30 excl. VAT
511960BK Matte black powder-coated aluminium - L. 650mm £384.44 excl. VAT
511964C Metallised anthracite powder-coated aluminium - L.850mm £359.05 excl. VAT
511964BK Matte black powder-coated aluminium - L. 850mm £412.99 excl. VAT
511964W Matte white powder-coated aluminium - L.850mm £359.05 excl. VAT
