DESCRIPTION

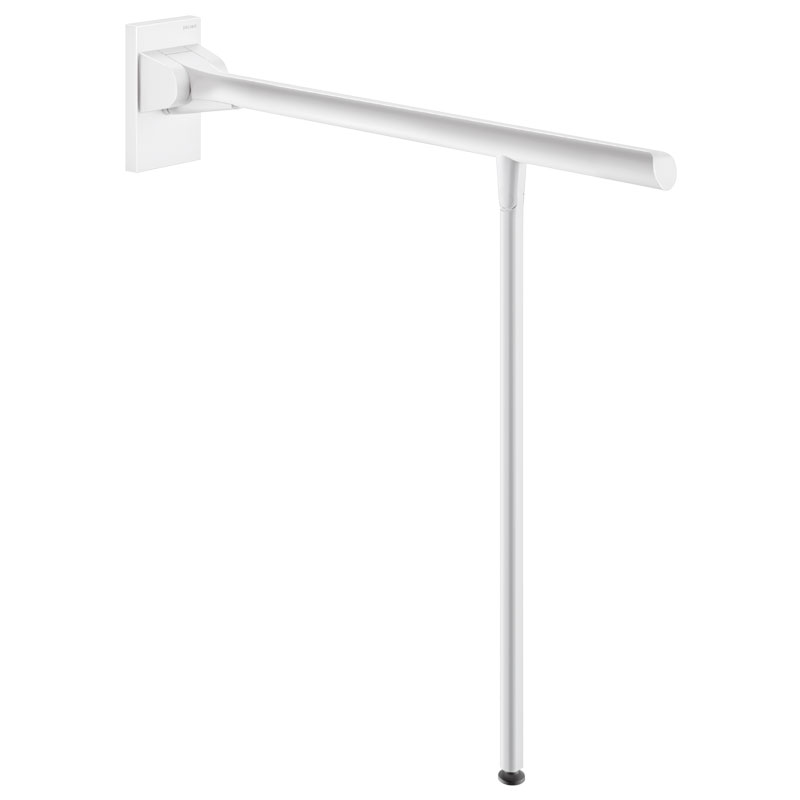

Be-Line drop-down support rail with leg, L. 650mm, white
Ref. 511962WBe-Line drop-down support rail for people with reduced mobility.

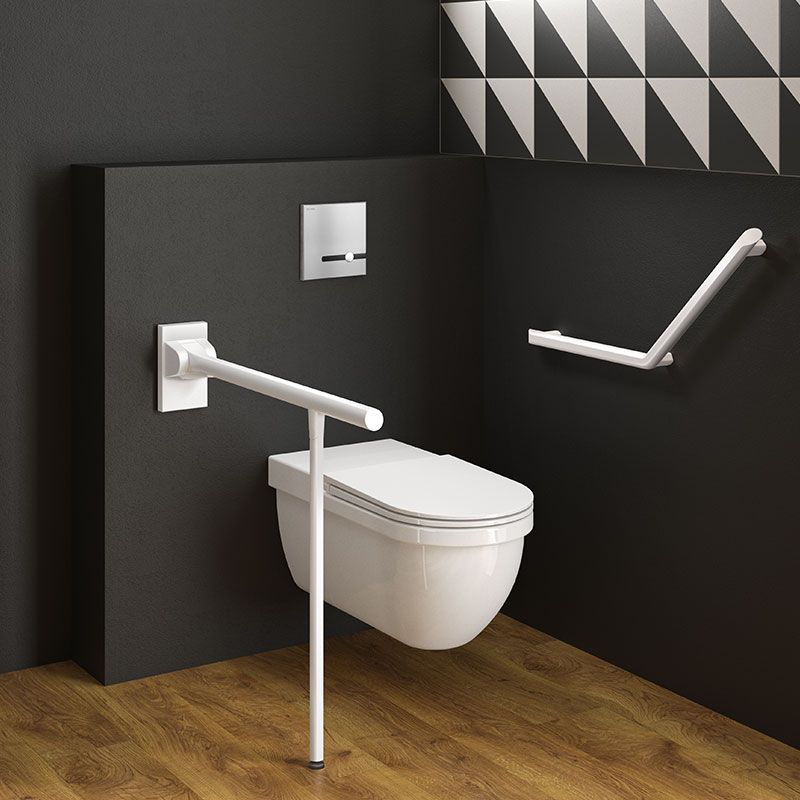

In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.

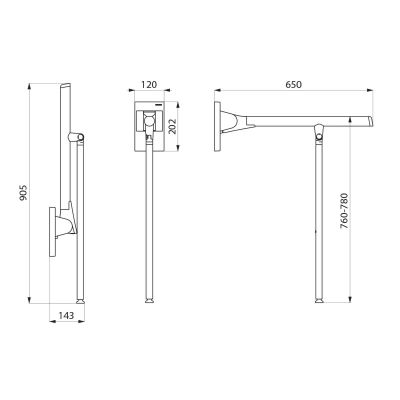

Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rails with 30-year warranty.
CE marked.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rails with 30-year warranty.
CE marked.
2024 UK public price excluding VAT: £398.60
ADVANTAGES
Innovative design suitable for all users
Removable: easy to unclip
Comfort: ergonomic flat face prevents rotation
Tested to over 200kg
TECHNICAL CHARACTERISTICS
Be-Line drop-down support rail with leg, L. 650mm, white
Ref. 511962WHeight | 760-780mm, 905mm when raised |
Length | 650mm |
Width | 120mm |
Diameter | Ø 42mm |
Finish | Powder-coated matte white aluminium |
Certificates | |
Warranty |
VARIANTS
511962C | Metallised anthracite powder-coated aluminium - L.650mm | £398.60 excl. VAT | |
---|---|---|---|
511962BK | Matte black powder-coated aluminium - L. 650mm | £458.46 excl. VAT | |
511963C | Metallised anthracite powder-coated aluminium - L.850mm | £421.57 excl. VAT | |
511963BK | Matte black powder-coated aluminium - L. 850mm | £484.81 excl. VAT | |
511963W | Matte white powder-coated aluminium - L.850mm | £421.57 excl. VAT |
