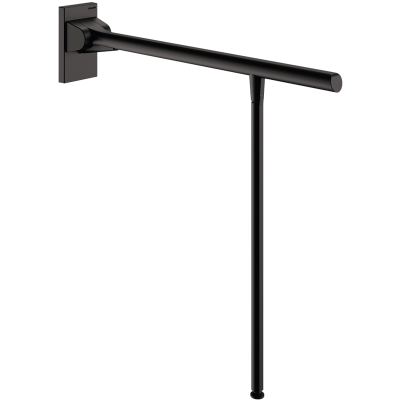

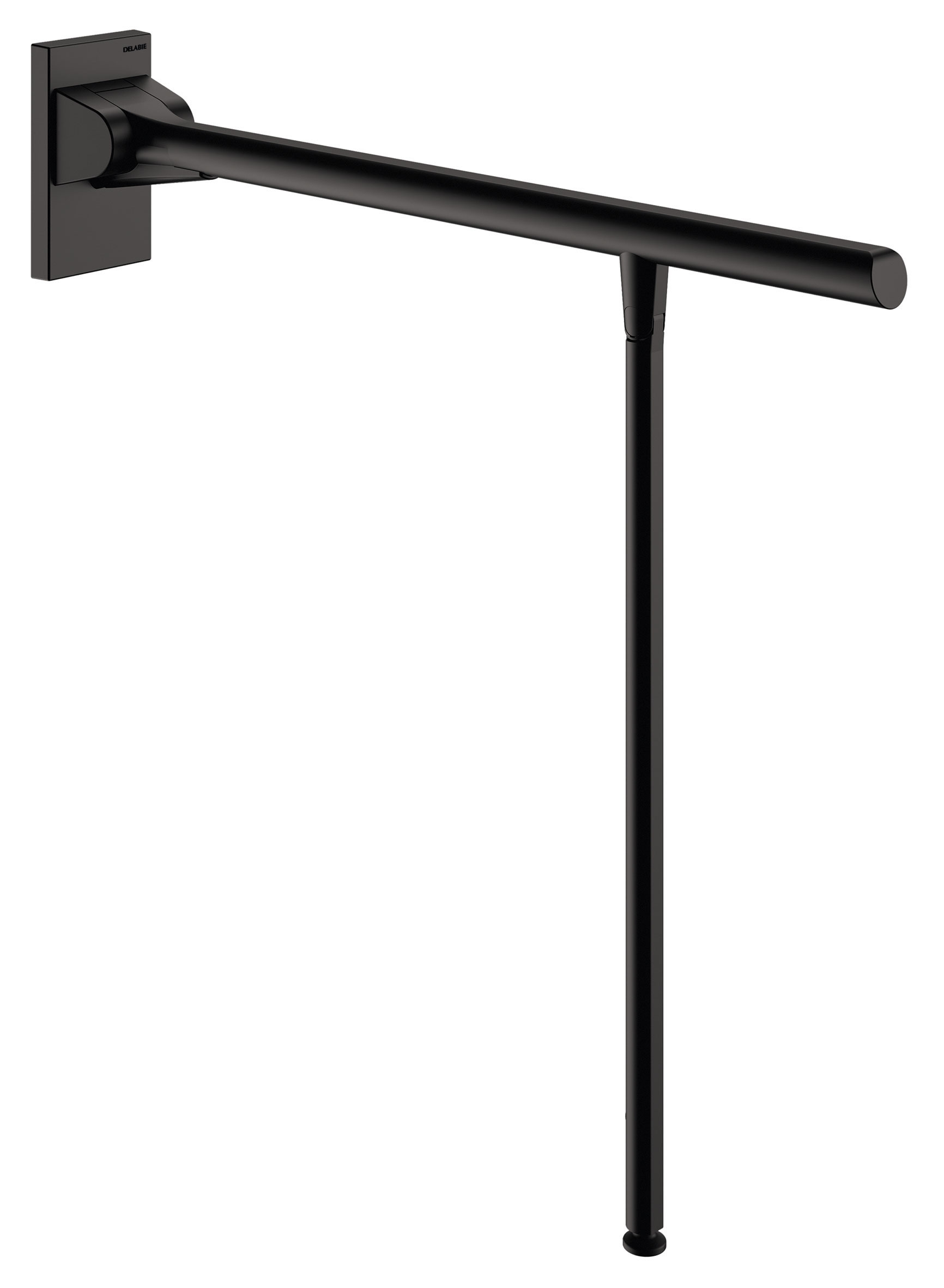

Be-Line drop-down support rail with leg, L. 850mm, matte black

Ref. 511963BK
Matte black powder-coated aluminium
Be-Line drop-down support rail with leg, L. 850mm, matte black

Presentation

DESCRIPTION

Be-Line drop-down support rail with leg, L. 850mm, matte black

Ref. 511963BK
Be-Line® drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.

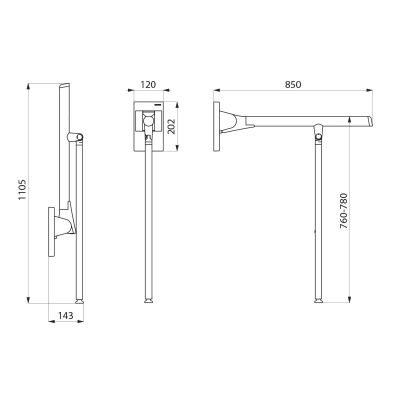

Dimensions: 850 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rail with 30-year warranty.
CE marked.

2024 UK public price excluding VAT: £484.81

ADVANTAGES

Design

Innovative, design-for-all, matte black finish

Universel

Removable: easy to unclip

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic flat face prevents rotation

Sécurité

Tested to over 200kg

Characteristics

TECHNICAL CHARACTERISTICS

Be-Line drop-down support rail with leg, L. 850mm, matte black

Ref. 511963BK
Height 760 - 780mm, 1,105mm when raised
Length 850mm
Width 120mm
Diameter Ø 42mm
Finish Matte black 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Be-Line drop-down support rail with leg, L. 850mm, matte black

Ref. 511963BK

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

511962C Metallised anthracite powder-coated aluminium - L.650mm £398.60 excl. VAT
511962BK Matte black powder-coated aluminium - L. 650mm £458.46 excl. VAT
511962W Matte white powder-coated aluminium - L.650mm £398.60 excl. VAT
511963C Metallised anthracite powder-coated aluminium - L.850mm £421.57 excl. VAT
511963W Matte white powder-coated aluminium - L.850mm £421.57 excl. VAT
