Be-Line® matte black angled grab bar 135° 220 x 220 mm
Ref. 511983BK
Matte black aluminium, 3 fixing points
Matte black aluminium, 3 fixing points
DESCRIPTION

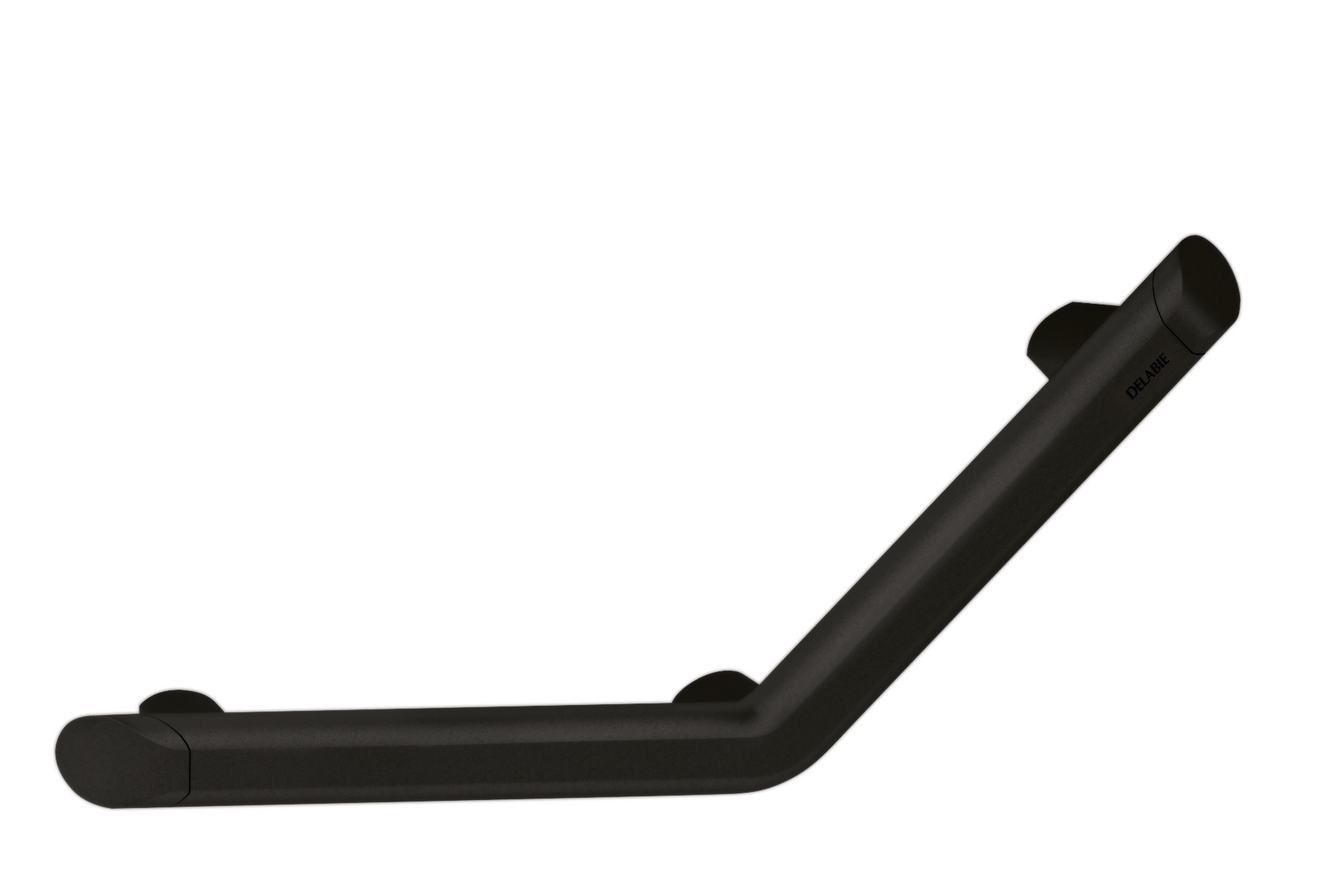

Be-Line® matte black angled grab bar 135° 220 x 220 mm
Ref. 511983BKBe-line® angled grab bar 135°, Ø 35mm, for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish; provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar for toilets with 30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish; provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar for toilets with 30-year warranty. CE marked.
2024 UK public price excluding VAT: £146.69
ADVANTAGES
![Design](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Innovative design suitable for all users
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: ergonomic anti-rotation surface
![Sécurité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
38mm gap between bar and wall: space saving

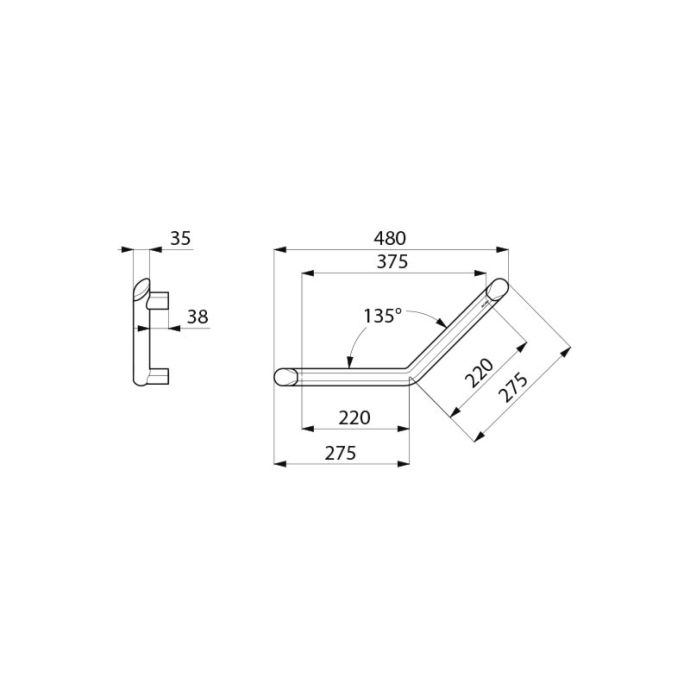

TECHNICAL CHARACTERISTICS
Be-Line® matte black angled grab bar 135° 220 x 220 mm
Ref. 511983BKHeight | 220mm |
Length | 220mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte black powder-coated aluminium |
Certificates |
![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

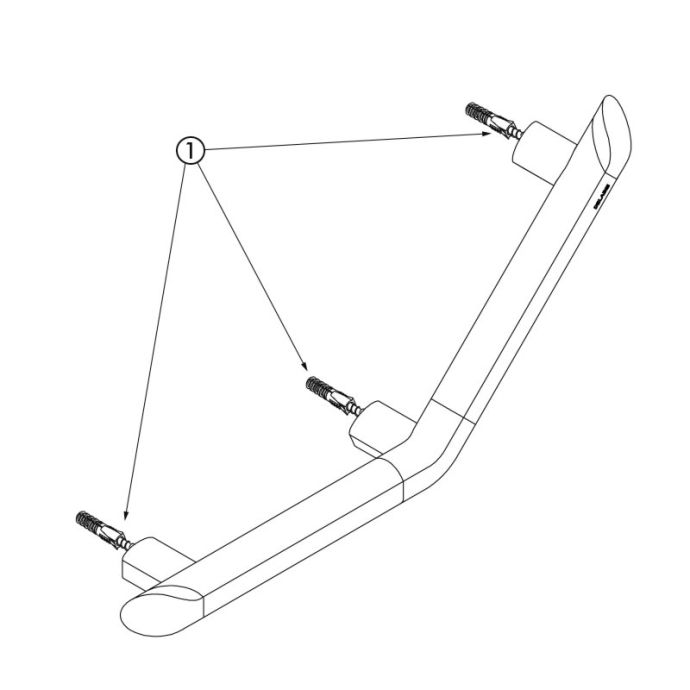

SPARE PARTS
Be-Line® matte black angled grab bar 135° 220 x 220 mm
Ref. 511983BK![](https://www.delabie.co.uk/var/site/storage/images/8/7/9/1/3521978-1-fre-FR/PD_511983BK.jpg)
1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511982BK | Matte black powder-coated aluminium - 400 x 400mm | £165.60 excl. VAT | |
---|---|---|---|
511982C | Metallised anthracite powder-coated aluminium - 400 x 400mm | £144.00 excl. VAT | |
511982W | Matte white powder-coated aluminium - 400 x 400mm | £144.00 excl. VAT | |
511983C | Metallised anthracite powder-coated aluminium - 220 x 220mm | £130.09 excl. VAT | |
511983W | Matte white powder-coated aluminium - 220 x 220mm | £130.09 excl. VAT |
