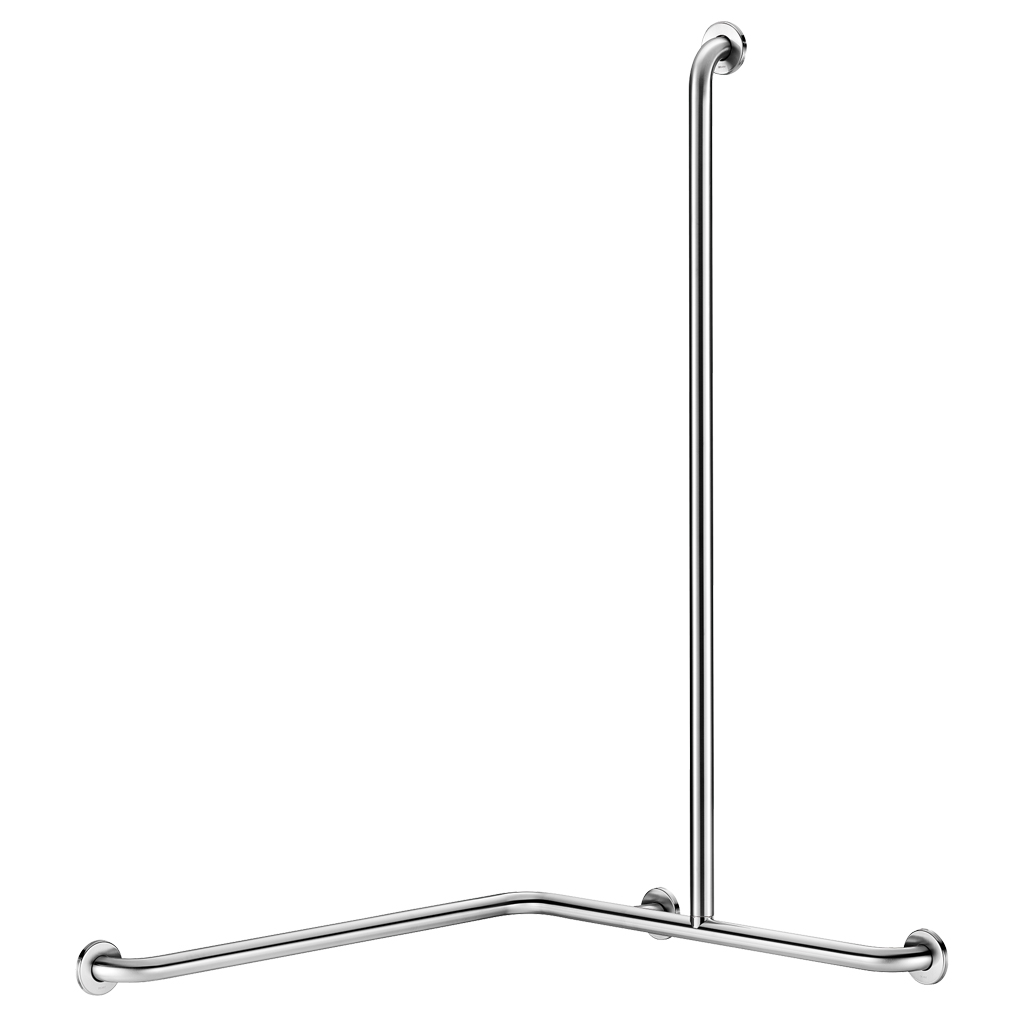

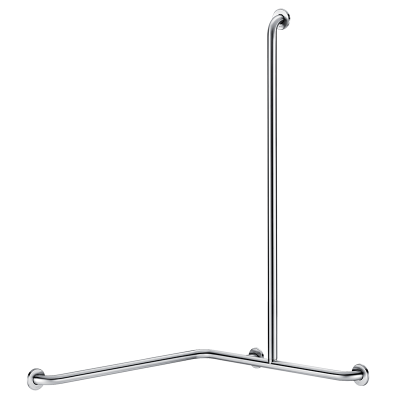

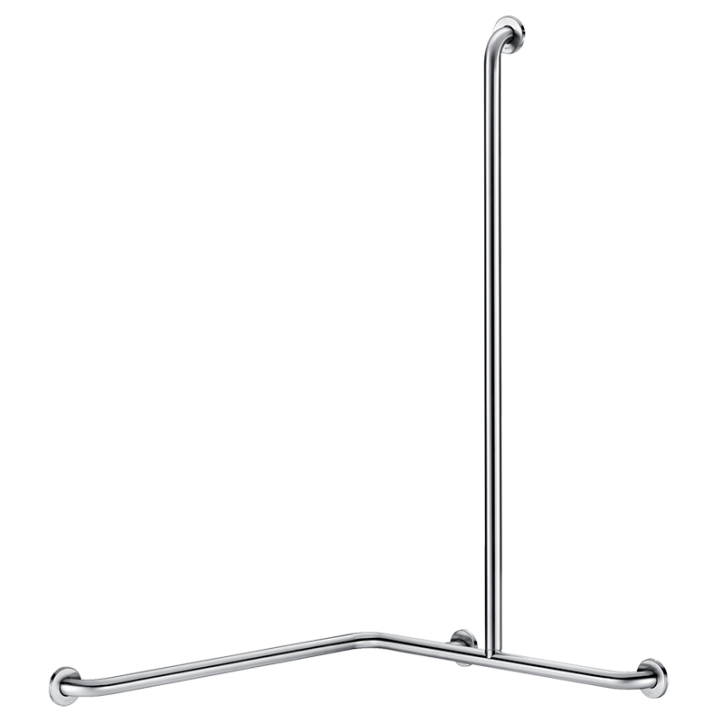

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481DS
UltraSatin polished satin stainless steel, right model
Angled shower grab bar with vertical bar, satin stainless steel

Presentation

DESCRIPTION

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481DS
Angled, two-wall shower grab bar with vertical bar Ø 32mm, for people with reduced mobility.
Right model.
Can support a removable shower seat (order separately).
Can be used as a support bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,150 x 750 x 750mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, Ø 72mm.
304 stainless steel plates and covers.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.

2024 UK public price excluding VAT: £344.12

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraSatin: smooth surface is easy to clean

Characteristics

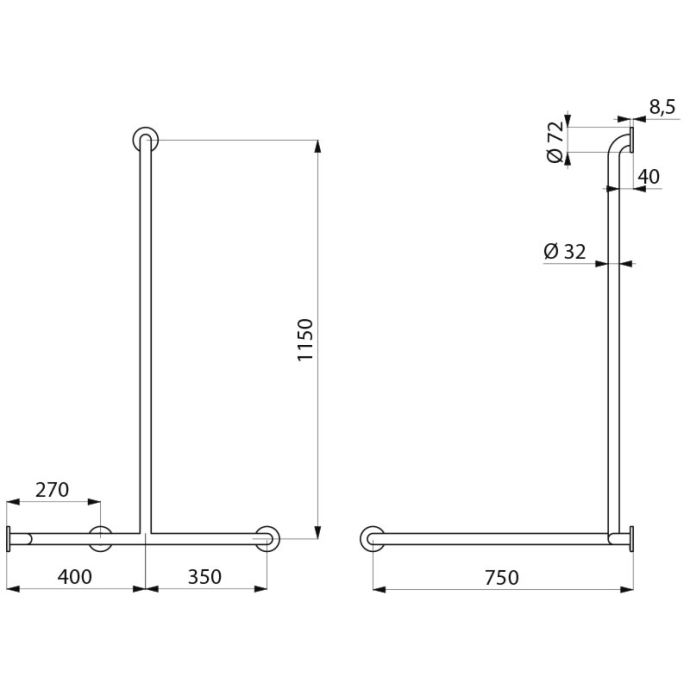

TECHNICAL CHARACTERISTICS

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481DS
Height 1,150mm
Length 750mm
Width 750mm
Diameter Ø 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de douche d'angle avec remontée verticale Inox satiné

Ref. 5481DS

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5481P Bright polished stainless steel UltraPolish - Sliding vertical riser rail £389.88 excl. VAT
5481S Polished satin stainless steel UltraSatin - Sliding vertical riser rail £389.88 excl. VAT
5481GP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the left £344.12 excl. VAT
5481DP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the right £344.12 excl. VAT
5481GS Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the left £344.12 excl. VAT
