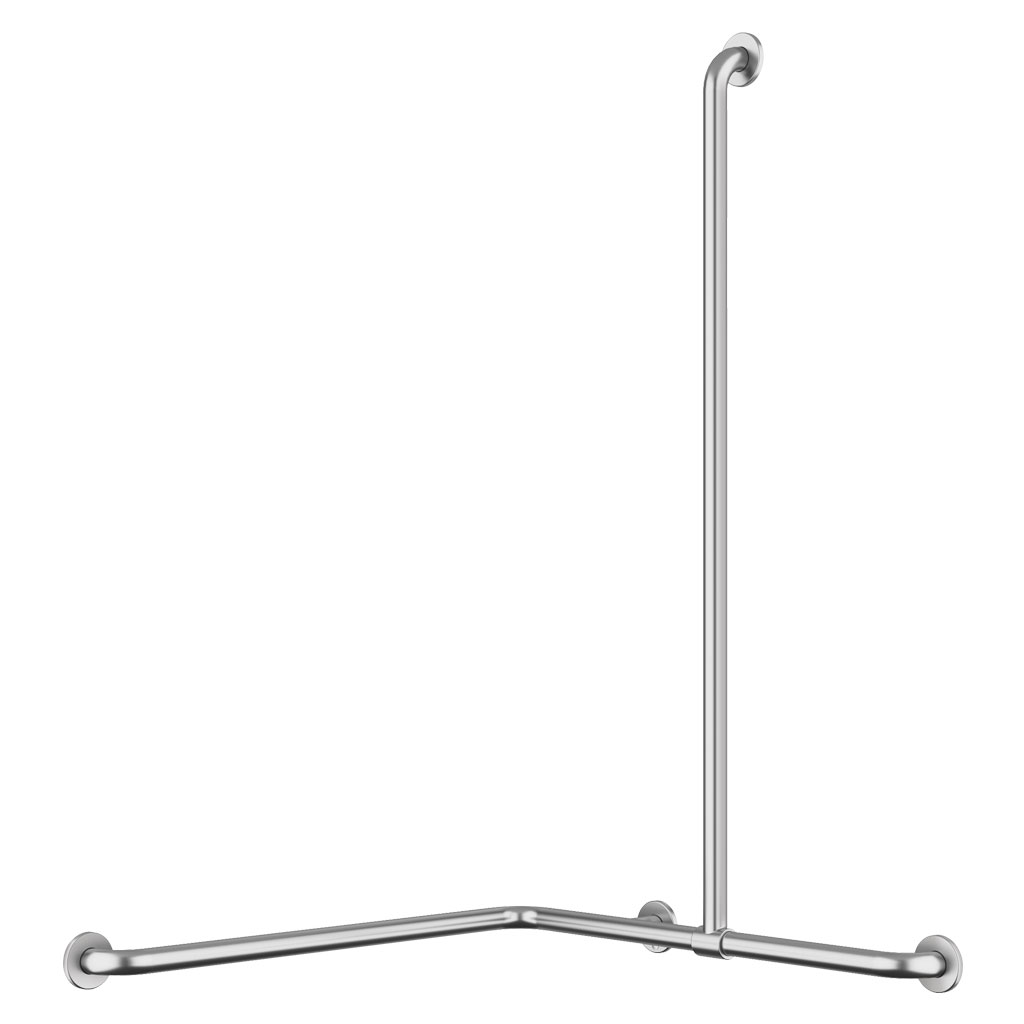

Corner grab bar with sliding vertical bar, satin stainless steel

Ref. 5481S
UltraSatin polished satin stainless steel
Corner grab bar with sliding vertical bar, satin stainless steel

Presentation

DESCRIPTION

Corner grab bar with sliding vertical bar, satin stainless steel

Ref. 5481S
Two-wall shower grab bar with sliding vertical bar Ø 32mm, for people with reduced mobility.

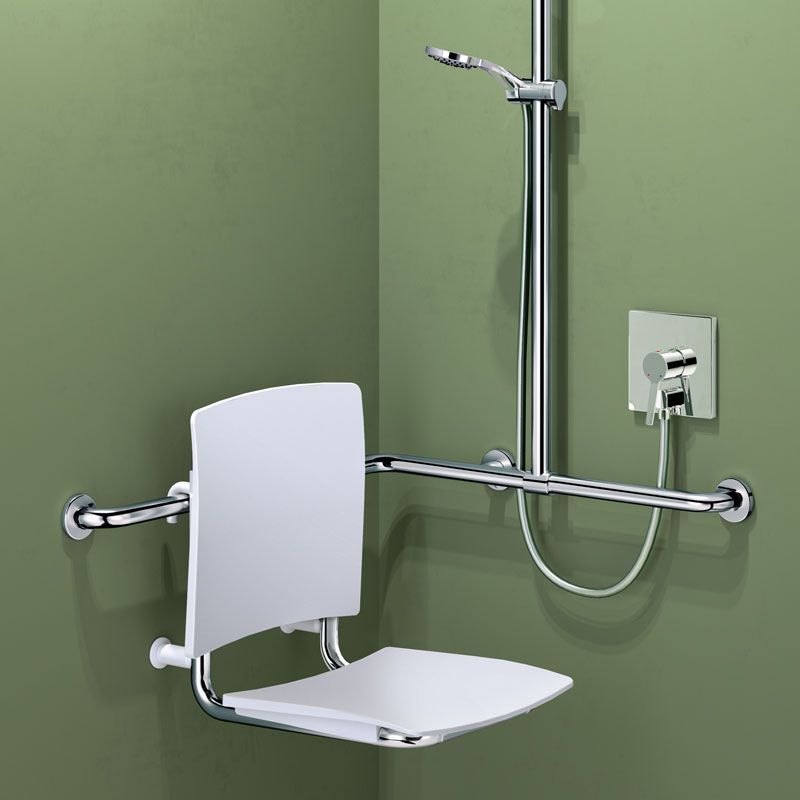

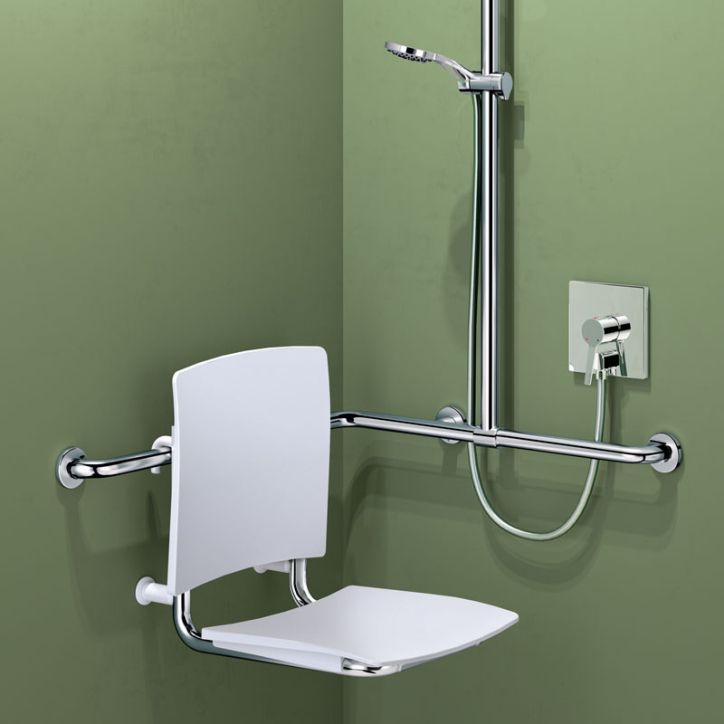

Can support a removable shower seat (order separately).
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Dimensions: 1,160 x 750 x 750mm.
Can be mounted with vertical riser rail on the left or right.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings secured to wall by a 3-hole fixing plate, Ø 72mm.
Fixing and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

2024 UK public price excluding VAT: £389.88

ADVANTAGES

Maintenance aisée - Installation aisée

Upright position can be adjusted

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: limits bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Characteristics

TECHNICAL CHARACTERISTICS

Corner grab bar with sliding vertical bar, satin stainless steel

Ref. 5481S

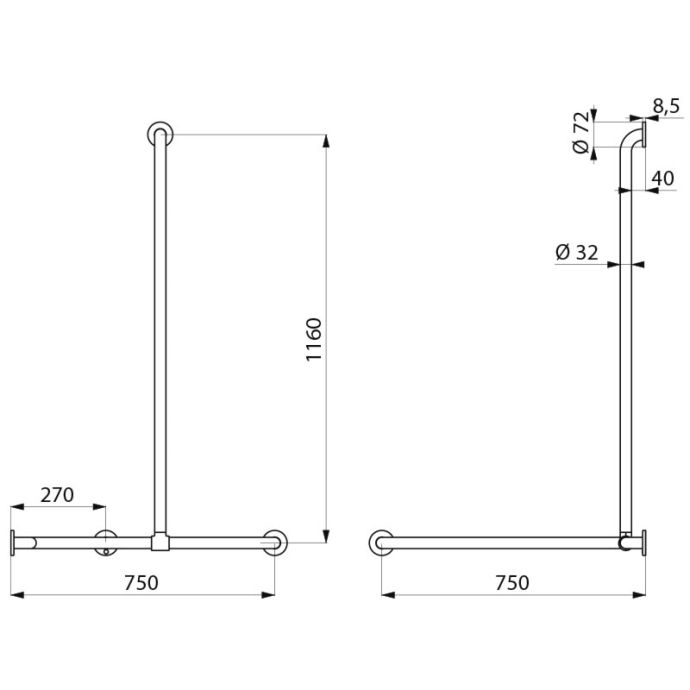

Height 1160mm
Length 750mm
Width 750mm
Diameter Ø 32mm
Width to the wall 40mm
Finish UltraSatin polished satin 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Corner grab bar with sliding vertical bar, satin stainless steel

Ref. 5481S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5481P Bright polished stainless steel UltraPolish - Sliding vertical riser rail £389.88 excl. VAT
5481GP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the left £344.12 excl. VAT
5481DP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the right £344.12 excl. VAT
5481GS Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the left £344.12 excl. VAT
5481DS Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the right £344.12 excl. VAT
