Electronic soap dispenser unit for installation behind the mirror
Ref. 510203SD
Liquid soap, foam soap or hydroalcoholic gel dispenser
Liquid soap, foam soap or hydroalcoholic gel dispenser
DESCRIPTION

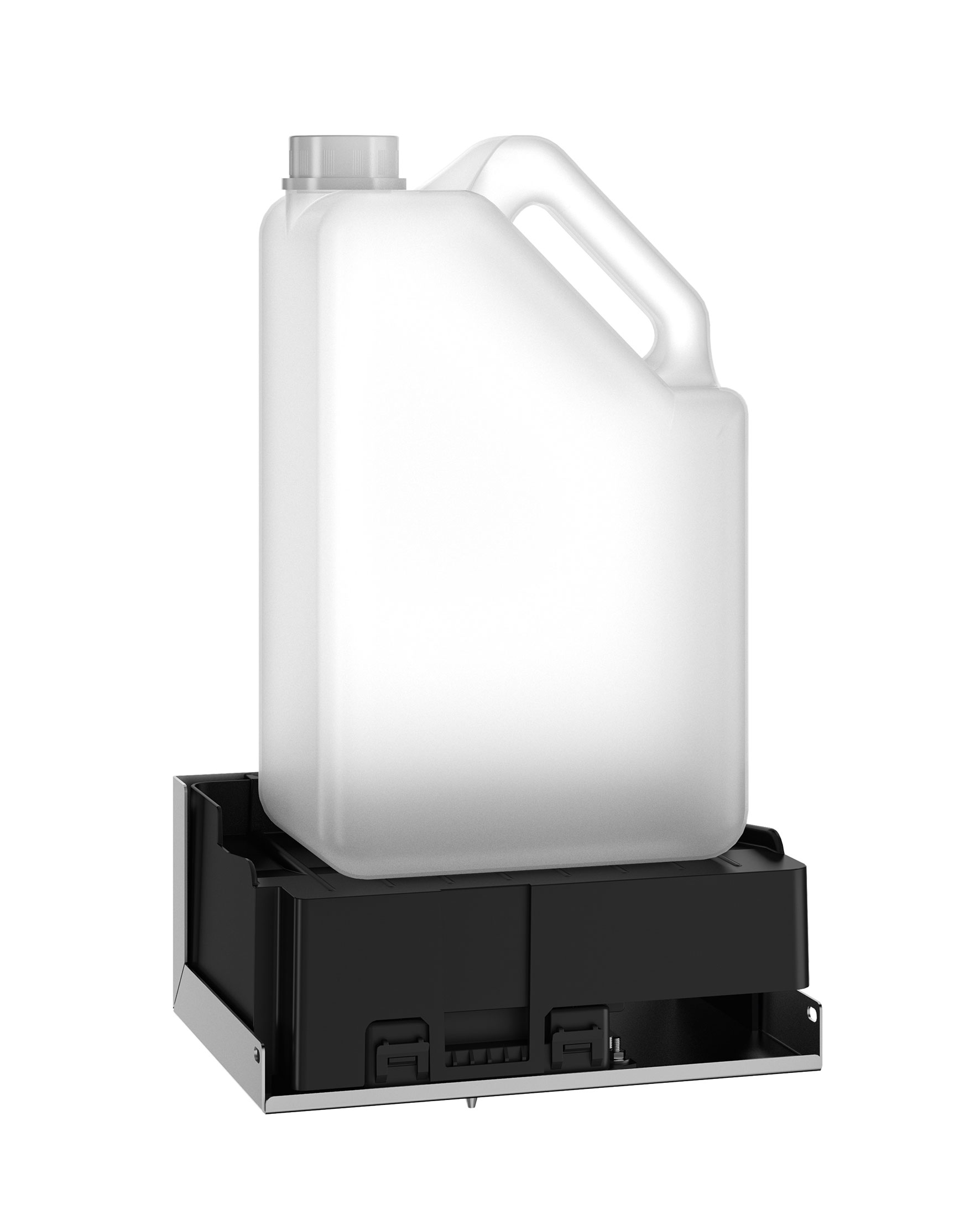

Electronic soap dispenser unit for installation behind the mirror
Ref. 510203SDElectronic soap dispenser unit for installation behind a mirror or cabinet.
Touch-free for improved hygiene: soap dispenser is activated automatically when hands are detected by infrared sensor.
- Easy to install: fitted into a cabinet. Fixings on the sides and the back.
- 304 stainless steel support, 1.2 mm thick.
- Mains supply with 100-240V / 6V 50-60 Hz. transformer.
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Supplied with self-adhesive pictogram to indicate the location of the soap dispenser on the mirror/cabinet.
Anti-blocking: stops automatically if used continuously.
Dimensions: 230 x 177 x 376mm.
Weight: 1.6 kg.
30-year warranty.
CE.
Touch-free for improved hygiene: soap dispenser is activated automatically when hands are detected by infrared sensor.
- Easy to install: fitted into a cabinet. Fixings on the sides and the back.
- 304 stainless steel support, 1.2 mm thick.
- Mains supply with 100-240V / 6V 50-60 Hz. transformer.
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Supplied with self-adhesive pictogram to indicate the location of the soap dispenser on the mirror/cabinet.
Anti-blocking: stops automatically if used continuously.
Dimensions: 230 x 177 x 376mm.
Weight: 1.6 kg.
30-year warranty.
CE.
2024 UK public price excluding VAT: £366.44
ADVANTAGES
Easy installation into a cabinet
Hygiene: touch-free
Liquid or foam soap or gel dispenser
No waste dose dispenser
TECHNICAL CHARACTERISTICS
Electronic soap dispenser unit for installation behind the mirror
Ref. 510203SDSupply | Mains supply with 100-240V / 6V 50-60 Hz transformer |
Technology | Electronic |
Height | 376mm |
Depth | 177mm |
Width | 230mm |
Thickness | 1.2mm thick support |
Finish | 304 stainless steel support |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Electronic soap dispenser unit for installation behind the mirror
Ref. 510203SD1. | 490240 |
|
Power supply |
2. | 222429 |
|
Service key |
