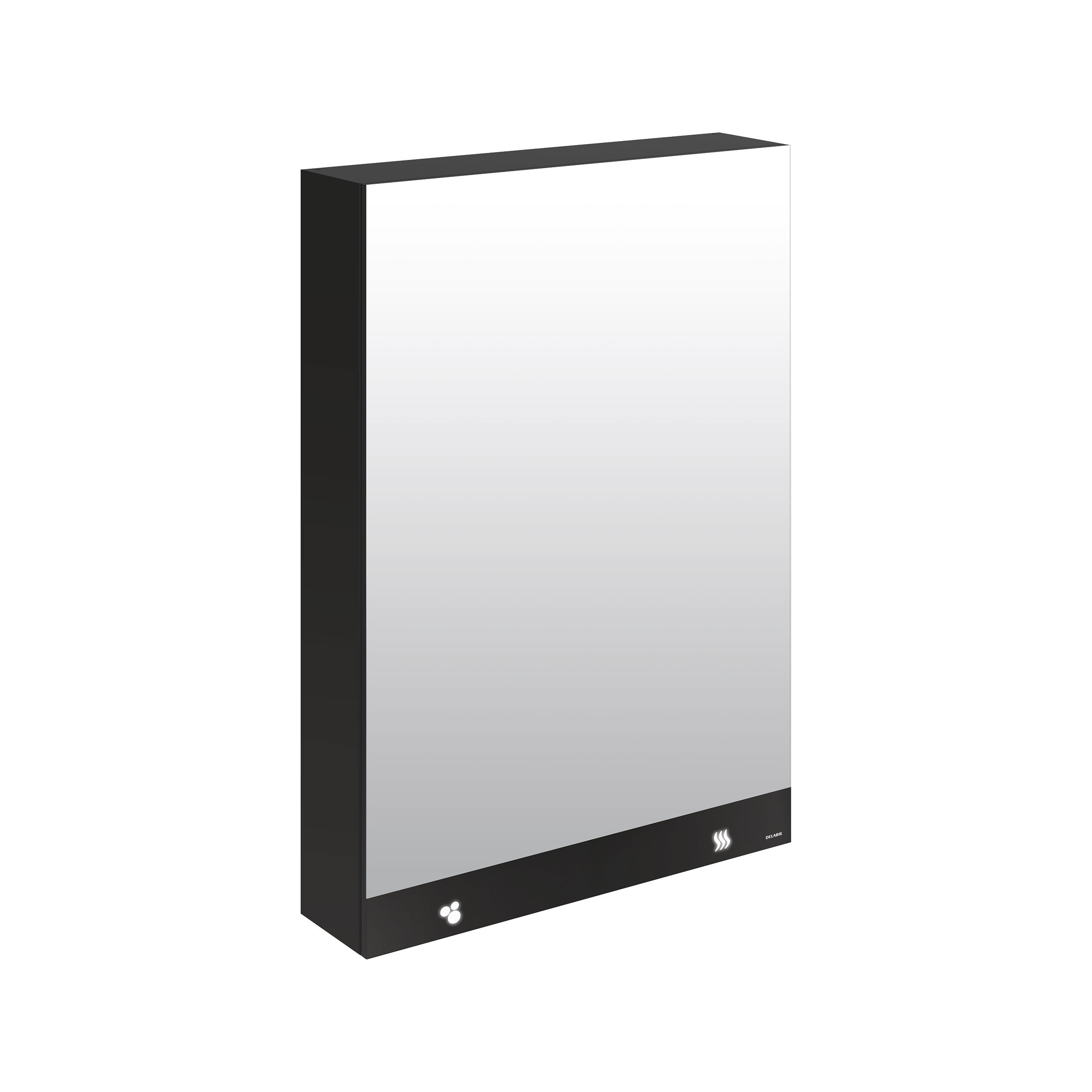

Mirror cabinet with 3 functions

Ref. 510207
Mirror, hand dryer and electronic soap dispenser
Mirror cabinet with 3 functions

Presentation

DESCRIPTION

Mirror cabinet with 3 functions

Ref. 510207
Mirror cabinet with 3 functions: mirror, electronic soap dispenser and electrical hand dryer.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Air-pulse hand dryer:
- High-speed.
- Pulsed air at 360km/h. Airflow: 36 l/second..
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 600 x 223 x 1,000mm.
Weight: 29kg.
Mirror cabinet with 30-year warranty.
CE marked.

2024 UK public price excluding VAT: £1,706.71

ADVANTAGES

Universel

3 functions

Design

Design: matte black and 304 st. steel finish

Sans contact manuel

Hygiene: touch-free

Secteur

One single electrical supply for all elements

Characteristics

TECHNICAL CHARACTERISTICS

Mirror cabinet with 3 functions

Ref. 510207
Supply Mains: 230V / 50-60Hz
Technology Electonic
Height 1,000mm
Depth 223mm
Width 600mm
Thickness Glass mirror: 4mm
Finish Matte black melamine and 304 stainless steel
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mirror cabinet with 3 functions

Ref. 510207

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Mirror cabinet with 3 functions

Ref. 510207
1. 222429
Service key
2. 512BC
Electronic control unit
3. SER5102V
Lock with key

VARIANTS

510209 With paper towel dispenser - 600mm £1,425.60 excl. VAT
