DESCRIPTION

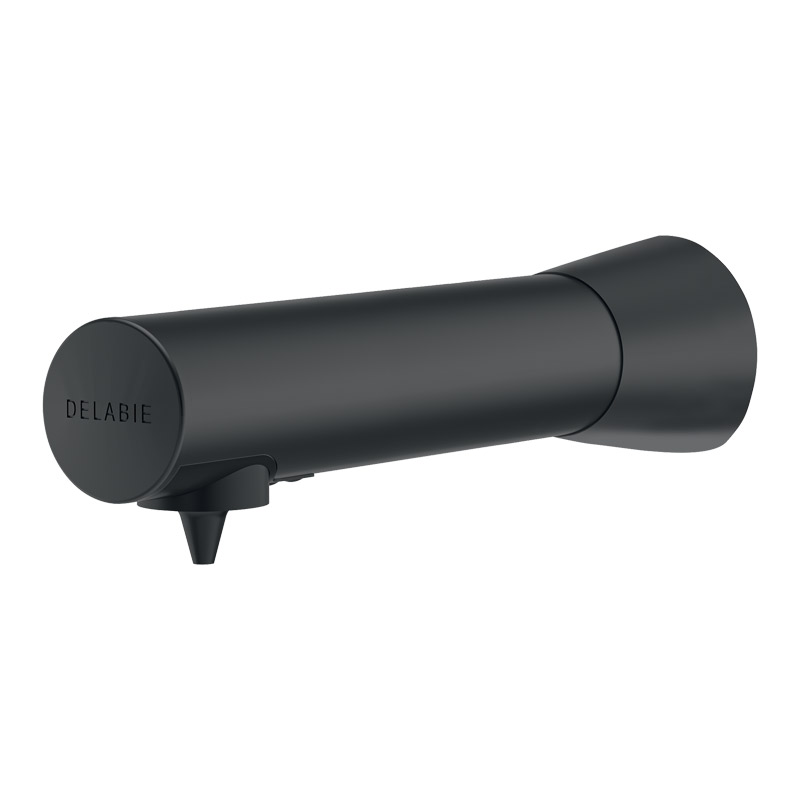

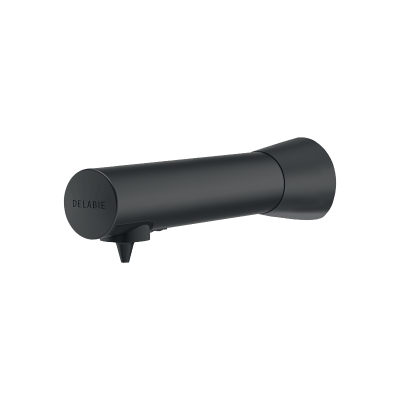

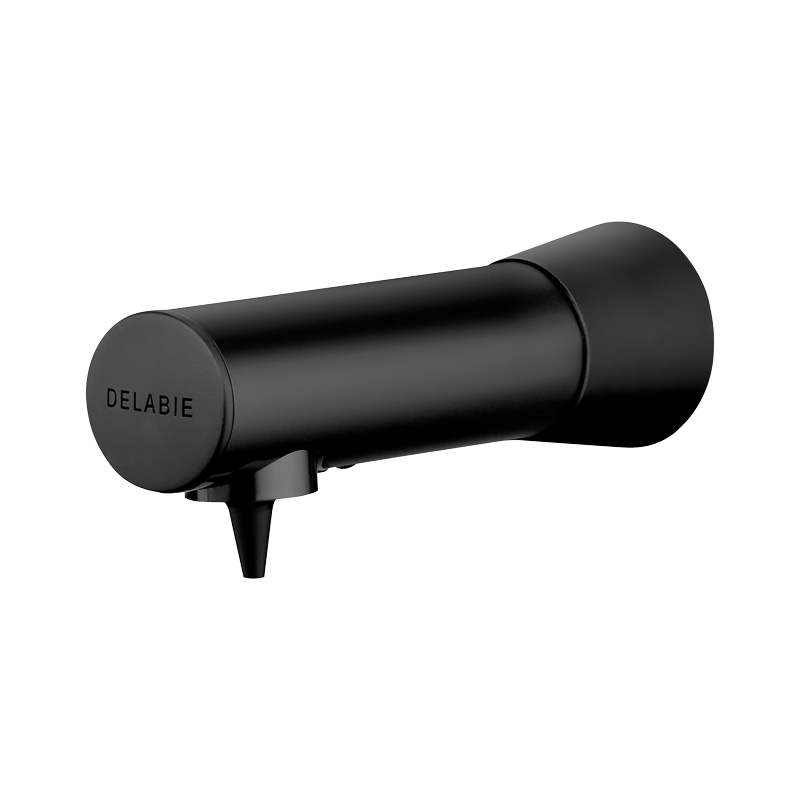

BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111BKWall-mounted electronic soap dispenser.
Liquid or foam soap dispenser.
Vandal-resistant model for cross wall installation for walls up to 110mm.
No manual contact: infrared cell detects hands automatically.
Matte black 304 stainless steel spout.
No waste pump dispenser.
Separate electronic unit and removable tank for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with flexible tube 1.20m for remote tanks.
30-year warranty.
CE marked.
Liquid or foam soap dispenser.
Vandal-resistant model for cross wall installation for walls up to 110mm.
No manual contact: infrared cell detects hands automatically.
Matte black 304 stainless steel spout.
No waste pump dispenser.
Separate electronic unit and removable tank for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with flexible tube 1.20m for remote tanks.
30-year warranty.
CE marked.
2024 UK public price excluding VAT: £374.84
ADVANTAGES
Total hygiene: no manual contact
Comfort: automatic soap dispenser
No waste pump dispenser
Liquid or foam soap

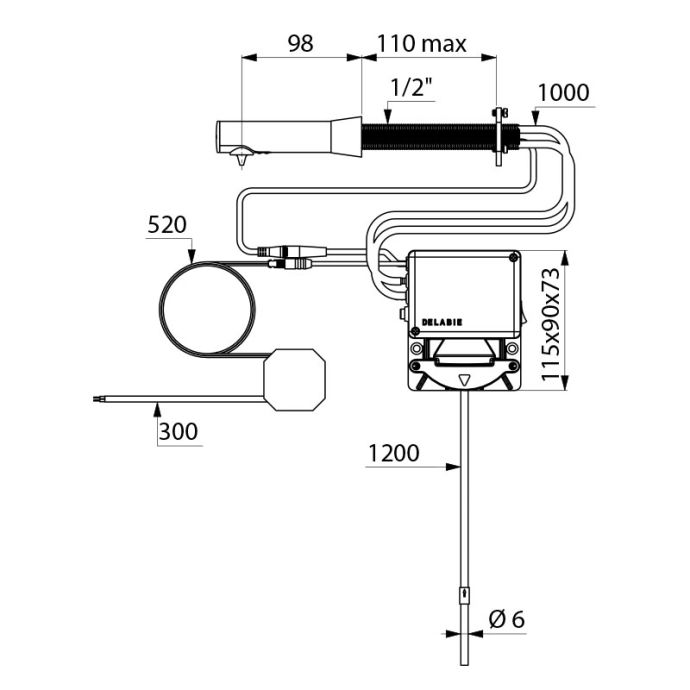

TECHNICAL CHARACTERISTICS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111BKSupply | Mains supply 230/6 V |
Connector | 1/2" |
Technology | Infrared sensor |
Height | 115mm (electronic unit) |
Length | 115mm |
Spout length | 98mm |
Finish | Matte black 304 stainless steel |
Certificates | |
Warranty | |
Repairability |
Spare parts

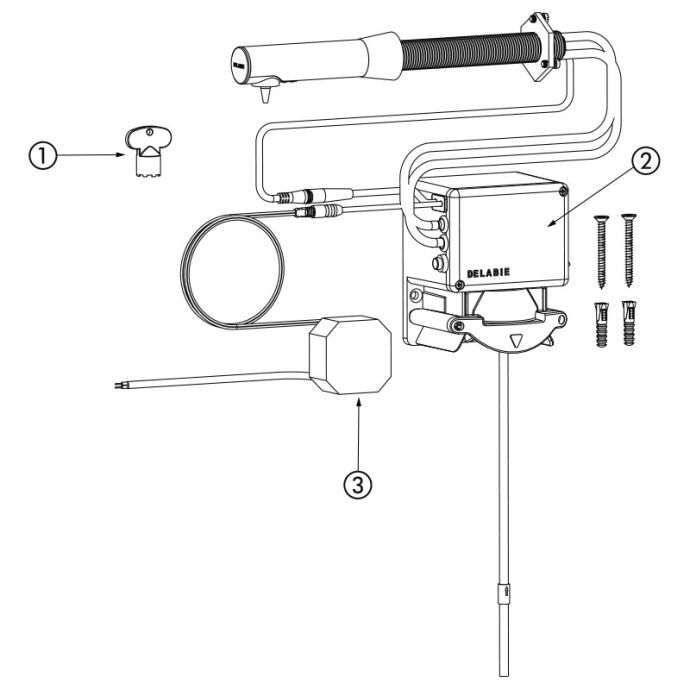

SPARE PARTS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111BK1. | 222429 |
|
Service key |
2. | 512BC |
|
Electronic control unit |
3. | 490240 |
|
Power supply |
VARIANTS
512051BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | £344.23 excl. VAT | |
---|---|---|---|
512051P | With 1L tank - Chrome-plated 304 stainless steel | £312.94 excl. VAT | |
512051S | With 1 litre tank - satin finish 304 stainless steel | £303.81 excl. VAT | |
512151BK | With 1.20m tube for remote tank - Black powder-coated stainless steel | £344.23 excl. VAT | |
512111P | Cross wall - 1.20m tube for remote tank - Chrome-plated | £330.85 excl. VAT |
VARIANTS
512051BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | £344.23 excl. VAT | |
---|---|---|---|
512051P | With 1L tank - Chrome-plated 304 stainless steel | £312.94 excl. VAT | |
512051S | With 1 litre tank - satin finish 304 stainless steel | £303.81 excl. VAT | |
512151BK | With 1.20m tube for remote tank - Black powder-coated stainless steel | £344.23 excl. VAT | |
512111P | Cross wall - 1.20m tube for remote tank - Chrome-plated | £330.85 excl. VAT |
