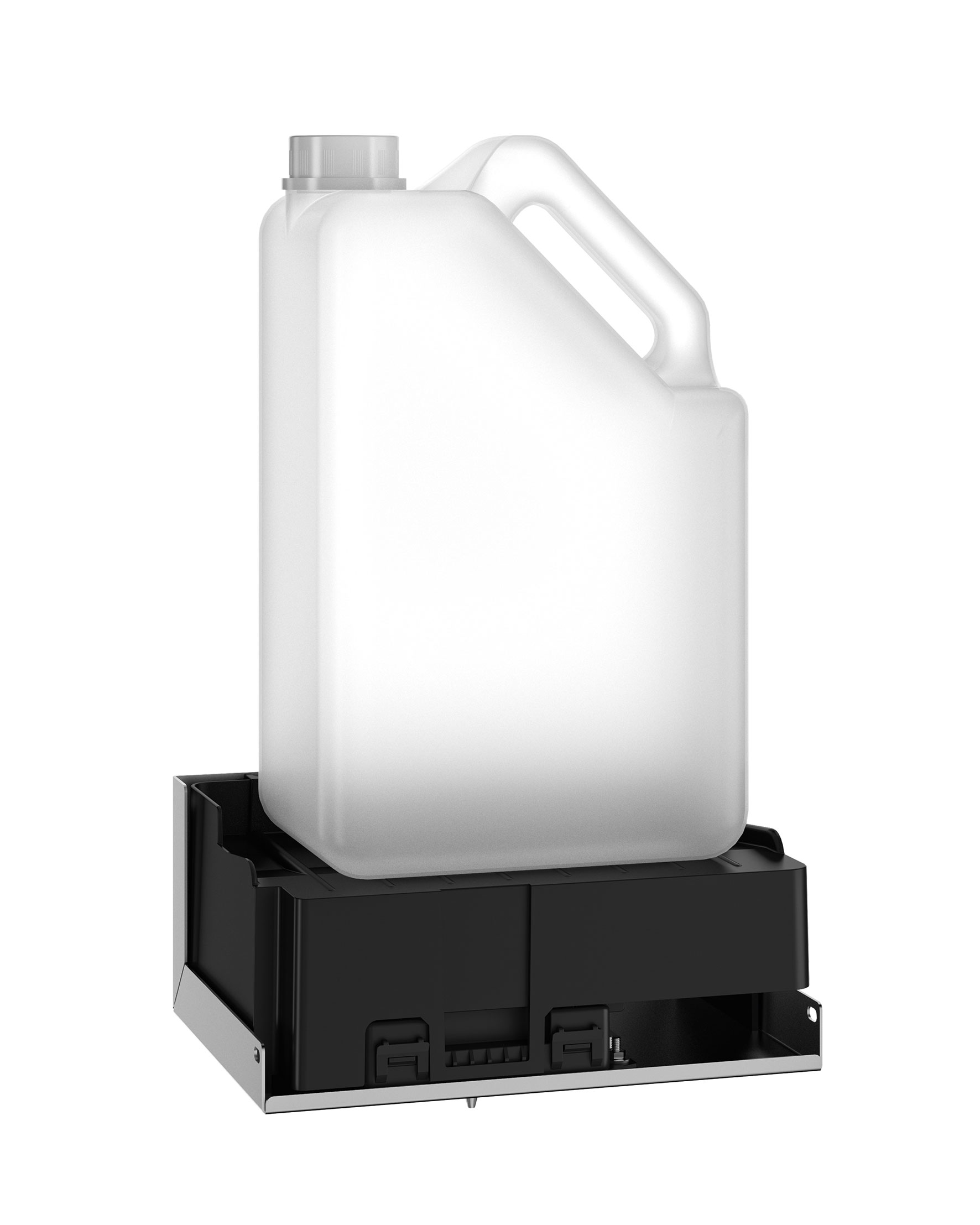

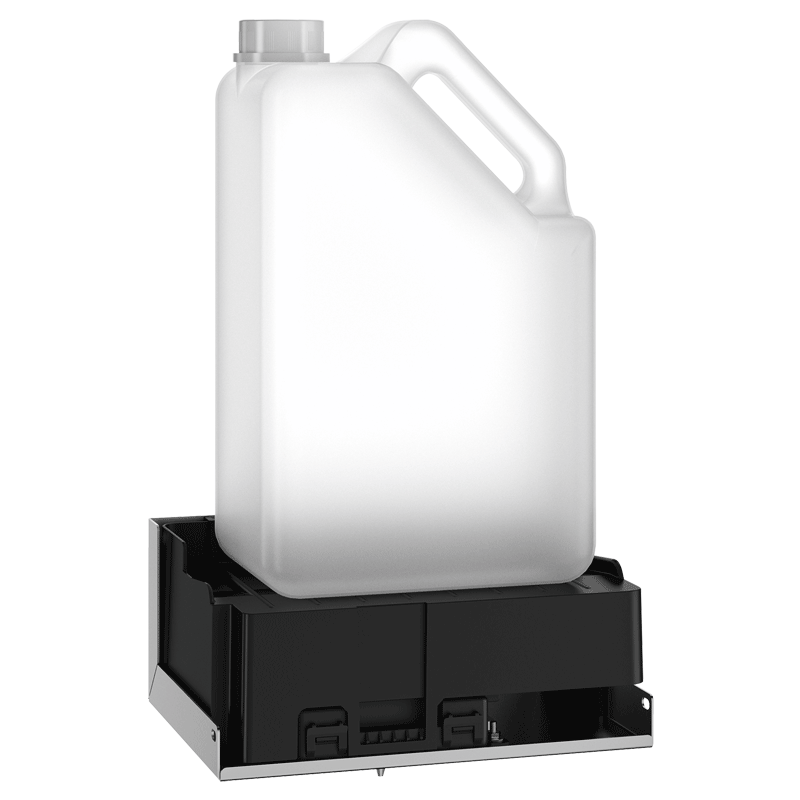

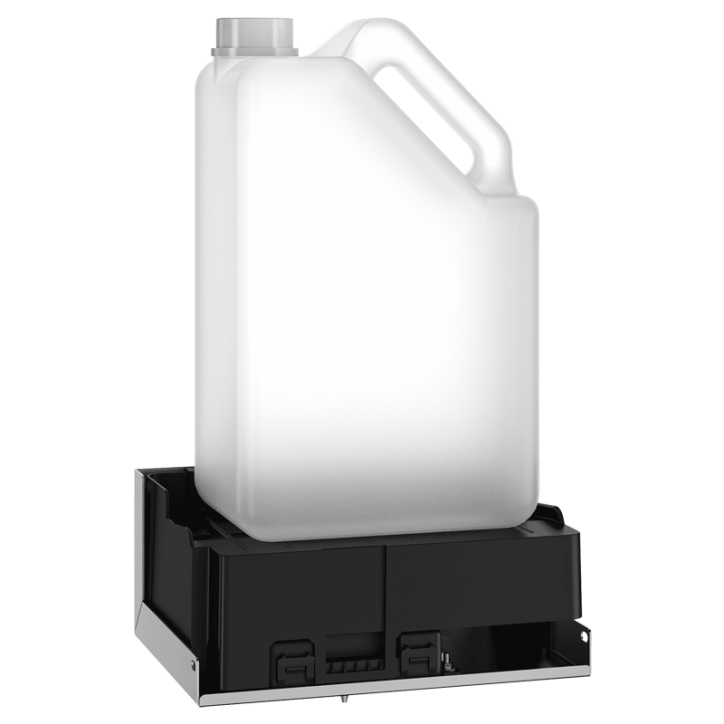

Electronic soap dispenser unit for installation behind the mirror

Ref. 510203SD
Liquid soap, foam soap or hydroalcoholic gel dispenser
Electronic soap dispenser unit for installation behind the mirror

Presentation

DESCRIPTION

Electronic soap dispenser unit for installation behind the mirror

Ref. 510203SD
Electronic soap dispenser unit for installation behind a mirror or cabinet.
Touch-free for improved hygiene: soap dispenser is activated automatically when hands are detected by infrared sensor.
- Easy to install: fitted into a cabinet. Fixings on the sides and the back.
- 304 stainless steel support, 1.2 mm thick.
- Mains supply with 100-240V / 6V 50-60 Hz. transformer.
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Supplied with self-adhesive pictogram to indicate the location of the soap dispenser on the mirror/cabinet.
Anti-blocking: stops automatically if used continuously.

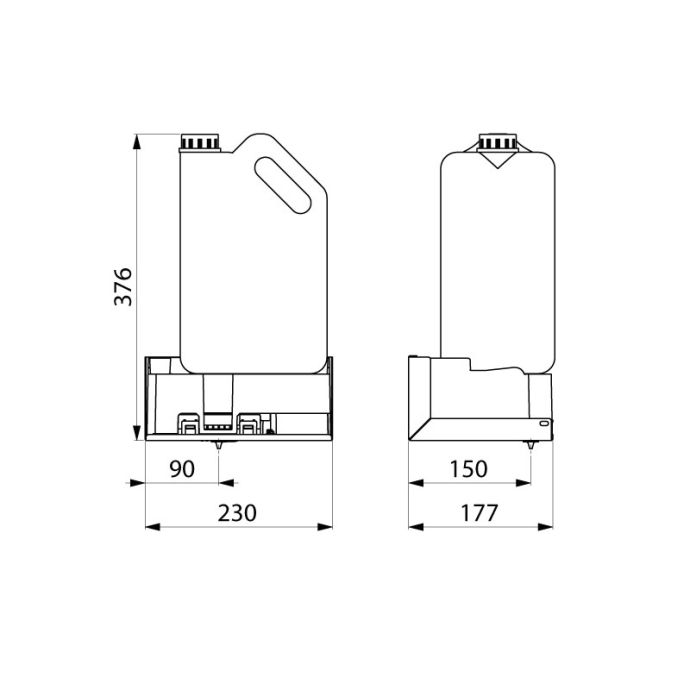

Dimensions: 230 x 177 x 376mm.
Weight: 1.6 kg.
30-year warranty.
CE.

2024 UK public price excluding VAT: £366.44

ADVANTAGES

Maintenance aisée - Installation aisée

Easy installation into a cabinet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: touch-free

Universel

Liquid or foam soap or gel dispenser

Economie d'eau

No waste dose dispenser

Characteristics

TECHNICAL CHARACTERISTICS

Electronic soap dispenser unit for installation behind the mirror

Ref. 510203SD
Supply Mains supply with 100-240V / 6V 50-60 Hz transformer
Technology Electronic
Height 376mm
Depth 177mm
Width 230mm
Thickness 1.2mm thick support
Finish 304 stainless steel support
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Electronic soap dispenser unit for installation behind the mirror

Ref. 510203SD

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

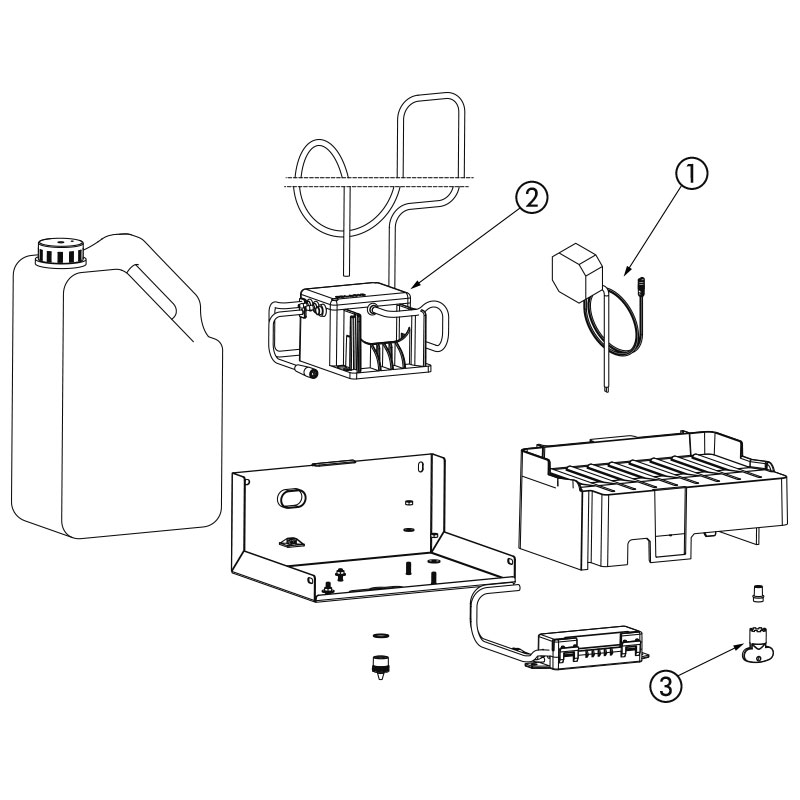

SPARE PARTS

Electronic soap dispenser unit for installation behind the mirror

Ref. 510203SD
1. 490240
Power supply
2. 222429
Service key
