DESCRIPTION

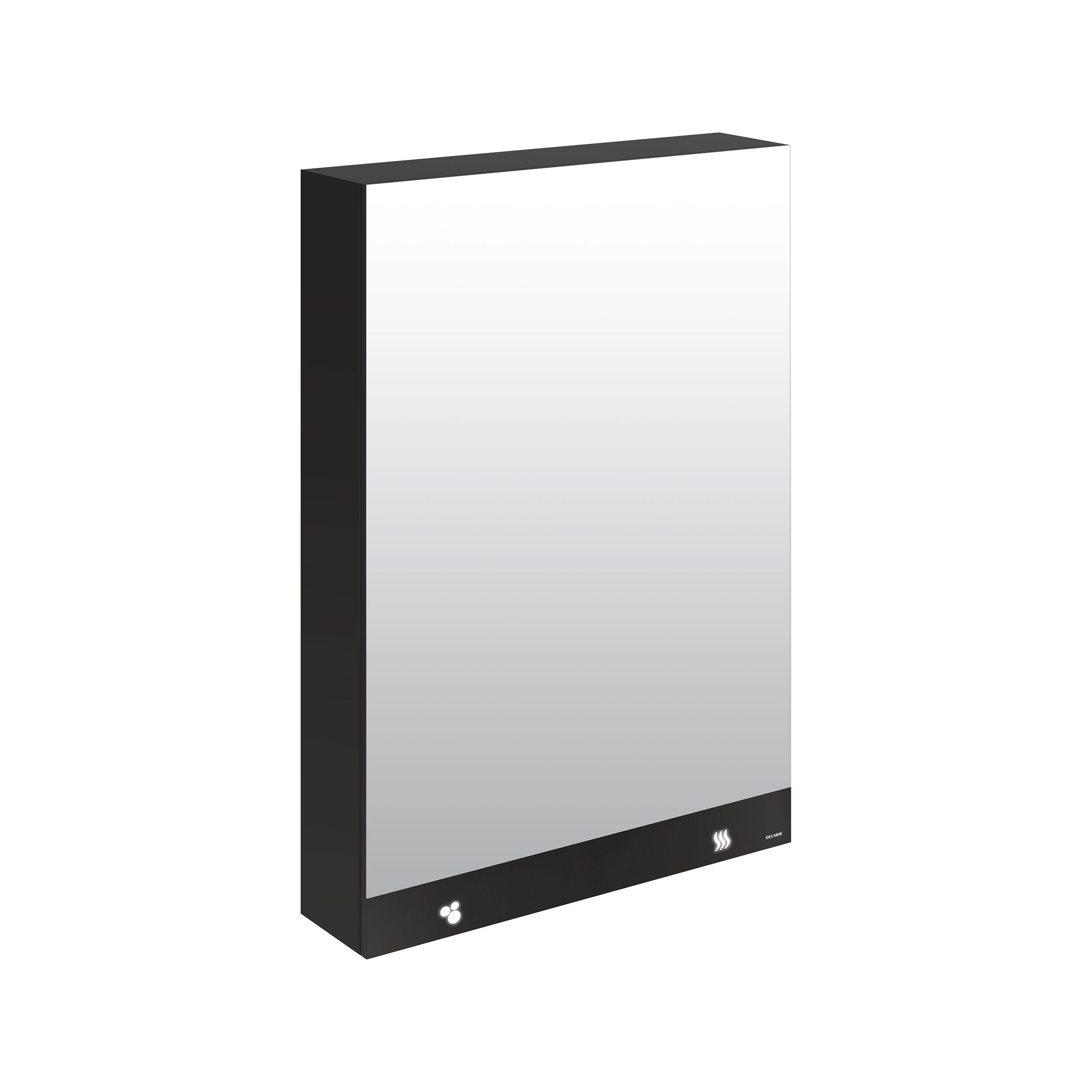

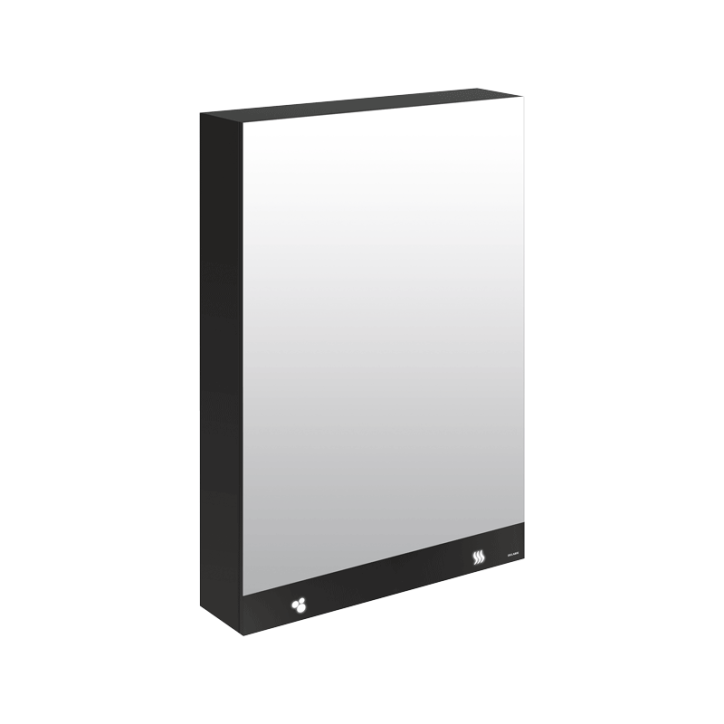

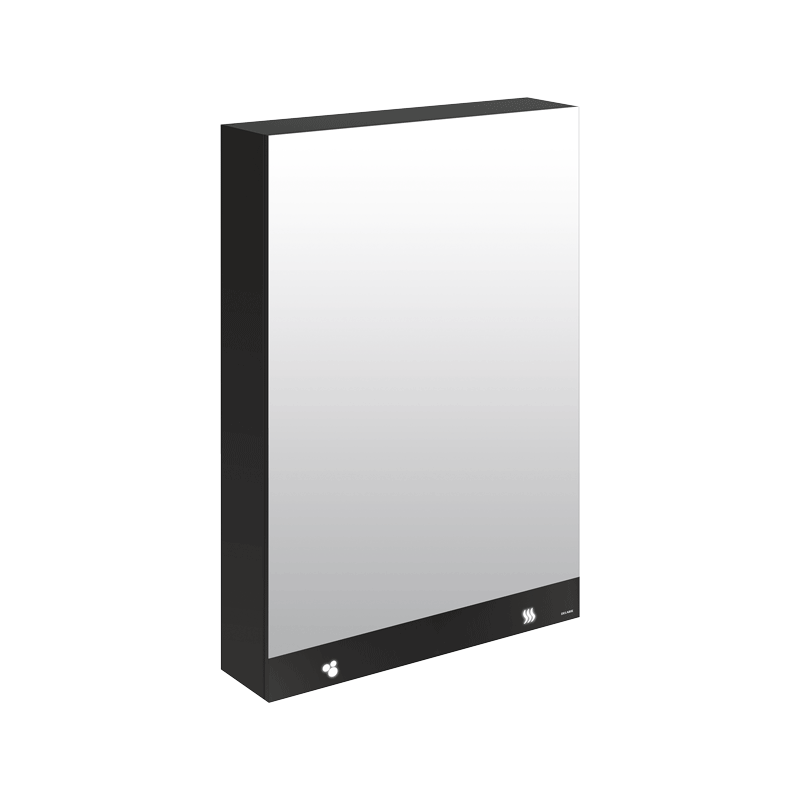

Mirror cabinet with 3 functions
Ref. 510207Mirror cabinet with 3 functions: mirror, electronic soap dispenser and electrical hand dryer.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Air-pulse hand dryer:
- High-speed.
- Pulsed air at 360km/h. Airflow: 36 l/second..
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.

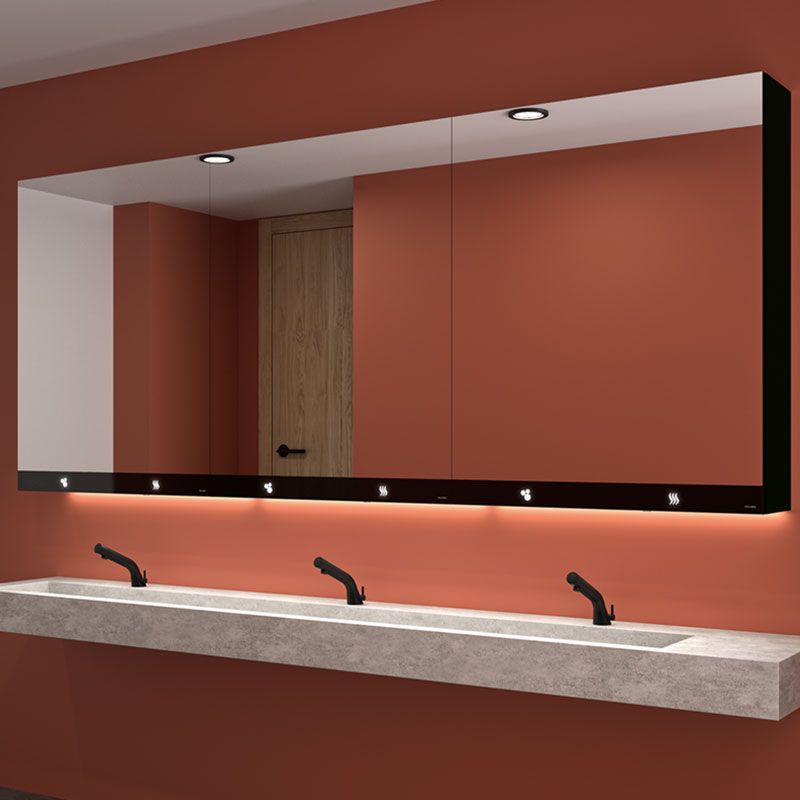

Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.

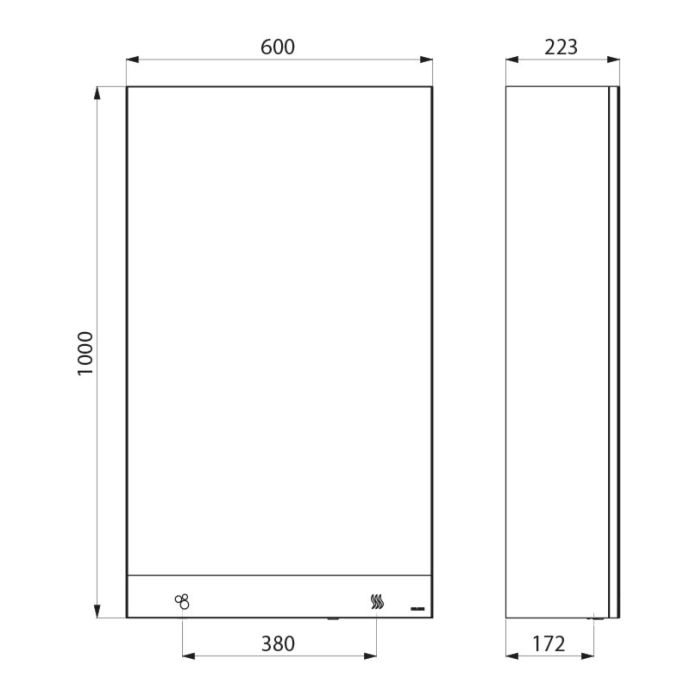

Dimensions: 600 x 223 x 1,000mm.
Weight: 29kg.
Mirror cabinet with 30-year warranty.
CE marked.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Air-pulse hand dryer:
- High-speed.
- Pulsed air at 360km/h. Airflow: 36 l/second..
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 600 x 223 x 1,000mm.
Weight: 29kg.
Mirror cabinet with 30-year warranty.
CE marked.
2024 UK public price excluding VAT: £1,706.71
ADVANTAGES
3 functions
Design: matte black and 304 st. steel finish
Hygiene: touch-free
One single electrical supply for all elements
TECHNICAL CHARACTERISTICS
Mirror cabinet with 3 functions
Ref. 510207Supply | Mains: 230V / 50-60Hz |
Technology | Electonic |
Height | 1,000mm |
Depth | 223mm |
Width | 600mm |
Thickness | Glass mirror: 4mm |
Finish | Matte black melamine and 304 stainless steel |
Certificates | |
Warranty | |
Repairability |
Spare parts

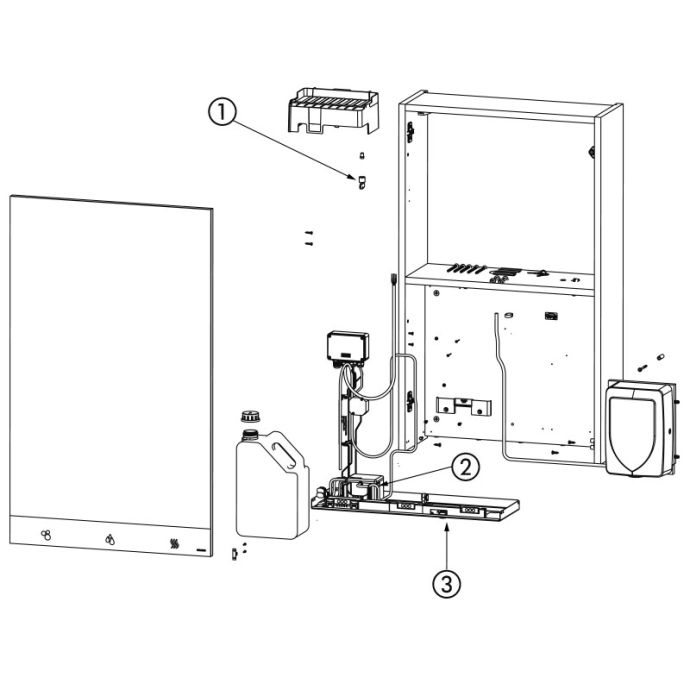

SPARE PARTS
Mirror cabinet with 3 functions
Ref. 5102071. | 222429 |
|
Service key |
2. | SER5102V |
|
Lock with key |
VARIANTS
510209 | With paper towel dispenser - 600mm | £1,425.60 excl. VAT |
---|
VARIANTS
510209 | With paper towel dispenser - 600mm | £1,425.60 excl. VAT |
---|
