Angled grab bar 90°, Ø 32mm

Ref. 5180P2
UltraPolish bright polished stainless steel

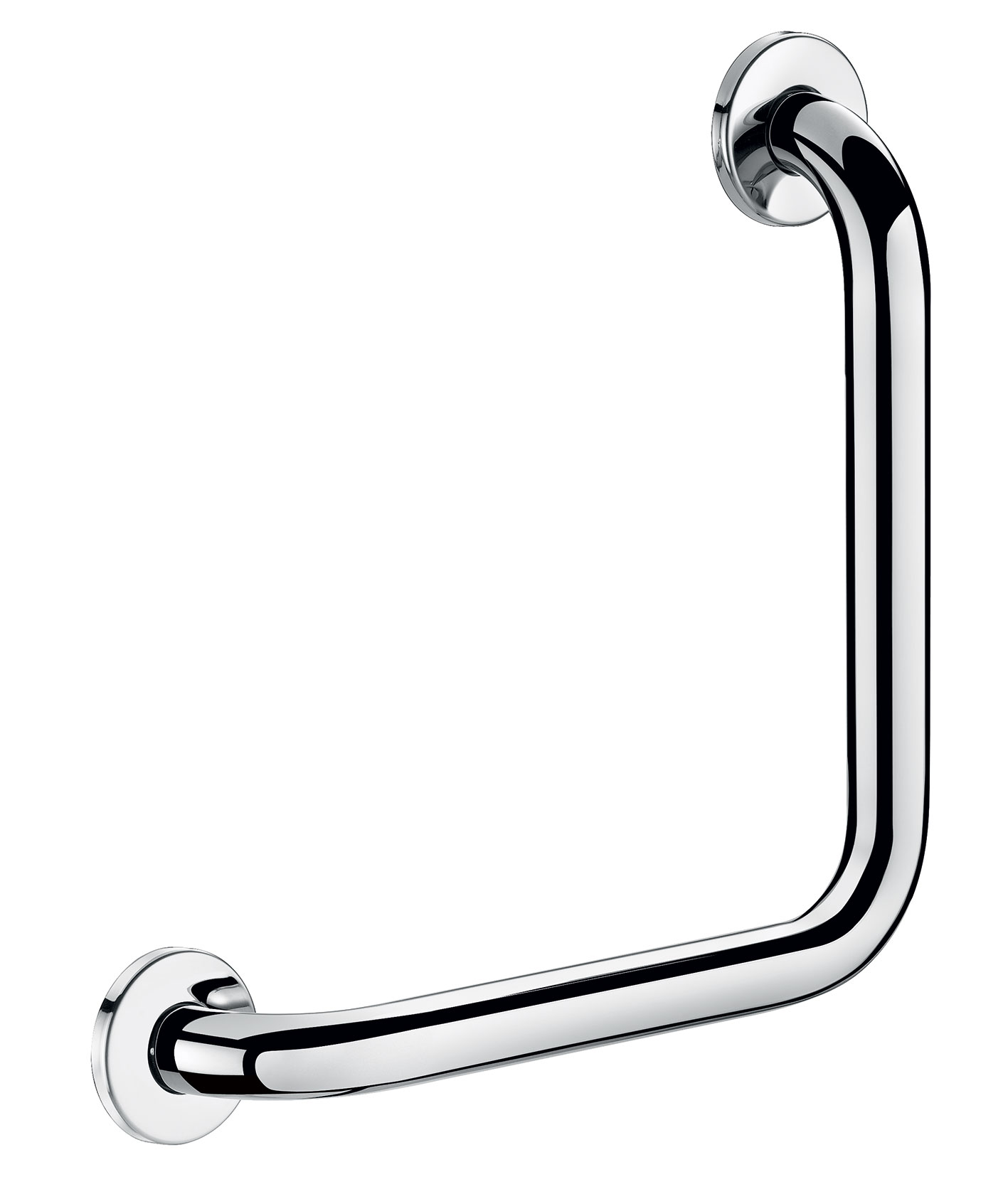

Angled grab bar 90°, Ø 32mm

Presentation

DESCRIPTION

Angled grab bar 90°, Ø 32mm

Ref. 5180P2
Angled grab bar 90° for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab bar (vertical part) for WCs or baths.
Universal for either left or right side.
Dimensions: 300 x 300mm, Ø 32mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

2024 UK public price excluding VAT: £124.49

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraPolishbasin: Smooth surface easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Angled grab bar 90°, Ø 32mm

Ref. 5180P2
Height 300mm
Length 300mm
Diameter Ø 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraPolish bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien coudée 90° Inox brillant, 300 x 300 mm

Ref. 5180P2

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5180S Polished satin stainless steel UltraSatin £124.49 excl. VAT
