DESCRIPTION

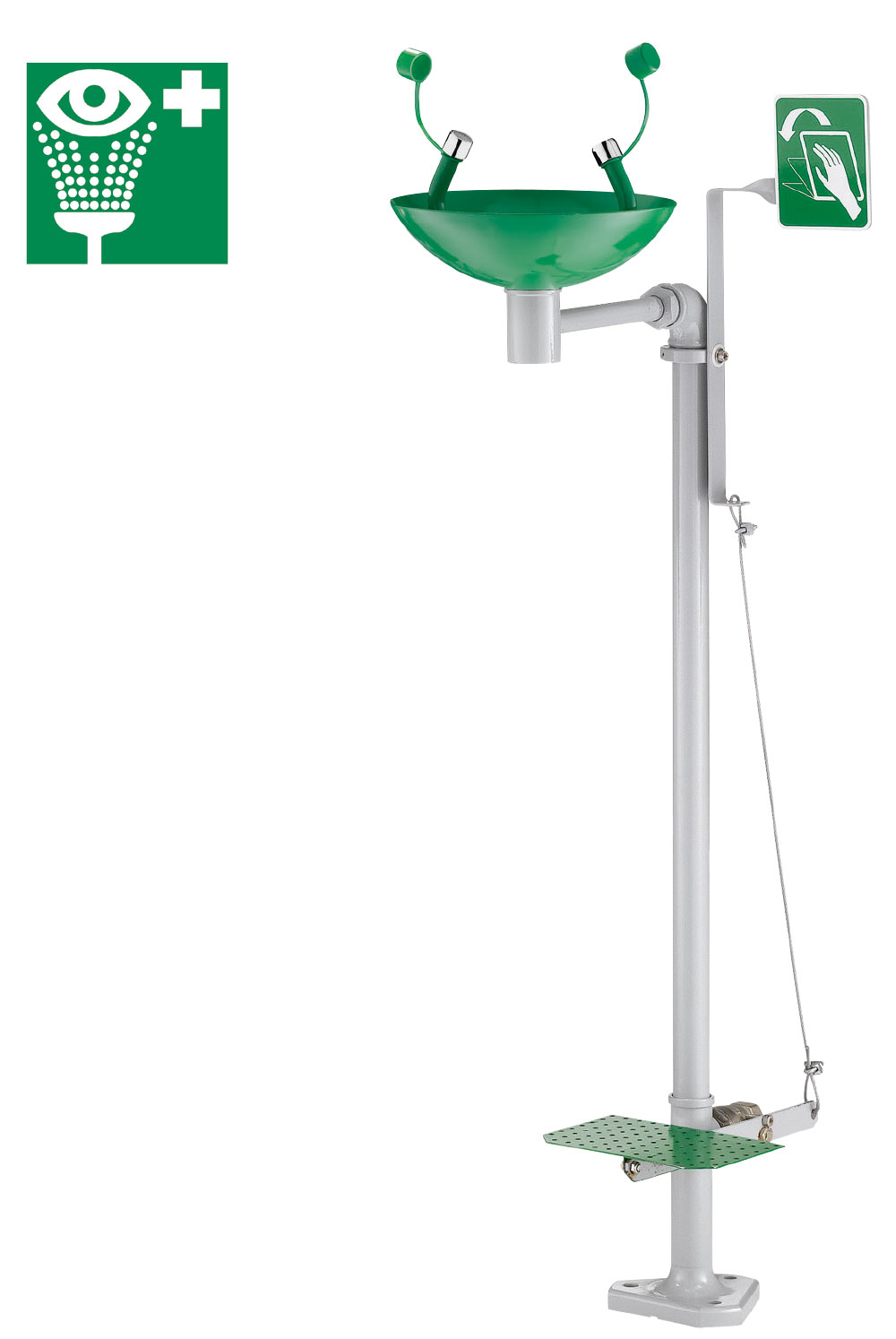

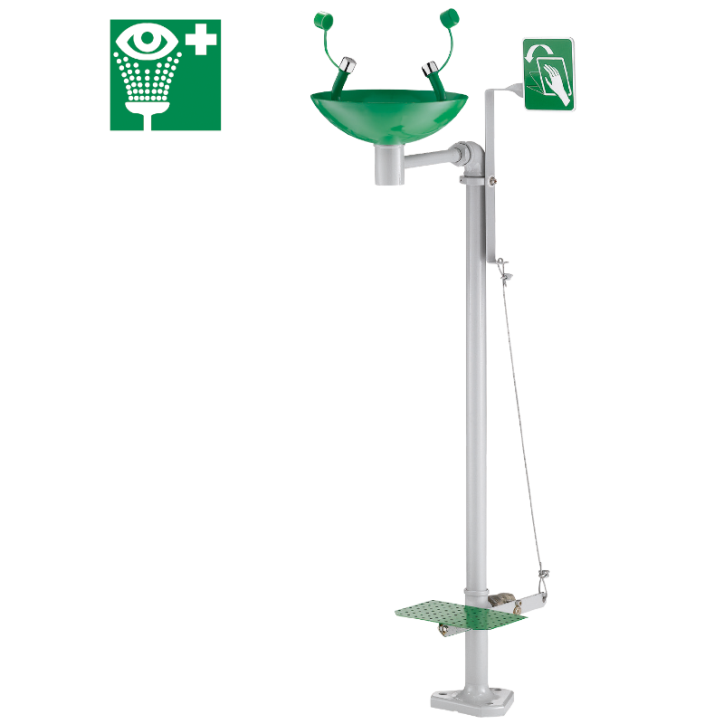

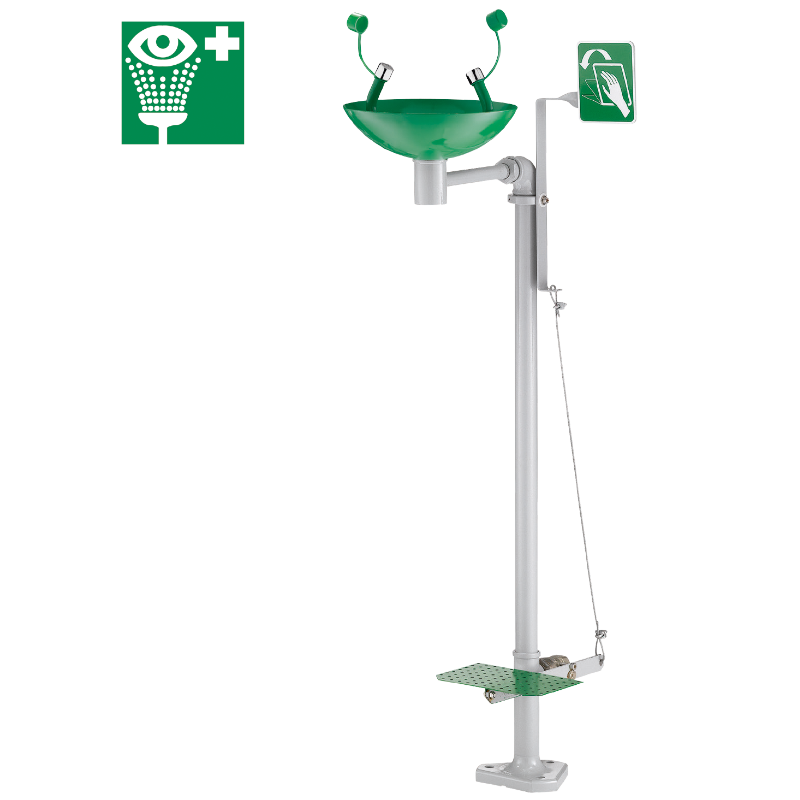

Free-standing eye wash station
Ref. 9201Free-standing eye wash station with manual and pedal control equipped with:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.

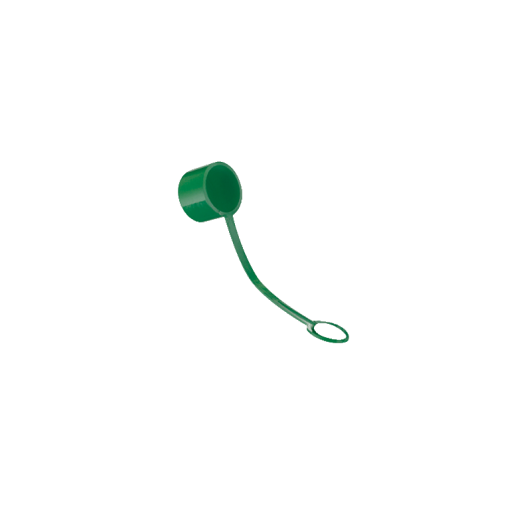

2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
30-year warranty.
Operation:
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. To stop the flow, pull the hand control in the opposite direction and raise the pedal with your foot.
Flow rate 20 lpm at 3 bar dynamic pressure.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
30-year warranty.
Operation:
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. To stop the flow, pull the hand control in the opposite direction and raise the pedal with your foot.
Flow rate 20 lpm at 3 bar dynamic pressure.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
2024 UK public price excluding VAT: £739.71
ADVANTAGES
Frost-free system provided as standard
Gentle spray, quick and easy to activate
Maintenance without removing the equipment
Rapid flow rates for decontamination

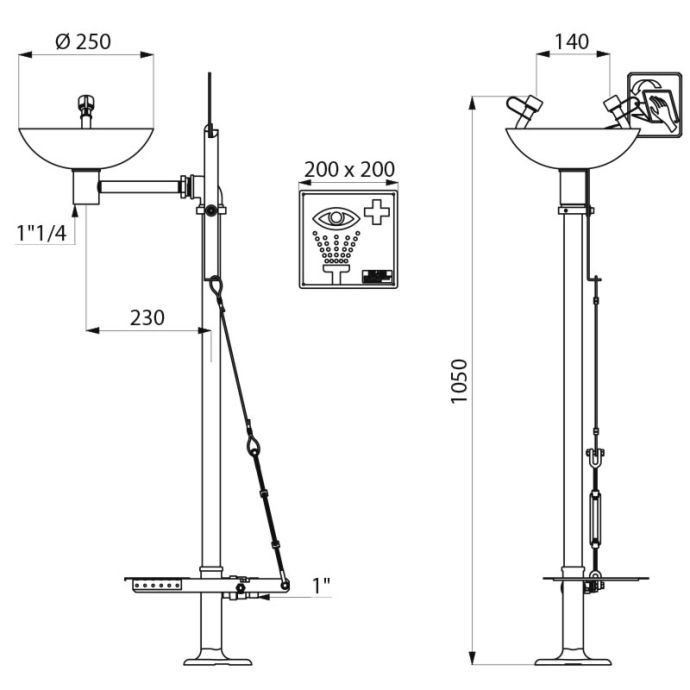

TECHNICAL CHARACTERISTICS
Free-standing eye wash station
Ref. 9201Height | 1050mm |
Depth | 500mm |
Flow rate | 20 lpm at 3 bar dynamic pressure |
Finish | Epoxy |
Certificates | |
Warranty | |
Repairability |
Spare parts

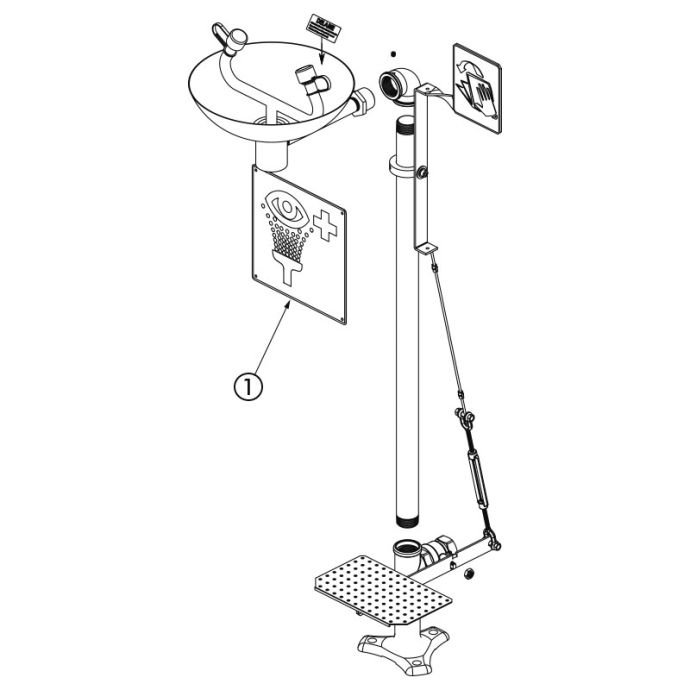

SPARE PARTS
Free-standing eye wash station
Ref. 92011. | V669AH75 |
|
Nameplate for safety eye wash |
VARIANTS
9102 | Wall-mounted eye wash - M1/2" water inlet | £456.58 excl. VAT |
---|
VARIANTS
9102 | Wall-mounted eye wash - M1/2" water inlet | £456.58 excl. VAT |
---|
