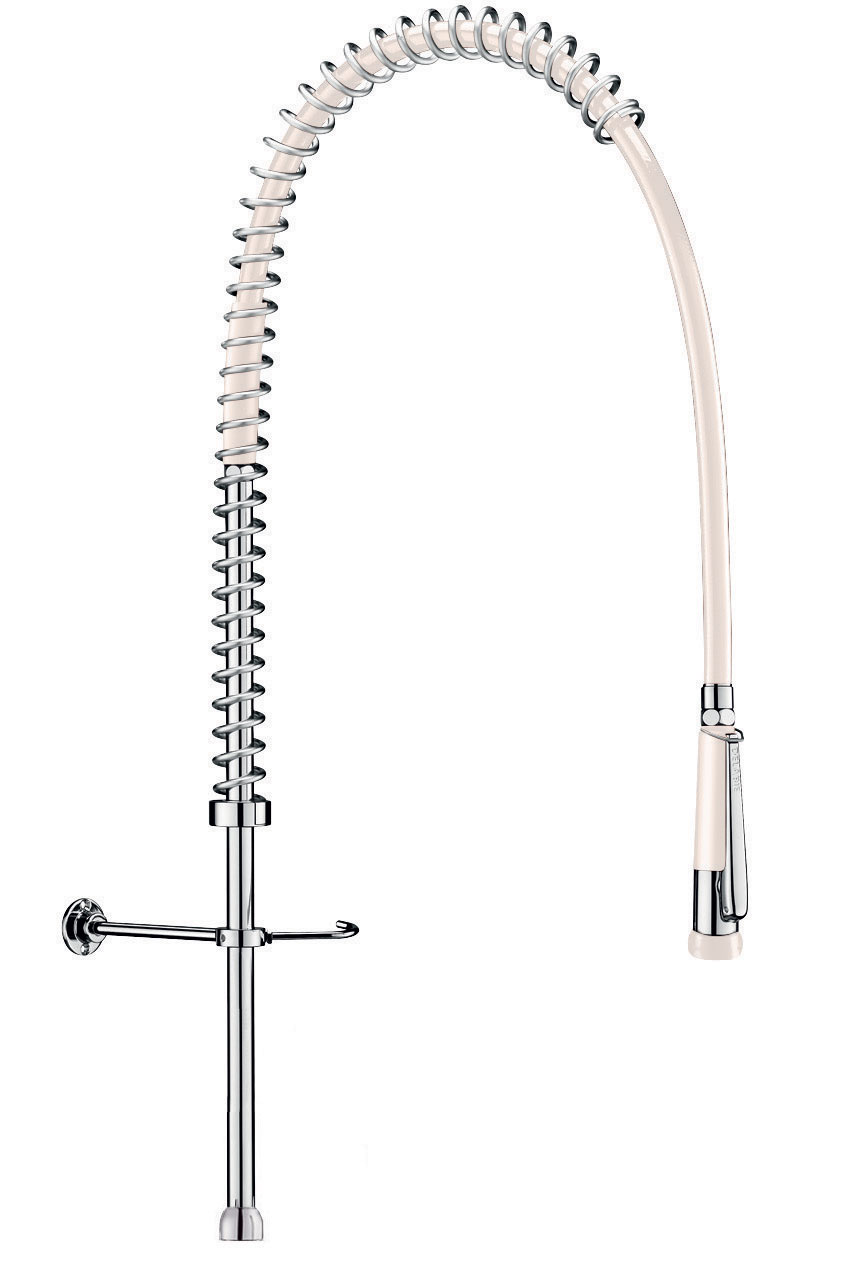

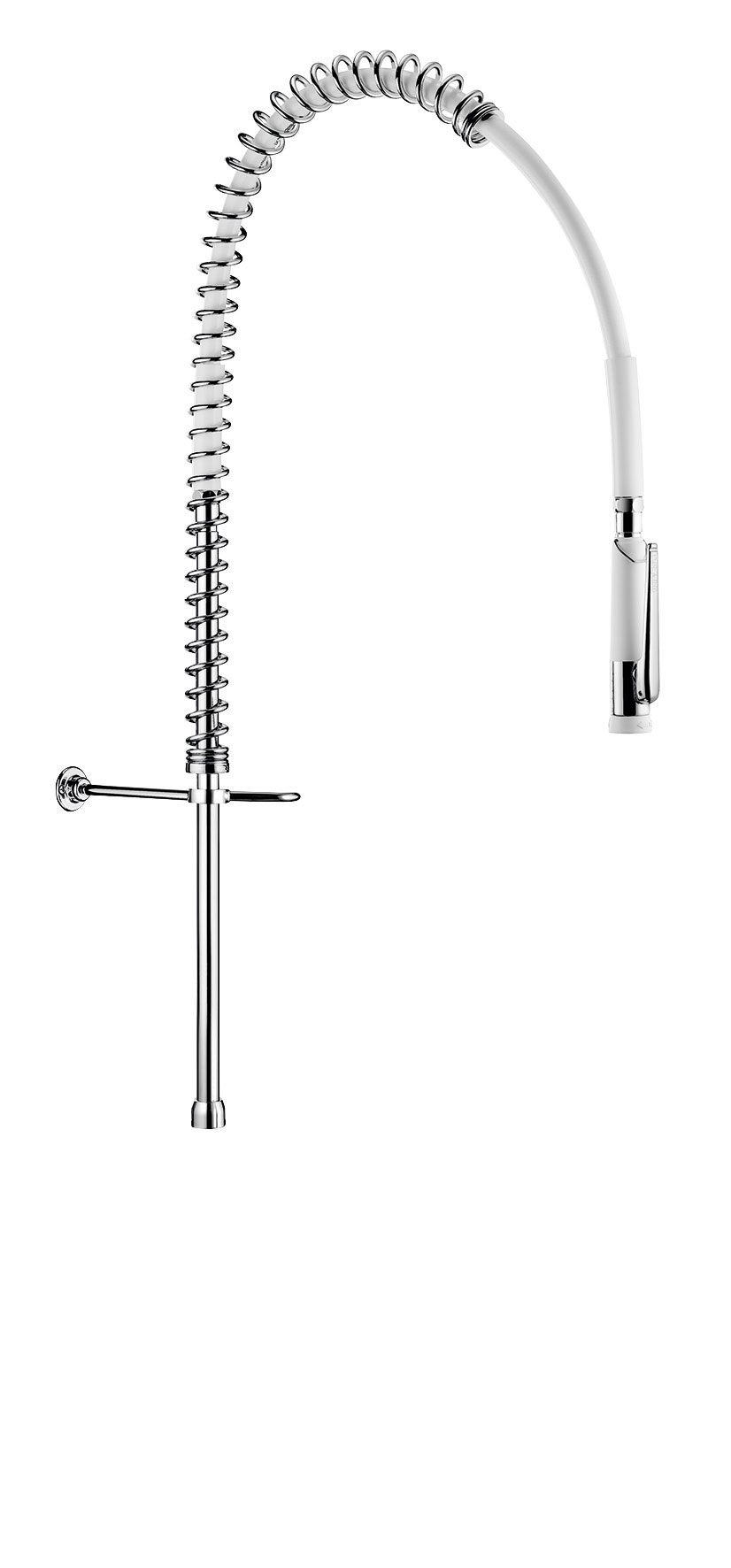

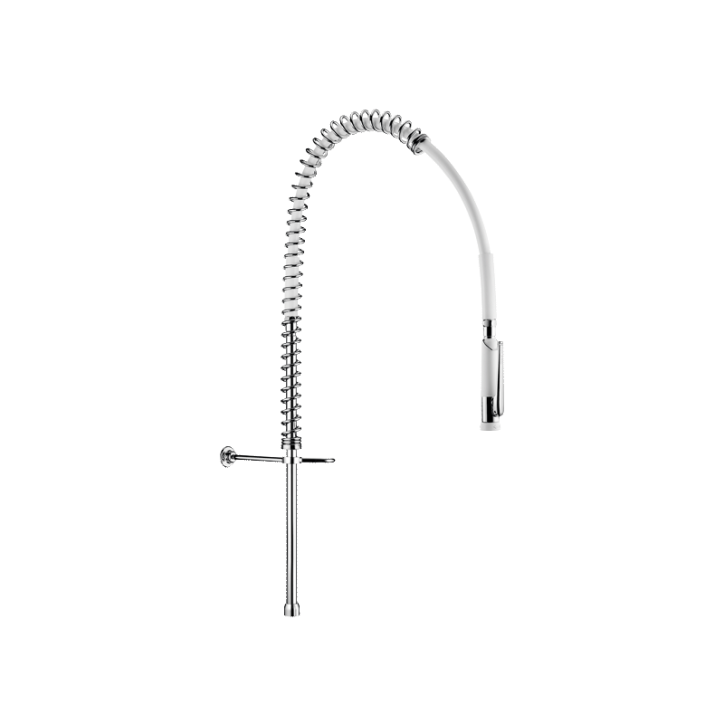

White pre-rinse set with no valve

Ref. 433420
Without bib tap
White pre-rinse set with no valve

Presentation

DESCRIPTION

White pre-rinse set with no valve

Ref. 433420
White pre-rinse set without valve suitable for intensive use in professional kitchens.
Without bib tap.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
Short brass column 3/4" for wall-mounted water control valve.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

2024 UK public price excluding VAT: £480.47

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

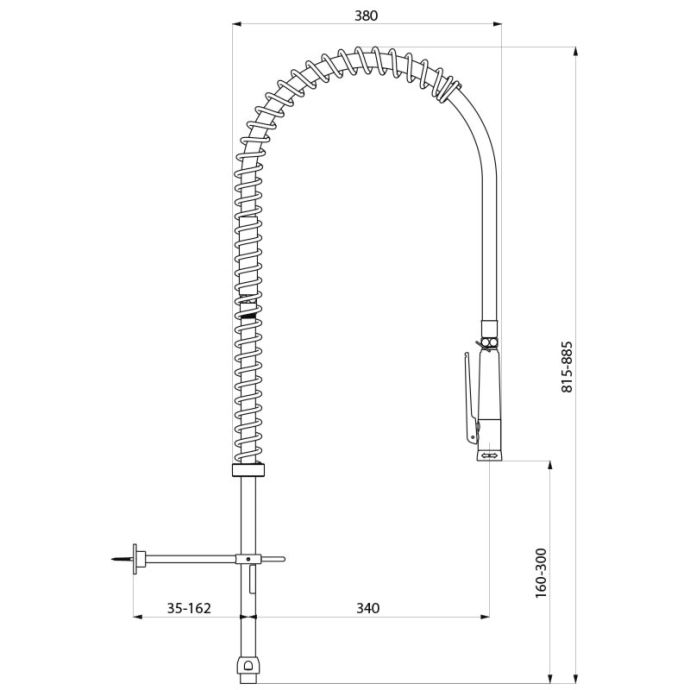

TECHNICAL CHARACTERISTICS

White pre-rinse set with no valve

Ref. 433420
Connector 3/4"
Height 815 - 885mm
Drop height 160 - 300mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability
White pre-rinse set with no valve
Ref. 433420

Downloads

DOWNLOADS

Combiné de prélavage blanc sans robinetterie avec colonne courte

Ref. 433420

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

White pre-rinse set with no valve

Ref. 433420
G6433
Wall-mounted pre-rinse set with mixer
Wall-mounted pre-rinse set with mixer

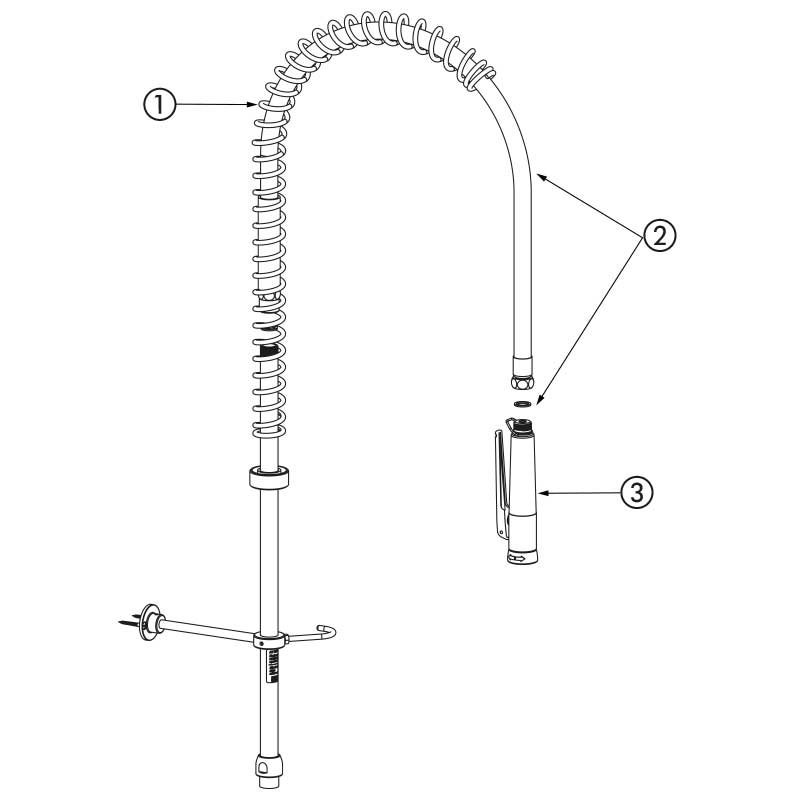

Spare parts

SPARE PARTS

White pre-rinse set with no valve

Ref. 433420
1. 433038
Stainless steel spring guide
2. 433095
Food-grade flexible hose for catering
3. 433000
White M1/2" hand spray
4. 433520
Pre-rinse short column
