Pre-rinse set with mixer

Ref. 5630
Without bib tap
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5630
Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £705.35

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic controls

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

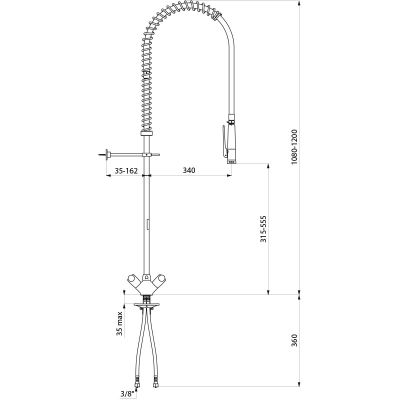

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5630
Connector F3/8"
Height 1080 - 1200mm
Drop height 315 - 555mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo Belgaqua ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage monotrou avec mélangeur

Ref. 5630

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

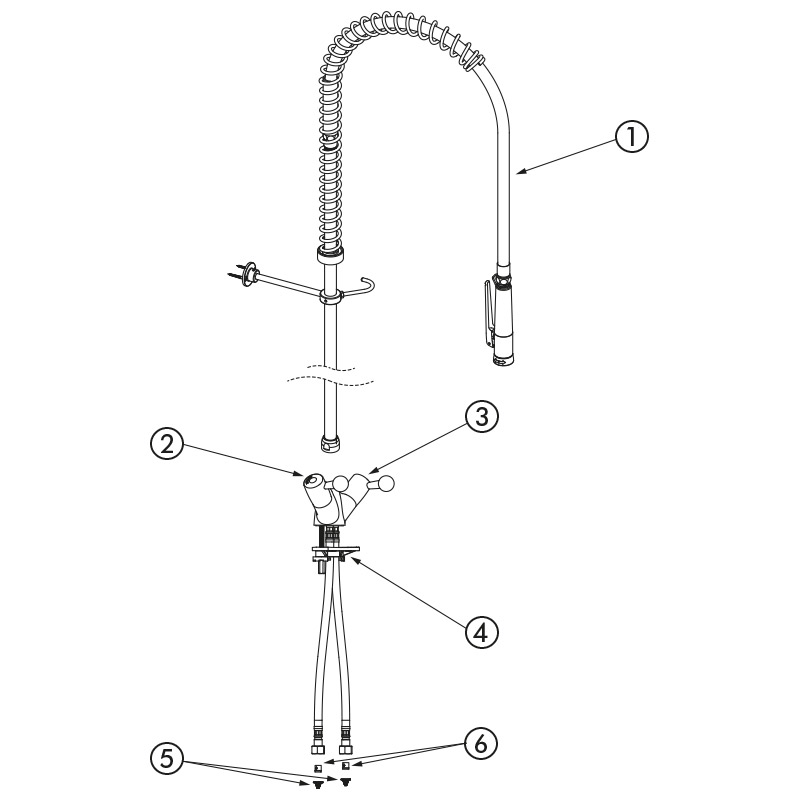

SPARE PARTS

Pre-rinse set with mixer

Ref. 5630
1. 433720
Black pre-rinse set with no valve
2. P271AA85
Valve head 1/4 left turn
3. P272AA85
Valve head 1/4 right turn
4. 2510SES
Locking kit
5. 256P
Fixing plate
6. 60438.10P
Conical filter
7. 900010
Non-return valve

VARIANTS

5830 Hand spray with scale-resistant nipples - Without bib tap £747.52 excl. VAT
5832 Hand spray with scale-resistant nipples - With bib tap & tubular spout £924.77 excl. VAT
5632 Hand spray with scale-resistant nozzle - With bib tap and tubular spout £883.49 excl. VAT

VARIANTS

5830 Hand spray with scale-resistant nipples - Without bib tap £747.52 excl. VAT
5832 Hand spray with scale-resistant nipples - With bib tap & tubular spout £924.77 excl. VAT
5632 Hand spray with scale-resistant nozzle - With bib tap and tubular spout £883.49 excl. VAT
