DESCRIPTION

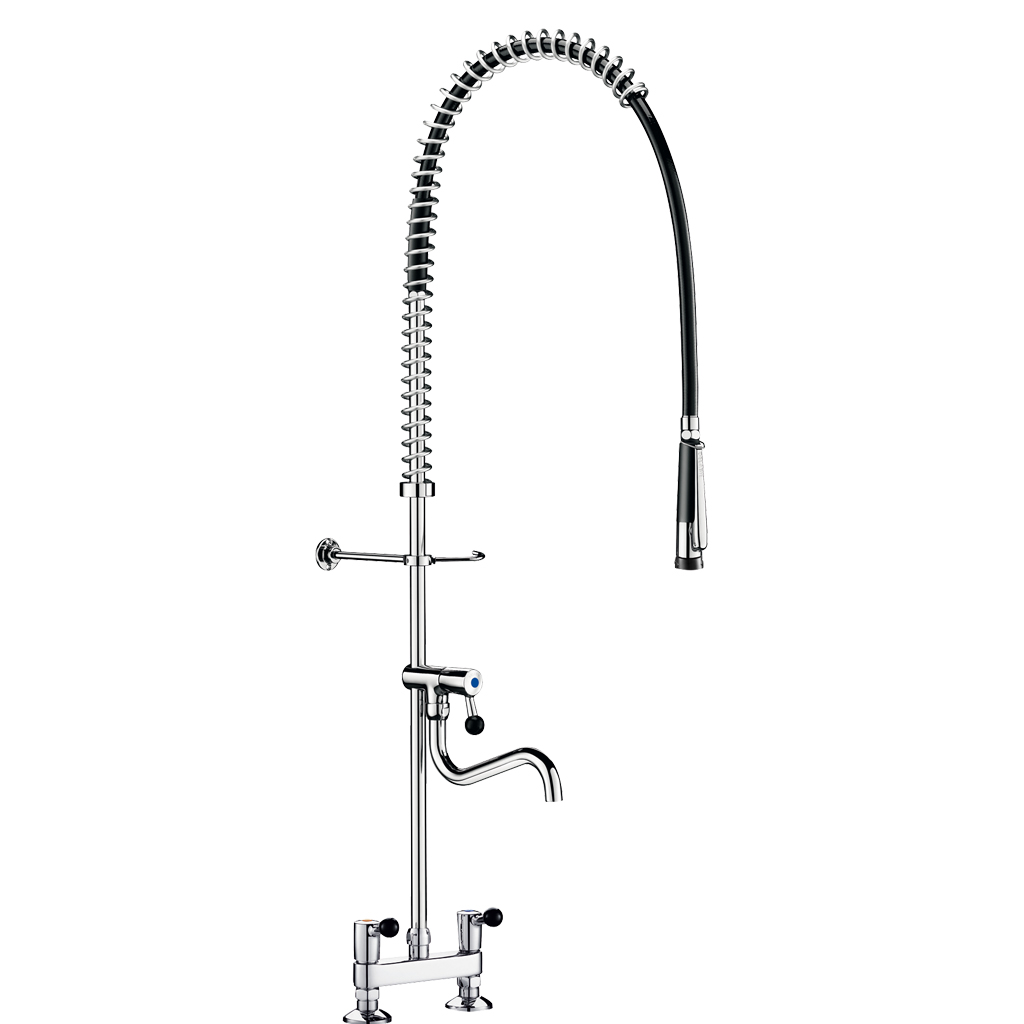

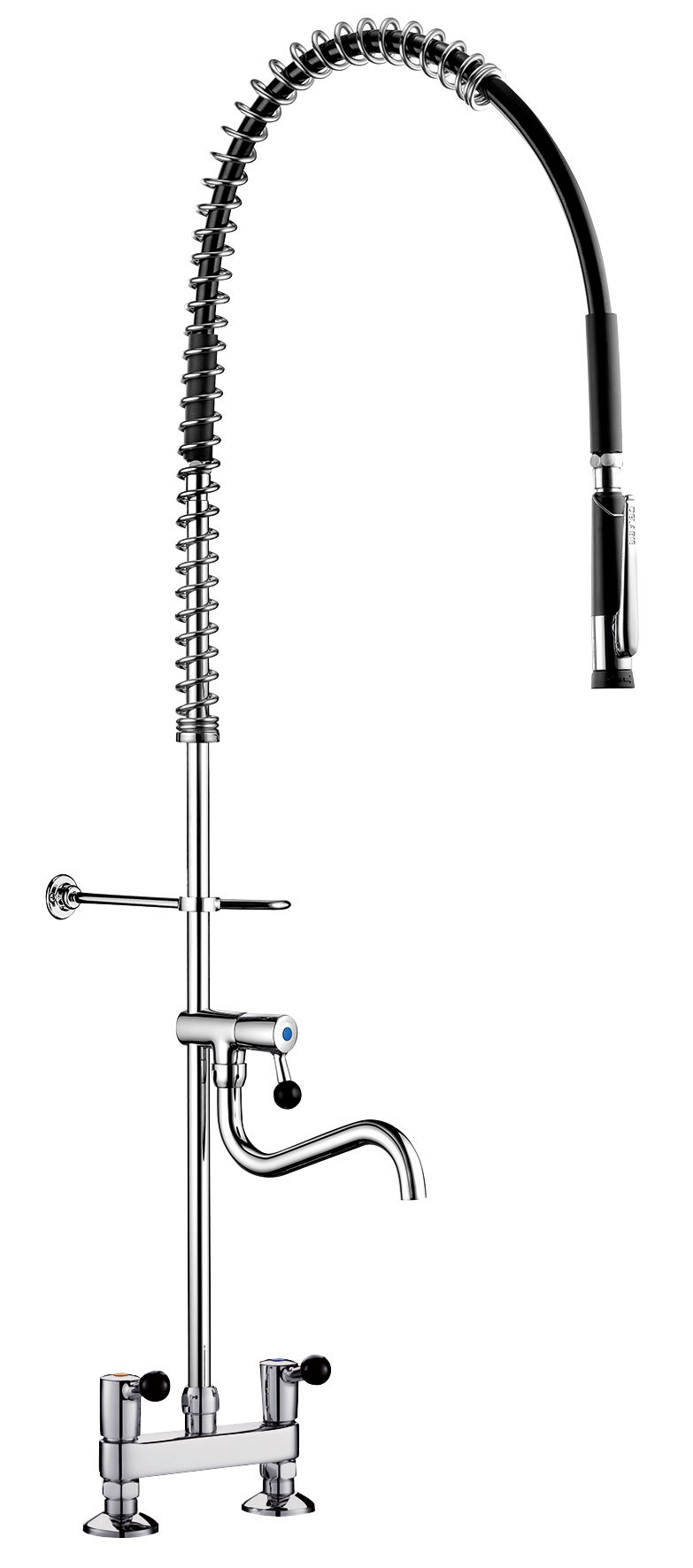

Twin hole pre-rinse set with mixer
Ref. 5633Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Deck-mounted twin hole mixer with 150mm centres with:
- valve heads with reinforced mechanisms with ergonomic control levers.
- offset inlet connections with M1/2" tails.
Bib tap with swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- valve head with reinforced mechanism with ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray and shock-resistant tip.
Black reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse models can be installed close to the splashback.
Deck-mounted twin hole mixer with 150mm centres with:
- valve heads with reinforced mechanisms with ergonomic control levers.
- offset inlet connections with M1/2" tails.
Bib tap with swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- valve head with reinforced mechanism with ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray and shock-resistant tip.
Black reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse models can be installed close to the splashback.
2024 UK public price excluding VAT: £981.08
ADVANTAGES
Rapid fill: full flow within the first 90°
Anti-torsion rotating nut and PVC sheath
Comfort: ergonomic controls, swivelling spout
Hygiene: PVC flexible, scale-resistant spray
TECHNICAL CHARACTERISTICS
Twin hole pre-rinse set with mixer
Ref. 5633Connector | M1/2" |
Height | 1110 - 1230mm |
Drop height | 345 - 585mm |
Flow rate | 25 lpm bib tap; 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Twin hole pre-rinse set with mixer
Ref. 56331. | 433722 |
|
Black pre-rinse set with no valve |
2. | P271AA85 |
|
Valve head 1/4 left turn |
3. | P272AA85 |
|
Valve head 1/4 right turn |
VARIANTS
5833 | Hand spray scale-resistant nipples -Bib tap & tub. spout-150mm centres | £1,022.84 excl. VAT | |
---|---|---|---|
5880 | Hand spray with scale-resistant nipples - No bib tap - 150mm centres | £870.14 excl. VAT | |
5633UK | Hand spray with scale-resistant nozzle - Bib tap and tubular spout - 180mm centres | £990.99 excl. VAT | |
5680 | Hand spray with scale-resistant nozzle - Without bib tap - 150mm centres | £827.98 excl. VAT | |
5680UK | Hand spray with scale-resistant nozzle - Without bib tap - 180mm centres | £833.00 excl. VAT |
VARIANTS
5833 | Hand spray scale-resistant nipples -Bib tap & tub. spout-150mm centres | £1,022.84 excl. VAT | |
---|---|---|---|
5880 | Hand spray with scale-resistant nipples - No bib tap - 150mm centres | £870.14 excl. VAT | |
5633UK | Hand spray with scale-resistant nozzle - Bib tap and tubular spout - 180mm centres | £990.99 excl. VAT | |
5680 | Hand spray with scale-resistant nozzle - Without bib tap - 150mm centres | £827.98 excl. VAT | |
5680UK | Hand spray with scale-resistant nozzle - Without bib tap - 180mm centres | £833.00 excl. VAT |
