DESCRIPTION

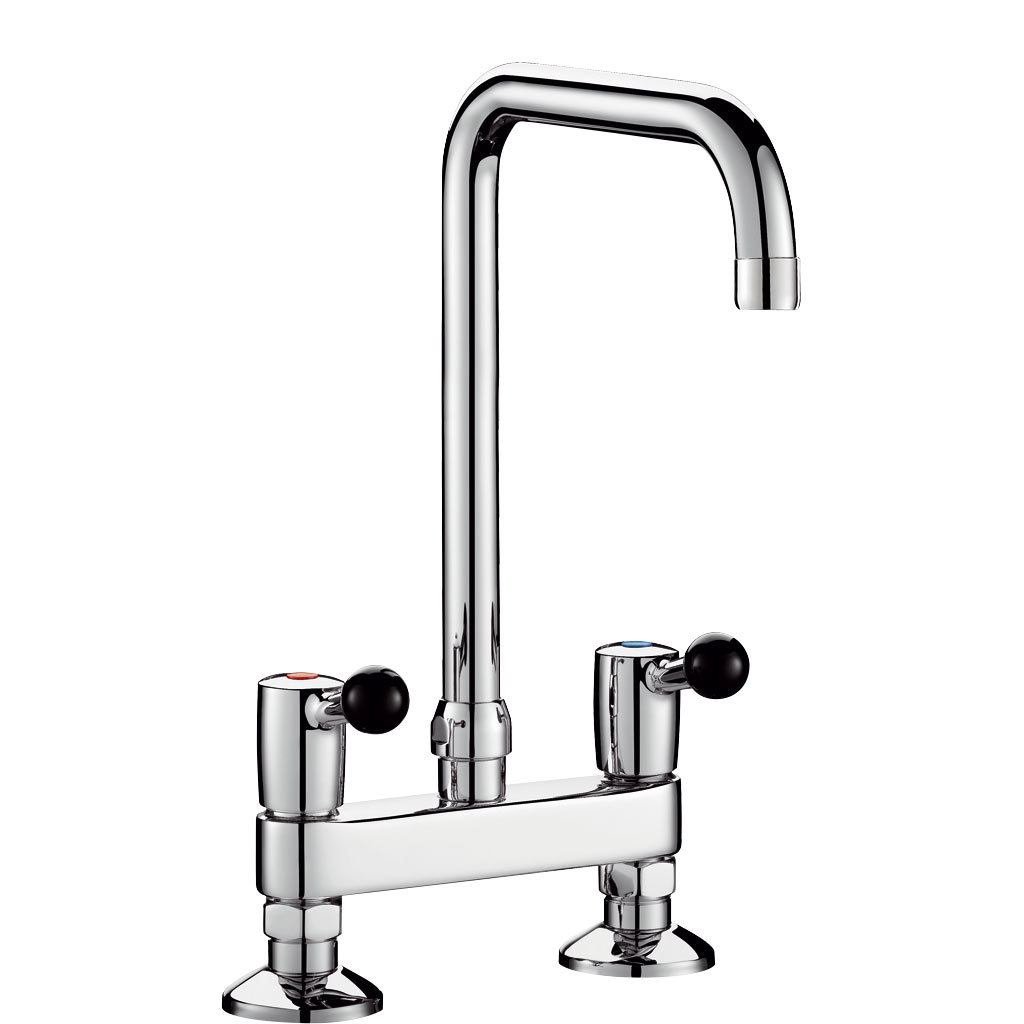

Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T3Deck-mounted twin hole mixer, M1/2" with 150mm centres.
Swivelling, tubular spout Ø 22mm H. 220mm L. 300mm with star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within first 90°.
Full flow 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.
Swivelling, tubular spout Ø 22mm H. 220mm L. 300mm with star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within first 90°.
Full flow 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.
2024 UK public price excluding VAT: £433.22
ADVANTAGES
Flow rate 60 lpm within first 90°
One-piece body and spout in chrome-plated brass
Can be installed close to splashback
Spout with smooth interior

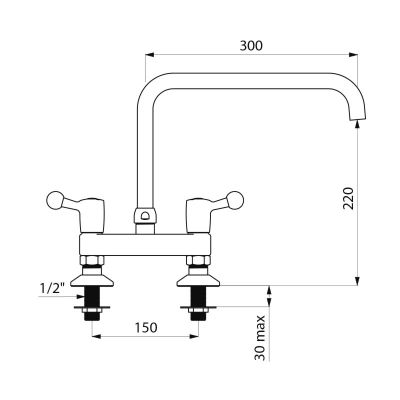

TECHNICAL CHARACTERISTICS
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T3Connector | M1/2" |
Height | 300mm |
Drop height | 220mm |
Spout length | 300mm |
Flow rate | 60 lpm within 90°, 90 lpm full flow |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T31. | 963300145F |
|
Swivelling, tubular spout |
2. | 921022.2P |
|
Star-shaped flow straightener |
3. | P271AA85 |
|
Valve head 1/4 left turn |
4. | P272AA85 |
|
Valve head 1/4 right turn |
5. | 826115 |
|
Back-nut |
VARIANTS
5641T2 | 60 lpm twin hole mixer - H.220 L.200 - 150mm centres | £419.26 excl. VAT | |
---|---|---|---|
5641T2UK | 60 lpm twin hole mixer - H.220 L.200 - 180mm centres | £430.84 excl. VAT | |
5641T3UK | 60 lpm twin hole mixer - H.220 L.300 - 180mm centres | £445.22 excl. VAT |
VARIANTS
5641T2 | 60 lpm twin hole mixer - H.220 L.200 - 150mm centres | £419.26 excl. VAT | |
---|---|---|---|
5641T2UK | 60 lpm twin hole mixer - H.220 L.200 - 180mm centres | £430.84 excl. VAT | |
5641T3UK | 60 lpm twin hole mixer - H.220 L.300 - 180mm centres | £445.22 excl. VAT |
