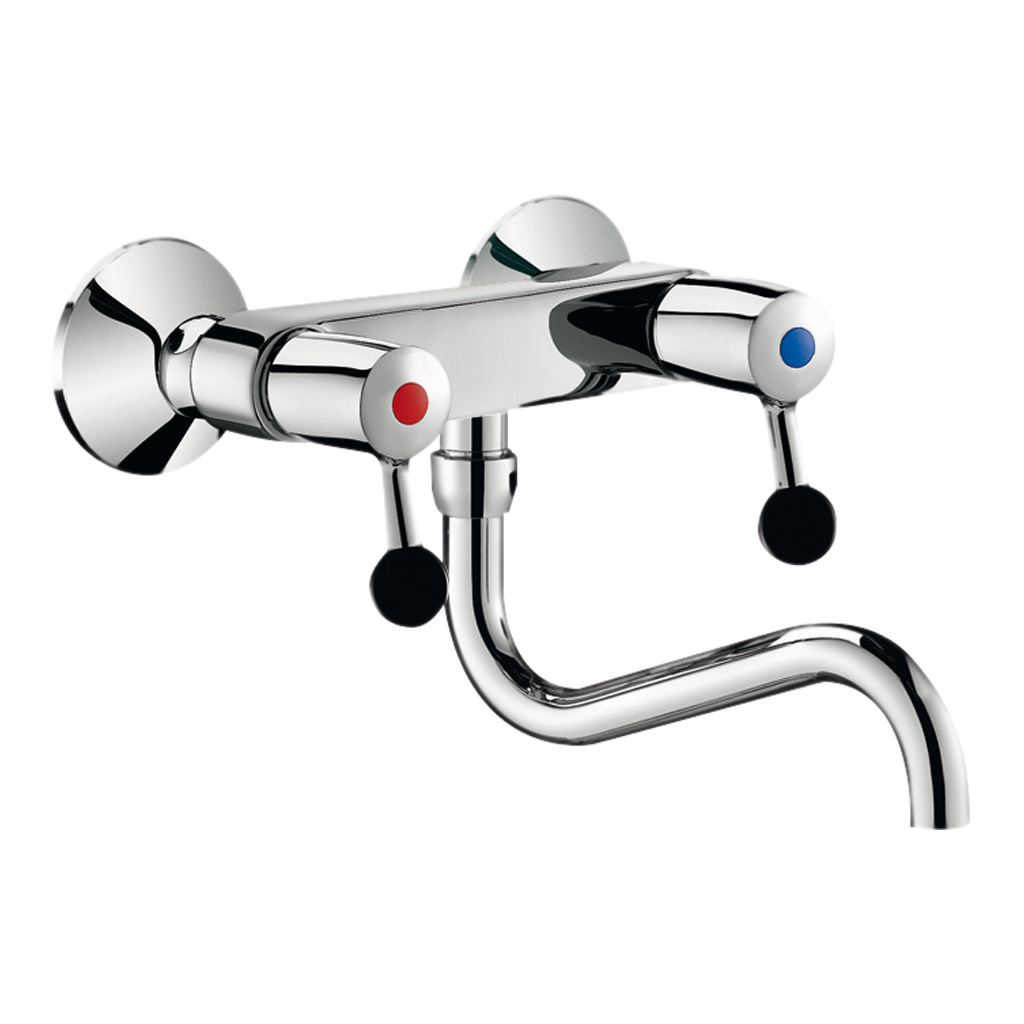

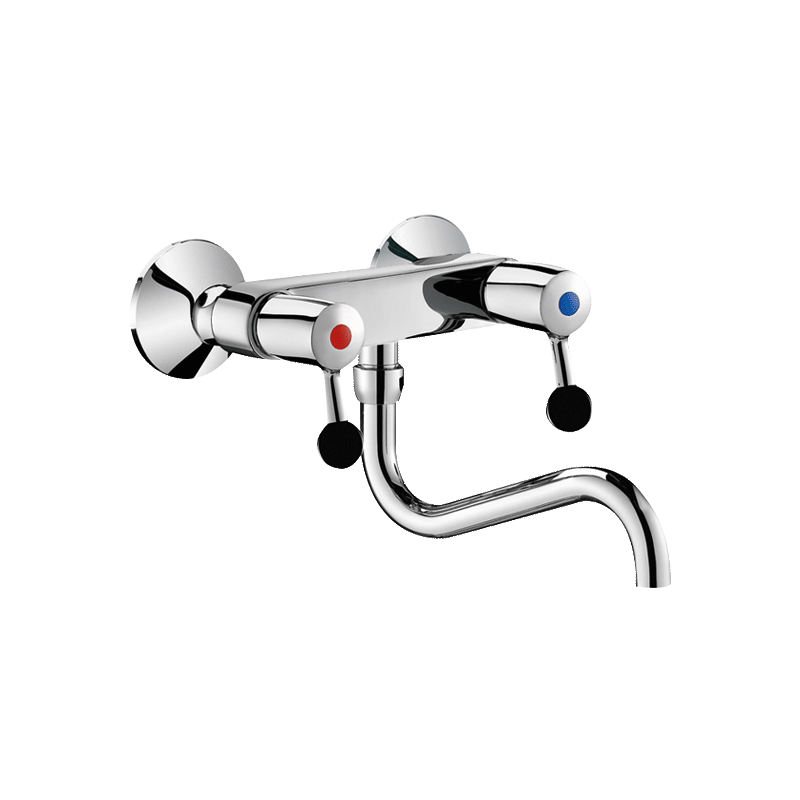

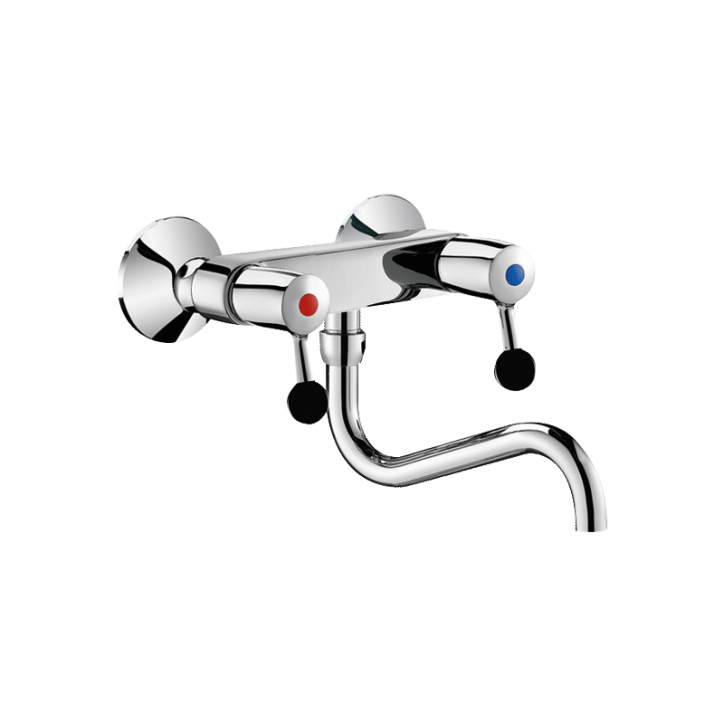

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2
Swivelling under spout L. 200mm
Wall-mounted twin hole mixer - 60 lpm

Presentation

DESCRIPTION

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2
Wall-mounted twin hole mixer with swivelling, tubular under spout Ø 22mm L. 200mm with star-shaped brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.
30-year warranty.

2024 UK public price excluding VAT: £320.09

ADVANTAGES

Remplissage rapide

Flow rate 60 lpm within first 90°

Endurance - Fiabilité

One-piece body and spout in chrome-plated brass

Faible espacement au mur - Encombrement limité

Helps create clear work surfaces

Characteristics

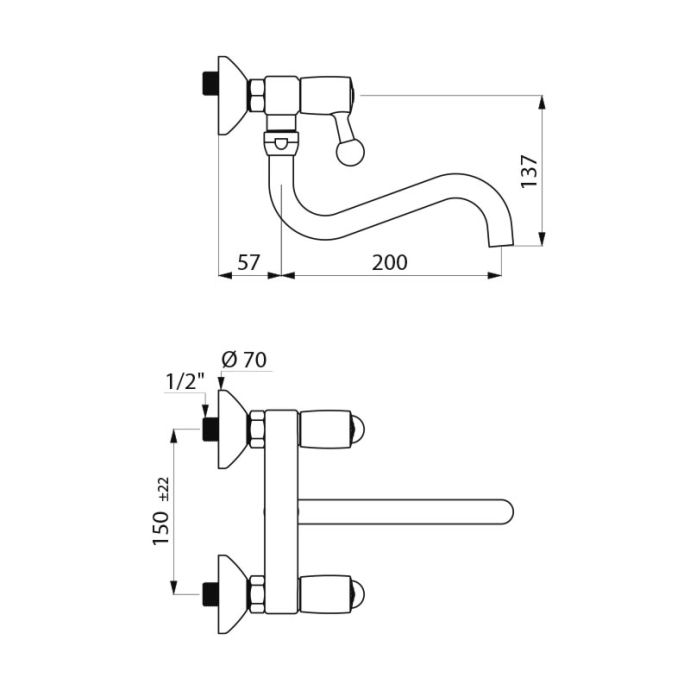

TECHNICAL CHARACTERISTICS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2
Connector M1/2"
Spout length 200mm
Flow rate 60 lpm
Width to the wall 57mm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Wall-mounted twin hole mixer - 60 lpm
Ref. 5645T2

Downloads

DOWNLOADS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2

To download one or several documents linked to this product, please select the type of file you require :

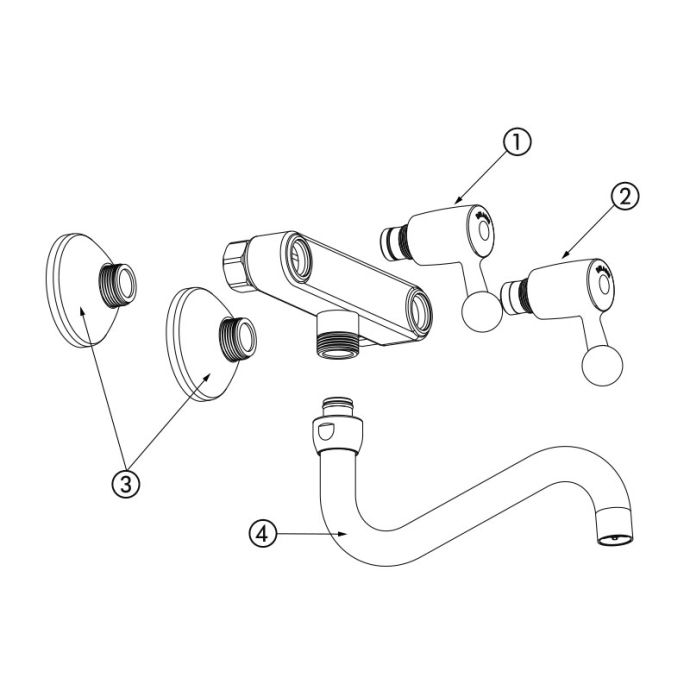

Spare parts

SPARE PARTS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2
1. P271AA85
Valve head 1/4 left turn
2. P272AA85
Valve head 1/4 right turn
3. 856127.2P
Offset connector
4. 943200110
Swivelling swan neck tubular spout L. 200mm

VARIANTS

5647T2 Wall-mounted mixer with swivelling over-spout L.200 £334.80 excl. VAT
5647T3 Wall-mounted mixer with swivelling over-spout L.300 £342.31 excl. VAT

Associated products

VARIANTS

5647T2 Wall-mounted mixer with swivelling over-spout L.200 £334.80 excl. VAT
5647T3 Wall-mounted mixer with swivelling over-spout L.300 £342.31 excl. VAT
