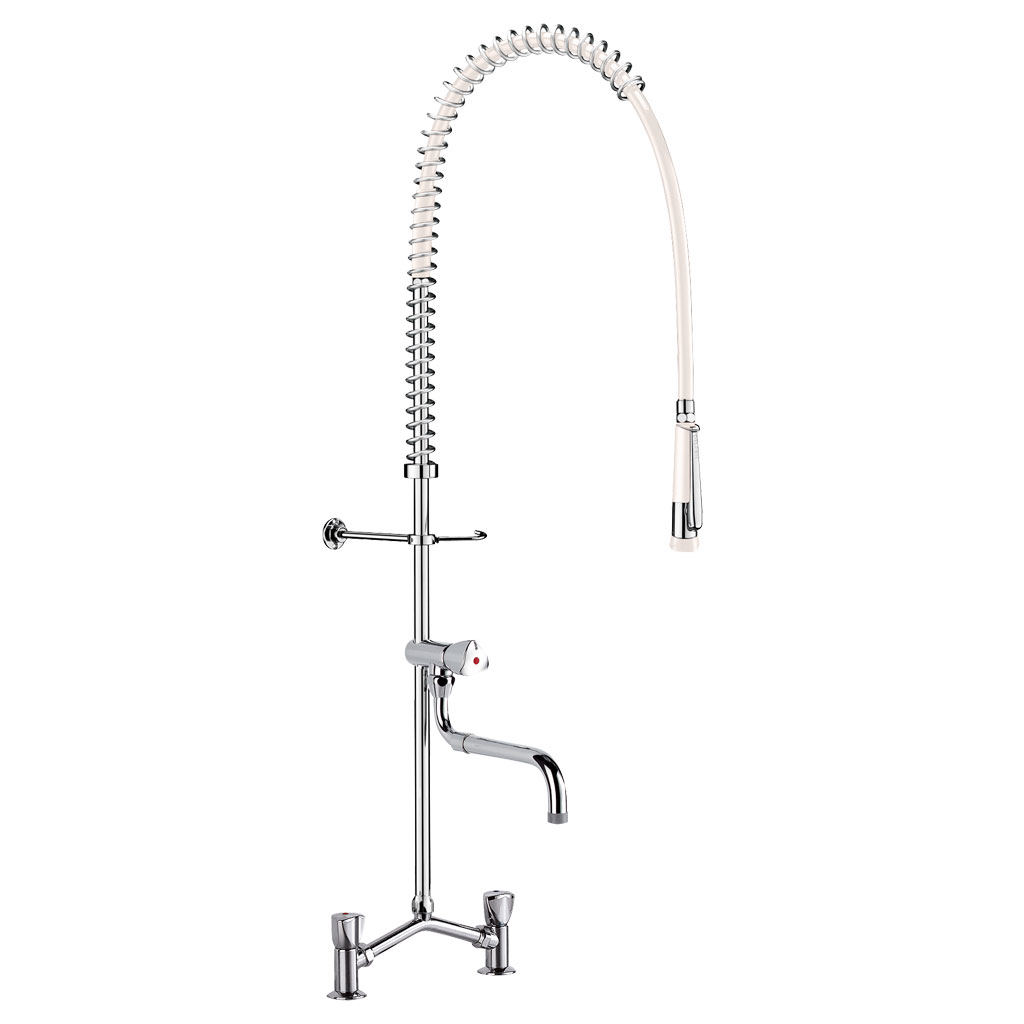

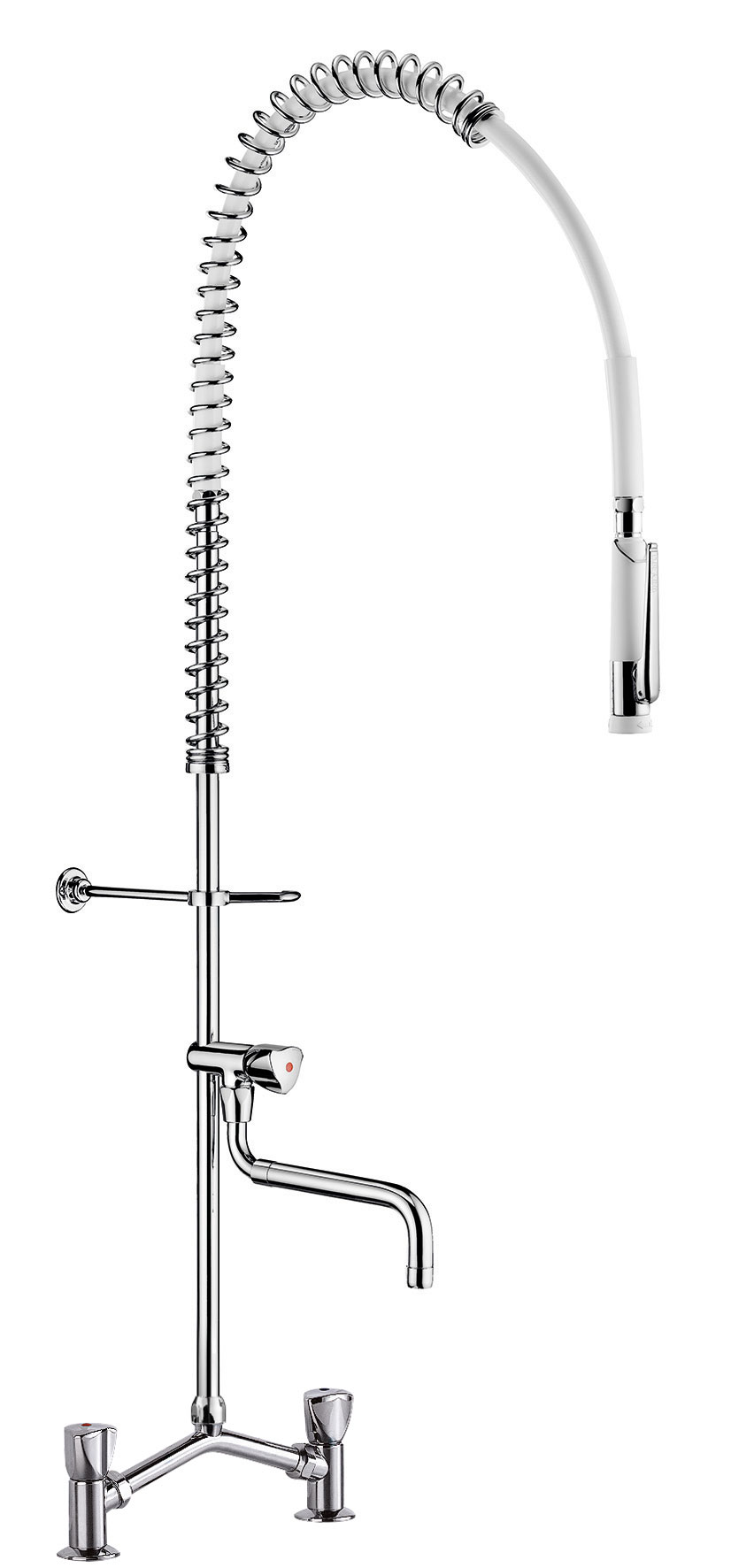

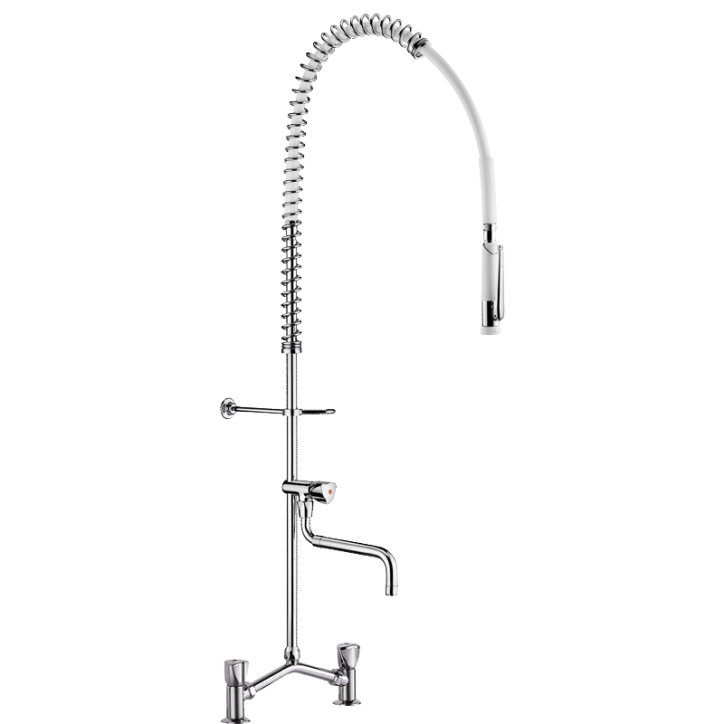

Twin hole pre-rinse set with mixer

Ref. G6532
With bib tap and swivelling telescopic spout
Twin hole pre-rinse set with mixer

Presentation

DESCRIPTION

Twin hole pre-rinse set with mixer

Ref. G6532
Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Deck-mounted twin hole mixer with adjustable centres from 100 - 240mm with:
- valve heads with control knobs.
- offset inlet connections with M1/2" tails.
- supplied with non-return valves
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- 20 lpm flow rate at the outlet.
- valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray and shock-resistant tip.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse sets can be installed close to the splashback.

2024 UK public price excluding VAT: £835.82

ADVANTAGES

Remplissage rapide

Rapid fill: full flow rate 20 lpm

Confort - Ergonomie - Déclenchement souple

Telescopic, swivelling rapid-fill spout

Anti-vandalisme

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Characteristics

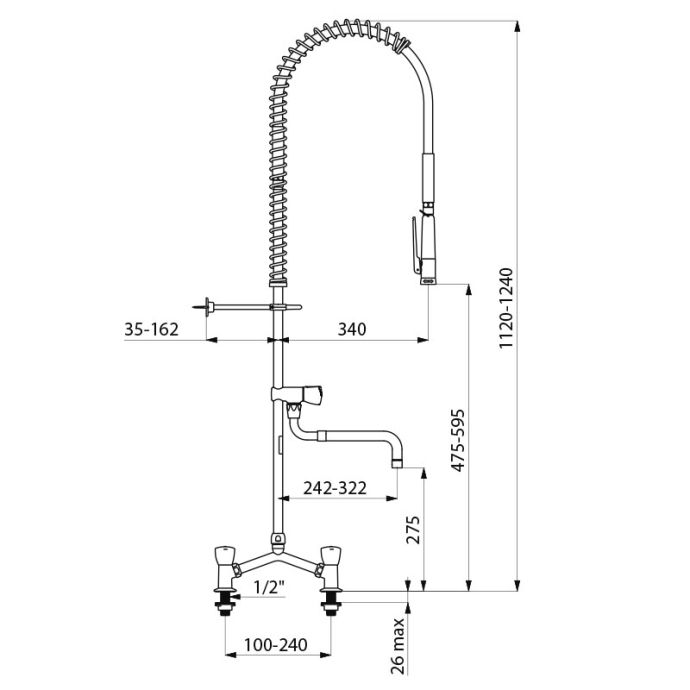

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. G6532
Connector M1/2"
Height 1125 - 1245mm
Drop height 360 - 600mm
Flow rate 20 lpm with the bib tap; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year
Repairability
Twin hole pre-rinse set with mixer
Ref. G6532

Downloads

DOWNLOADS

Twin hole pre-rinse set with mixer

Ref. G6532

To download one or several documents linked to this product, please select the type of file you require :

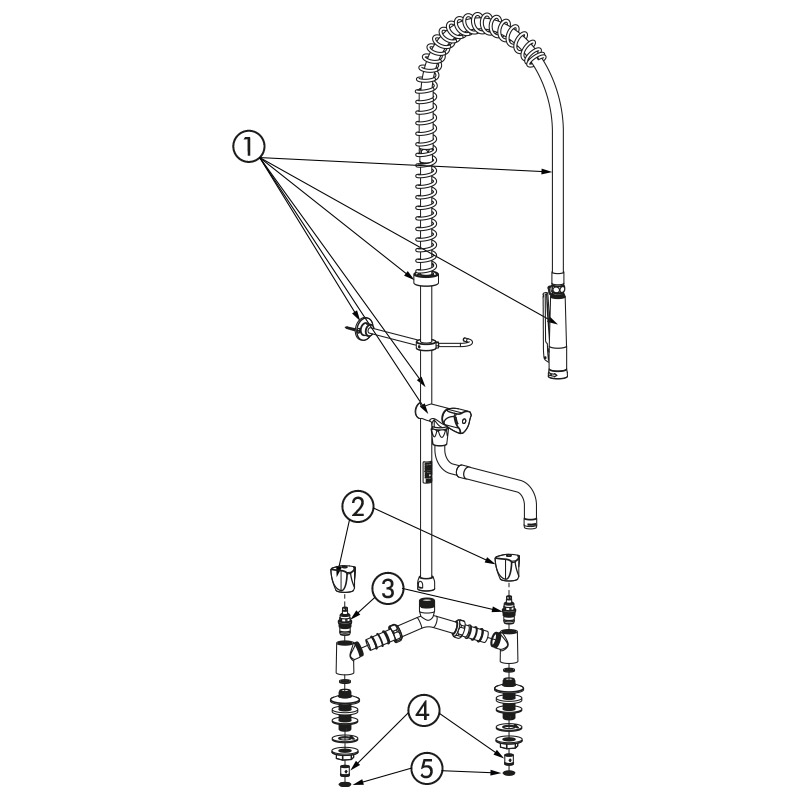

Spare parts

SPARE PARTS

Twin hole pre-rinse set with mixer

Ref. G6532
1. 433220
White pe-rinse set with no valve
2. G6559
Subassembly for deck-mounted mixer

VARIANTS

G6832 Hand spray with scale-resistant nipples - Bib tap and telescopic spout £877.88 excl. VAT
G6833 Hand spray with scale-resistant nipples - Without bib tap £717.29 excl. VAT
G6533 Hand spray with scale-resistant nozzle - Without bib tap £675.27 excl. VAT
