Twin hole pre-rinse set with mixer

Ref. G6533
Without bib tap
Twin hole pre-rinse set with mixer

Presentation

DESCRIPTION

Twin hole pre-rinse set with mixer

Ref. G6533
Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- valve heads with control knobs.
- offset inlet connections with M1/2" tails.
- supplied with non-return valves.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse sets can be installed close to the splashback.

2024 UK public price excluding VAT: £675.27

ADVANTAGES

Endurance - Fiabilité

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Characteristics

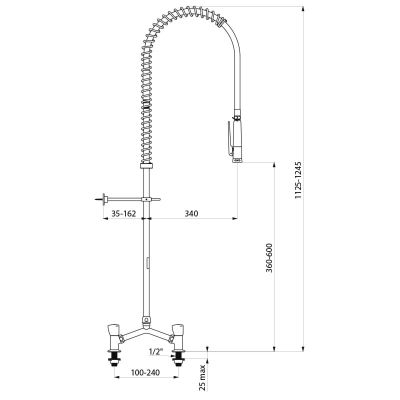

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. G6533
Connector M1/2"
Height 1125 - 1245mm
Drop height 360 - 600mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo Belgaqua ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage 2 trous avec mélangeur

Ref. G6533

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

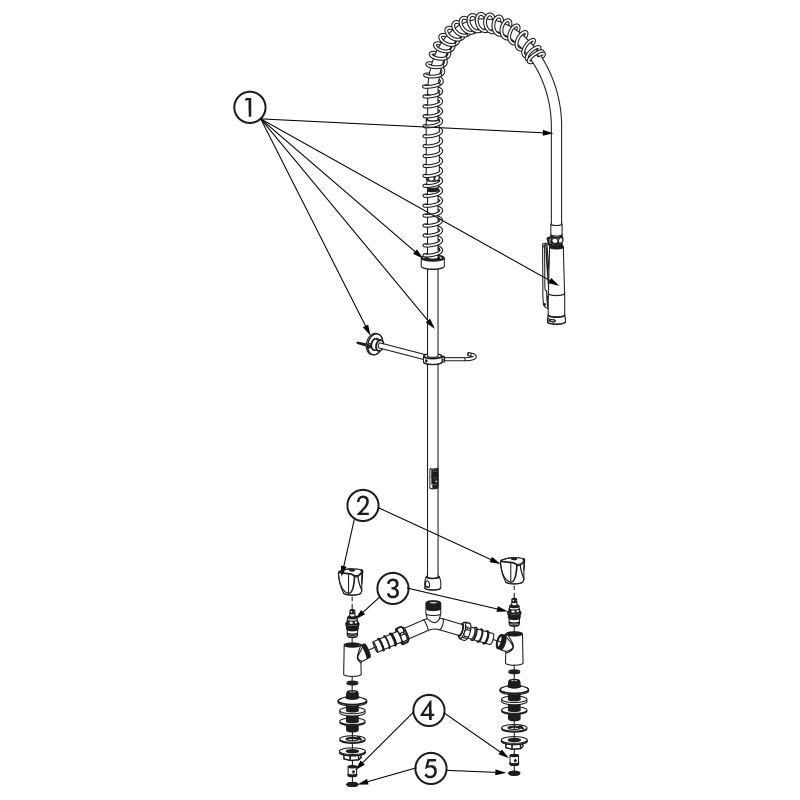

SPARE PARTS

Twin hole pre-rinse set with mixer

Ref. G6533
1. 433020
White pre-rinse set with no valve
2. G6559
Subassembly for deck-mounted mixer

VARIANTS

G6832 Hand spray with scale-resistant nipples - Bib tap and telescopic spout £877.88 excl. VAT
G6833 Hand spray with scale-resistant nipples - Without bib tap £717.29 excl. VAT
G6532 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout £835.82 excl. VAT

VARIANTS

G6832 Hand spray with scale-resistant nipples - Bib tap and telescopic spout £877.88 excl. VAT
G6833 Hand spray with scale-resistant nipples - Without bib tap £717.29 excl. VAT
G6532 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout £835.82 excl. VAT
