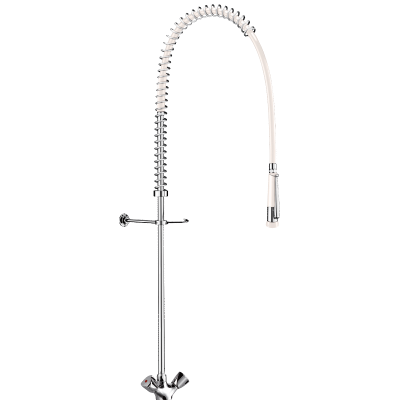

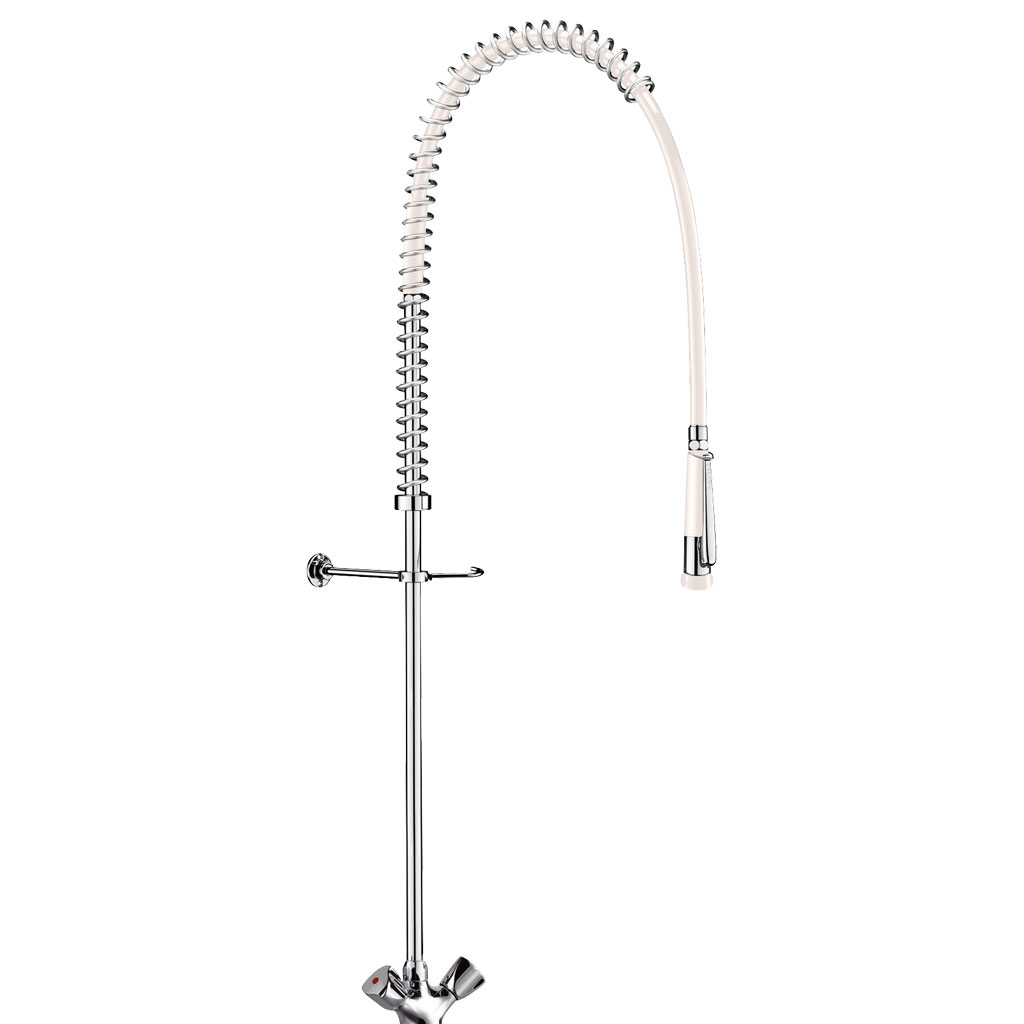

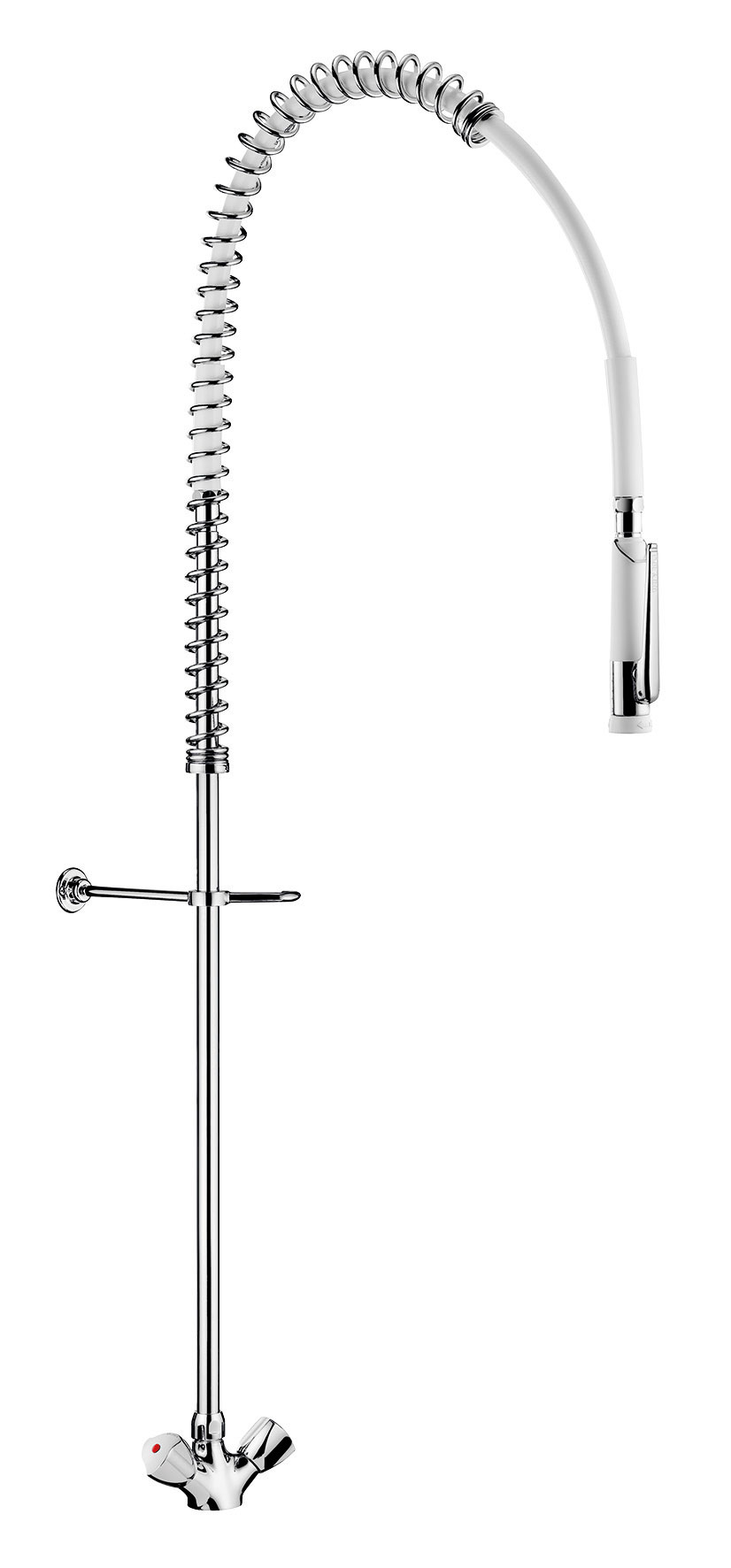

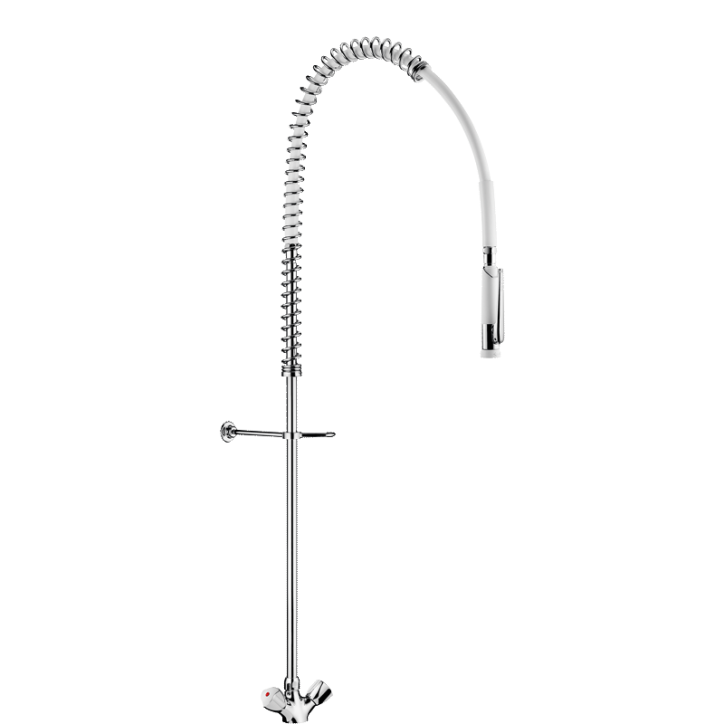

Pre-rinse set with mixer

Ref. G6633
Without bib tap
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. G6633
Complete pre-rinse set without bib tap.
Suitable for intensive use in professional kitchens.
Single hole deck-mounted mixer with:
- valve head with control knobs.
- F3/8" flexible connectors and non-return valves.
- reinforced fixing via 2 threaded rods and back-nuts.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray and shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £639.35

ADVANTAGES

Anti-vandalisme

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. G6633
Connector F3/8"
Height 1075 - 1195mm
Drop height 310 - 550mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. G6633

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

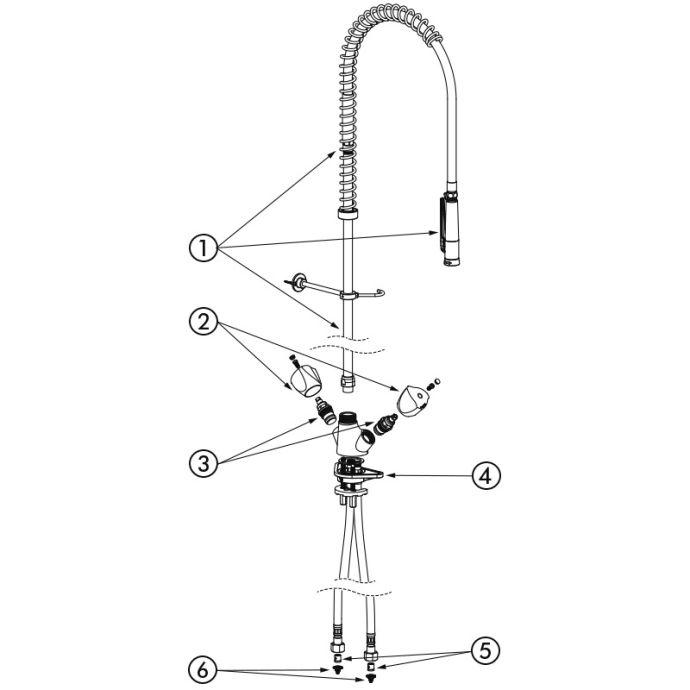

SPARE PARTS

Pre-rinse set with mixer

Ref. G6633
1. 433020
White pre-rinse set with no valve
2. 366015.2P
Bare LONG LIFE valve head
3. 256P
Fixing plate
4. 900010
Non-return valve
5. 60438.10P
Conical filter
