Wall-hung trough urinal

Ref. 130120
Polished satin 304 stainless steel - L. 2400 mm
Wall-hung trough urinal

Presentation

DESCRIPTION

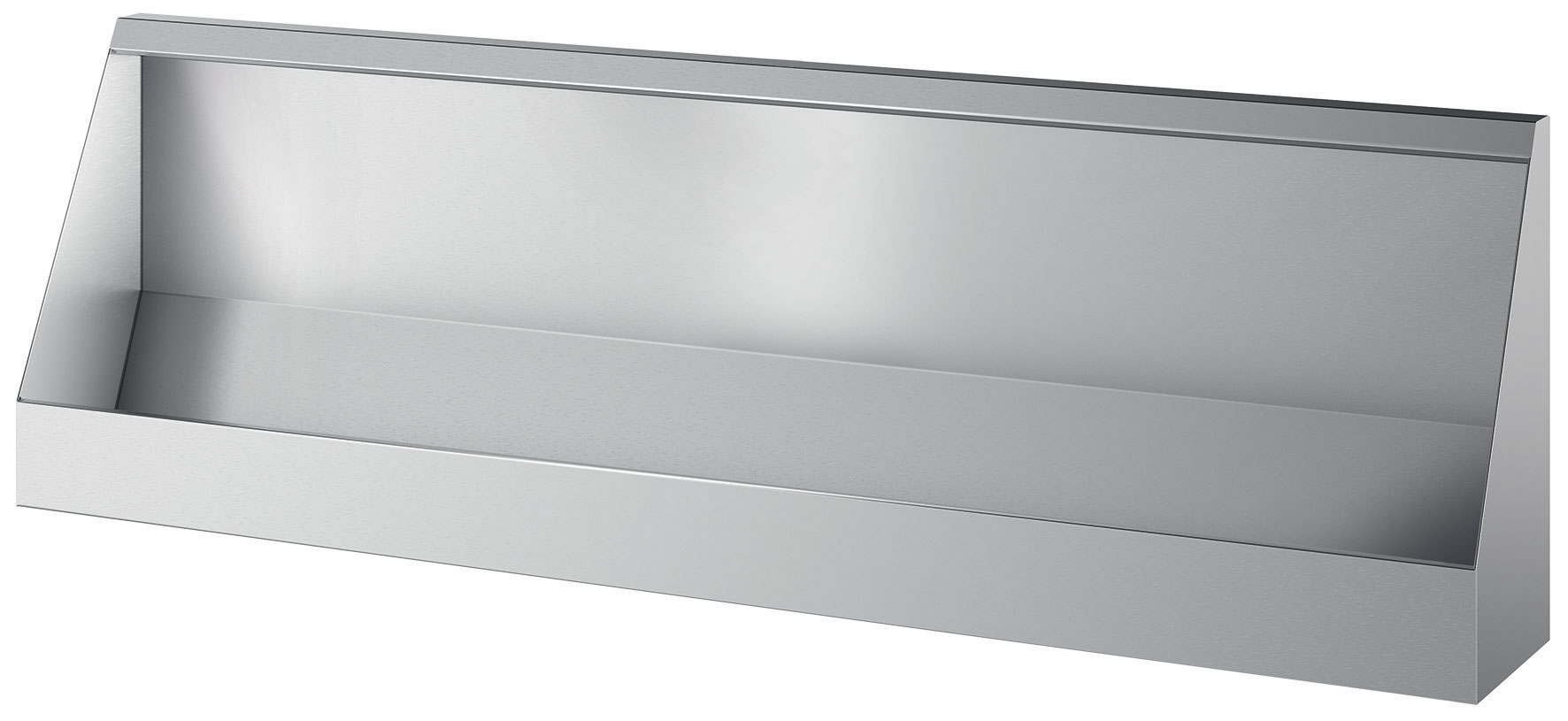

Wall-hung trough urinal

Ref. 130120
Wall-hung trough urinal, 2400 x 575 x 275mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsing of urinal surface.Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 32.1kg.

2024 UK public price excluding VAT: £1,290.74

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

TECHNICAL CHARACTERISTICS

Wall-hung trough urinal

Ref. 130120
Supply Top inlet/exposed
Height 575mm
Length 275mm
Width 2400mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Certificates Logo PZH
Warranty 30-Year
Wall-hung trough urinal
Ref. 130120

Downloads

DOWNLOADS

Urinoir mural collectif

Ref. 130120

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

130100 2 users - L. 1200mm £801.61 excl. VAT
130110 3 users - L. 1800mm £1,073.37 excl. VAT
