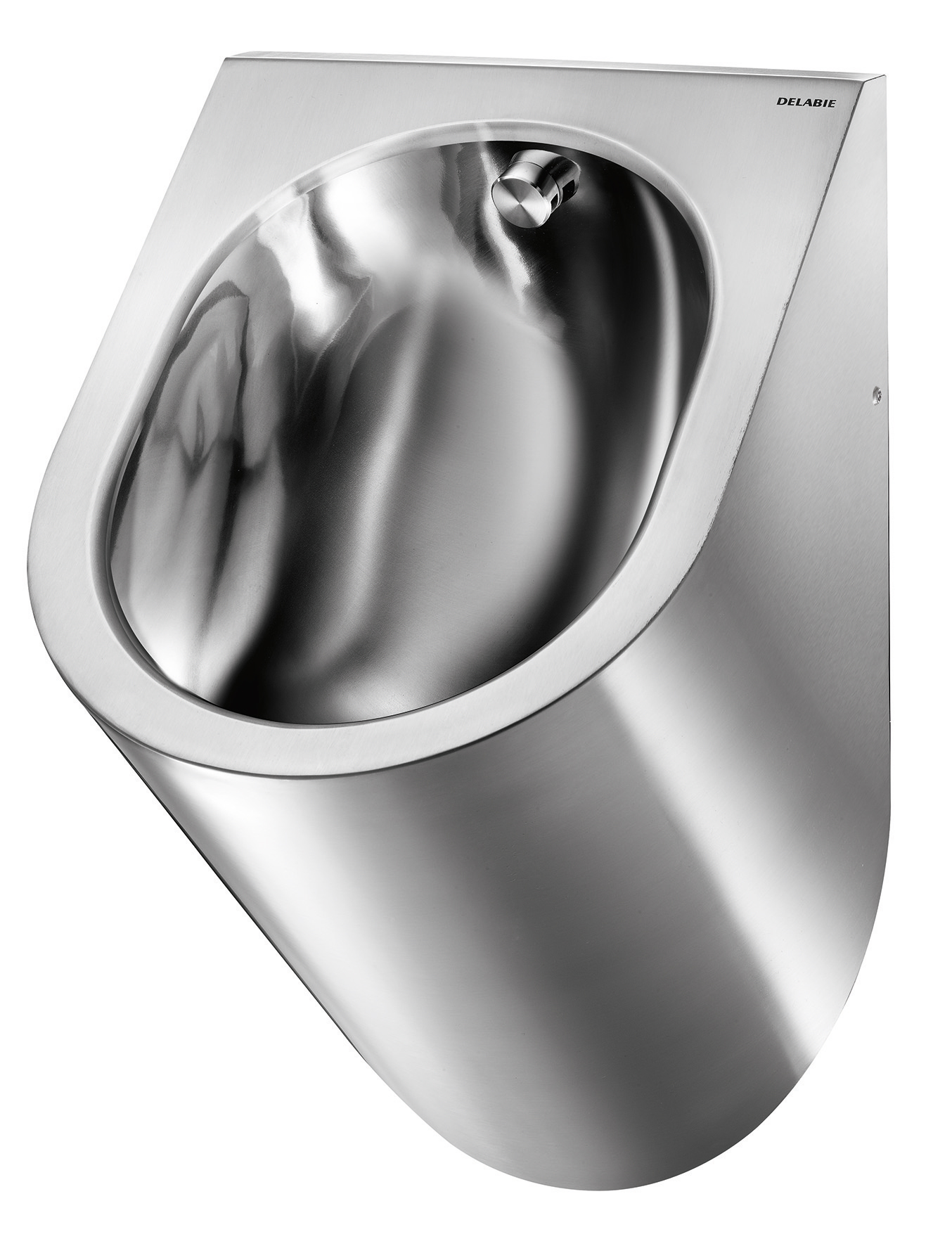

DELTA wall-hung urinal

Ref. 134772
Dual finish 304 stainless steel - Rear water inlet
DELTA wall-hung urinal

Presentation

DESCRIPTION

DELTA wall-hung urinal

Ref. 134772
Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel.
Dual finish: bright polished pan interior and polished satin exterior.
Stainless steel thickness: 1.2mm.
Rear (recessed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap. Supplied with fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.
30-year warranty.

2024 UK public price excluding VAT: £742.02

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

TECHNICAL CHARACTERISTICS

DELTA wall-hung urinal

Ref. 134772
Supply From the rear / Recessed
Height 585mm
Length 385mm
Width 350mm
Thickness 1.2mm
Finish Dual finish 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year
DELTA wall-hung urinal
Ref. 134772

Downloads

DOWNLOADS

Urinoir design DELTA

Ref. 134772

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

134770 Recessed inlet - Polished satin finish £618.34 excl. VAT
134170 Exposed inlet - Recessed waste £618.34 excl. VAT
134710 Exposed inlet - Recessed or exposed waste £618.34 excl. VAT
