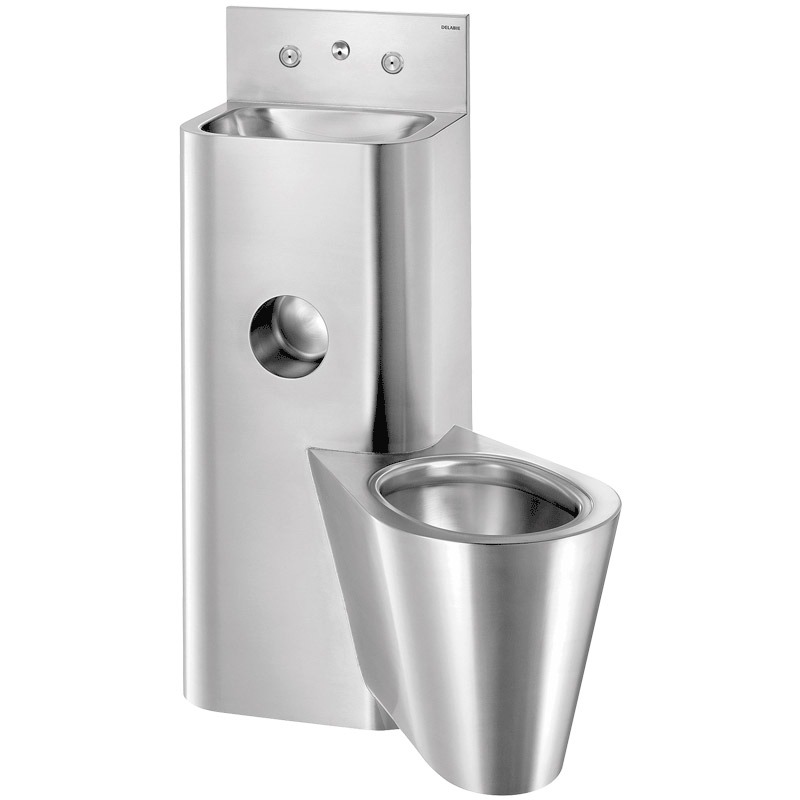

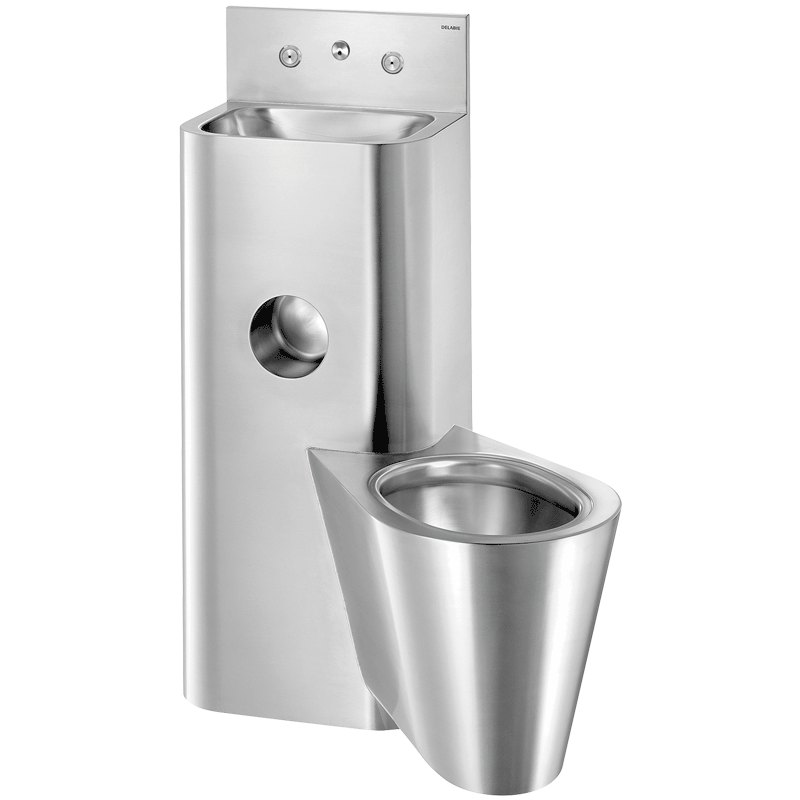

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300
Polished satin 304 stainless steel, cross wall - wall-hung WC on right
Polished satin 304 stainless steel, cross wall - wall-hung WC on right
DESCRIPTION
KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300Combination unit: washbasin and suspended WC pan on right sidewith recessed toilet roll holder.
Wall-mounted with cross wall installation via a service duct.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.

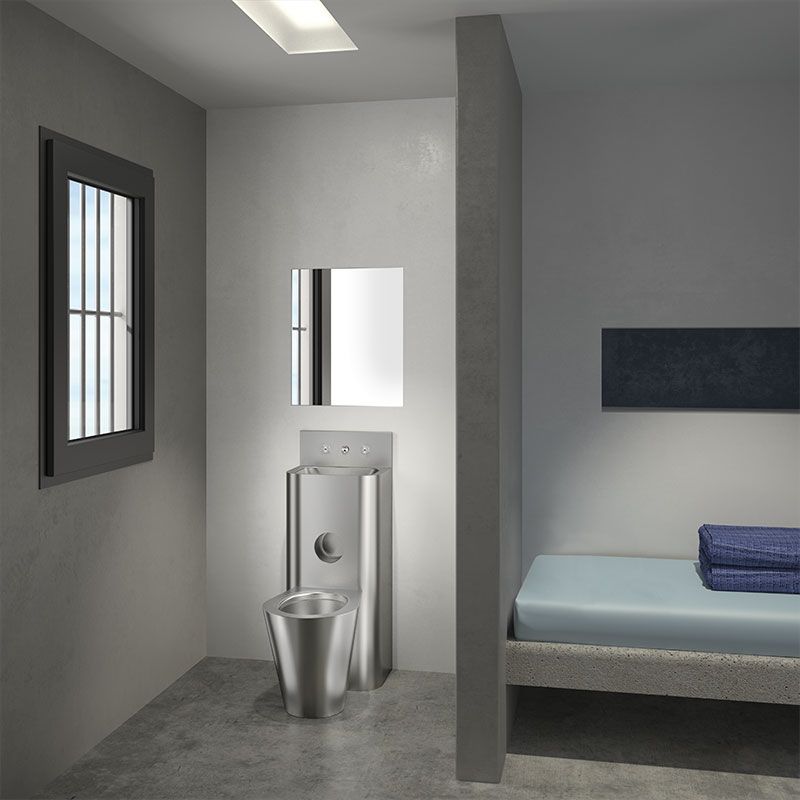

Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlets: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130003]
Wall-mounted with cross wall installation via a service duct.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlets: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130003]
2024 UK public price excluding VAT: £2,858.00
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for secure sector

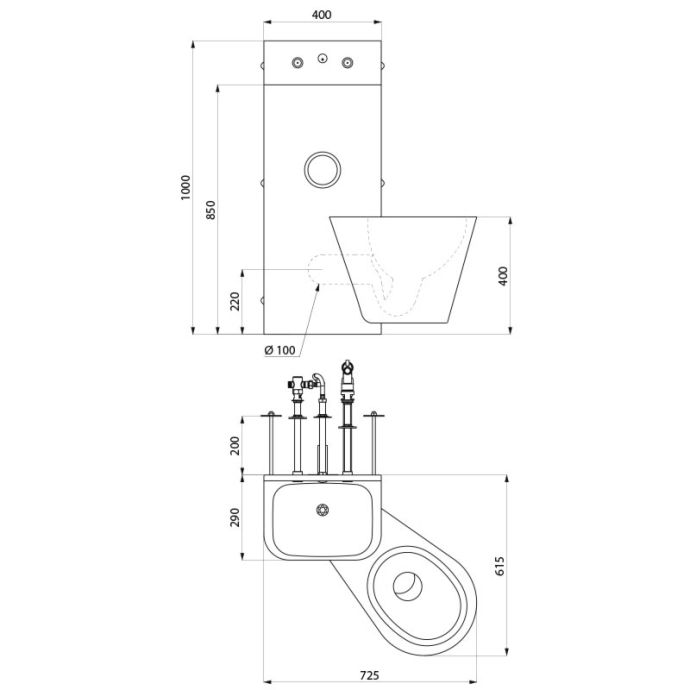

TECHNICAL CHARACTERISTICS
KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300| Height | 1000mm |
| Length | 615mm |
| Width | 725mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 166400 | Wall-mounted WC - WC pan on the left side | £2,858.00 excl. VAT | |
|---|---|---|---|
| 166500 | Wall-mounted WC - centered WC pan | £2,858.00 excl. VAT | |
| 166600 | Floor-standing WC - WC pan on the right side | £2,858.00 excl. VAT | |
| 166700 | Floor-standing WC - WC pan on the left side | £2,858.00 excl. VAT | |
| 166800 | Floor-standing WC - centered WC pan | £2,858.00 excl. VAT |
Associated products
KOMPACT TC washbasin and floor-standing WC combination
Polished satin 304 stainless steel, cross wall - floor mount WC on RHS
Ref. 166600
KOMPACT TC washbasin and wall-hung WC combination
Polished satin 304 stainless steel, cross wall - wall-hung WC on left
Ref. 166400
KOMPACT TC washbasin and wall-hung WC combination
Polished satin 304 stainless steel - cross wall - wall-hung central WC
Ref. 166500
VARIANTS
| 166400 | Wall-mounted WC - WC pan on the left side | £2,858.00 excl. VAT | |
|---|---|---|---|
| 166500 | Wall-mounted WC - centered WC pan | £2,858.00 excl. VAT | |
| 166600 | Floor-standing WC - WC pan on the right side | £2,858.00 excl. VAT | |
| 166700 | Floor-standing WC - WC pan on the left side | £2,858.00 excl. VAT | |
| 166800 | Floor-standing WC - centered WC pan | £2,858.00 excl. VAT |
