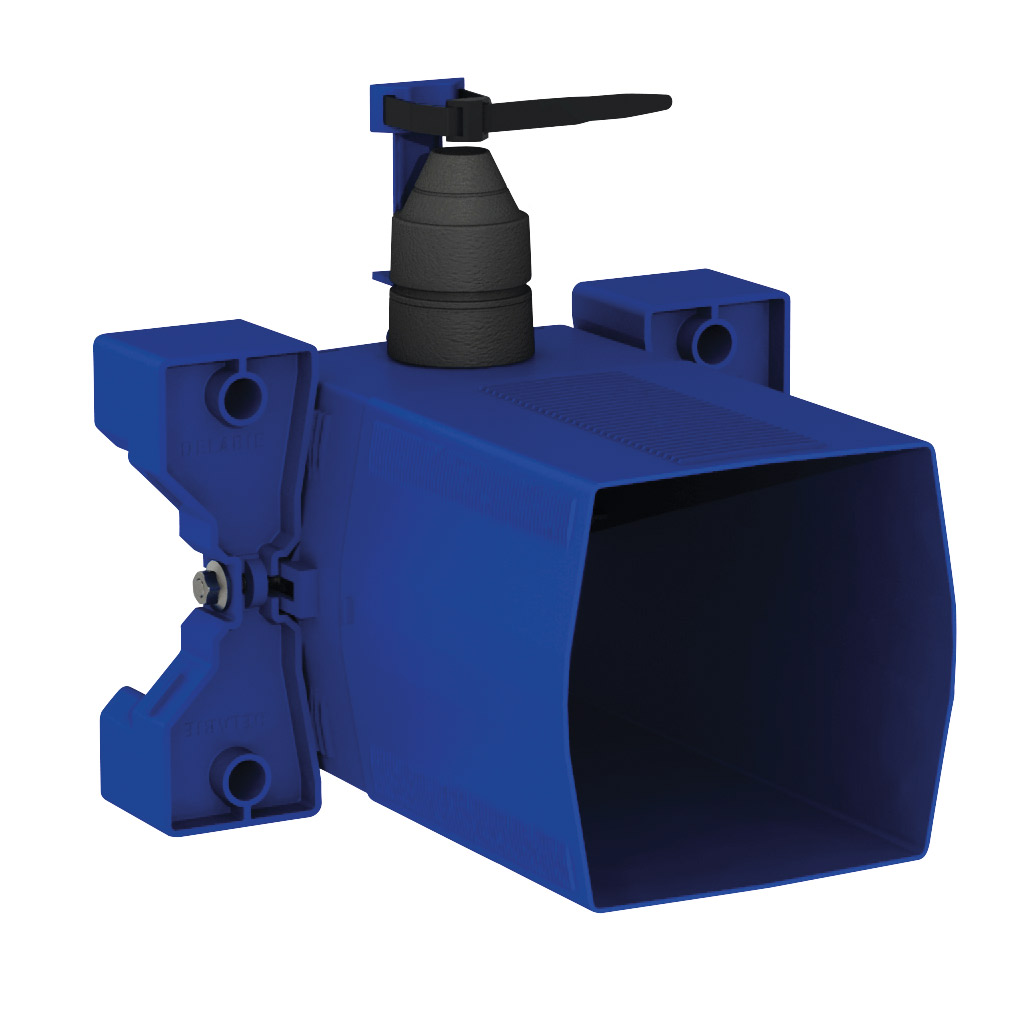

Recessed waterproof housing for TEMPOMATIC WCs

Ref. 464PBOX
Battery-operated, Kit 1/2
Recessed waterproof housing for TEMPOMATIC WCs

Presentation

DESCRIPTION

Recessed waterproof housing for TEMPOMATIC WCs

Ref. 464PBOX
Recessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
30-year warranty.

Order with control-plate references 464006, 464056, 465006 or 465056.

2024 UK public price excluding VAT: £174.94

ADVANTAGES

Maintenance aisée - Installation aisée

Recessed installation is easy

Economie d'eau

100% waterproof housing

Faible espacement au mur - Encombrement limité

Adapt to wall thickness

Piles

Compatible with 6V Lithium batteries

Characteristics

TECHNICAL CHARACTERISTICS

Recessed waterproof housing for TEMPOMATIC WCs

Ref. 464PBOX
Connector F¾"
Technology Electronic and time flow
Height 150mm
Depth 93 to 190mm
Width 225mm
Certificates Logo WRAS Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

Boîtier d'encastrement étanche pour TEMPOMATIC WC

Ref. 464PBOX

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

464SBOX Waterproof housing for mains supply - for walls 10-120mm, F3/4" £174.94 excl. VAT
