DESCRIPTION

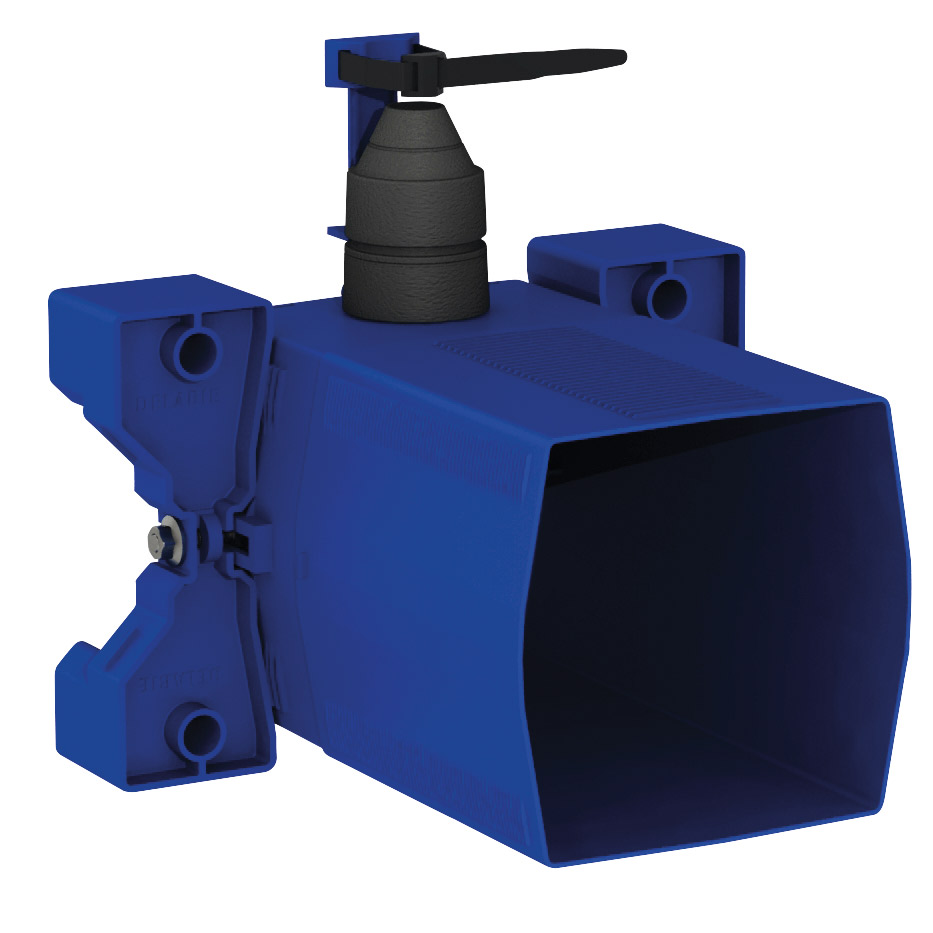

Recessed waterproof housing for TEMPOMATIC WCs
Ref. 464SBOXRecessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with 230/6V mains supply (cable and transformer supplied).
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
30-year warranty.
Order with control-plate with references 464000, 464050, 465000 or 465050.
Flush system without cistern: directly connected to pipework.
Compatible with 230/6V mains supply (cable and transformer supplied).
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
30-year warranty.
Order with control-plate with references 464000, 464050, 465000 or 465050.
2024 UK public price excluding VAT: £174.94
ADVANTAGES
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Recessed installation is easy
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
100% waterproof housing
![Faible espacement au mur - Encombrement limité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
Adapt to wall thickness
![Secteur](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/1/1/3/3113-12-eng-US/secteur.png)
Compatible with mains supply
TECHNICAL CHARACTERISTICS
Recessed waterproof housing for TEMPOMATIC WCs
Ref. 464SBOXConnector | F¾" |
Height | 150mm |
Depth | 93 to 190mm |
Width | 225mm |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
464PBOX | Waterproof housing for battery op. - for walls 10-120mm, F3/4" | £174.94 excl. VAT |
---|
VARIANTS
464PBOX | Waterproof housing for battery op. - for walls 10-120mm, F3/4" | £174.94 excl. VAT |
---|
