DESCRIPTION

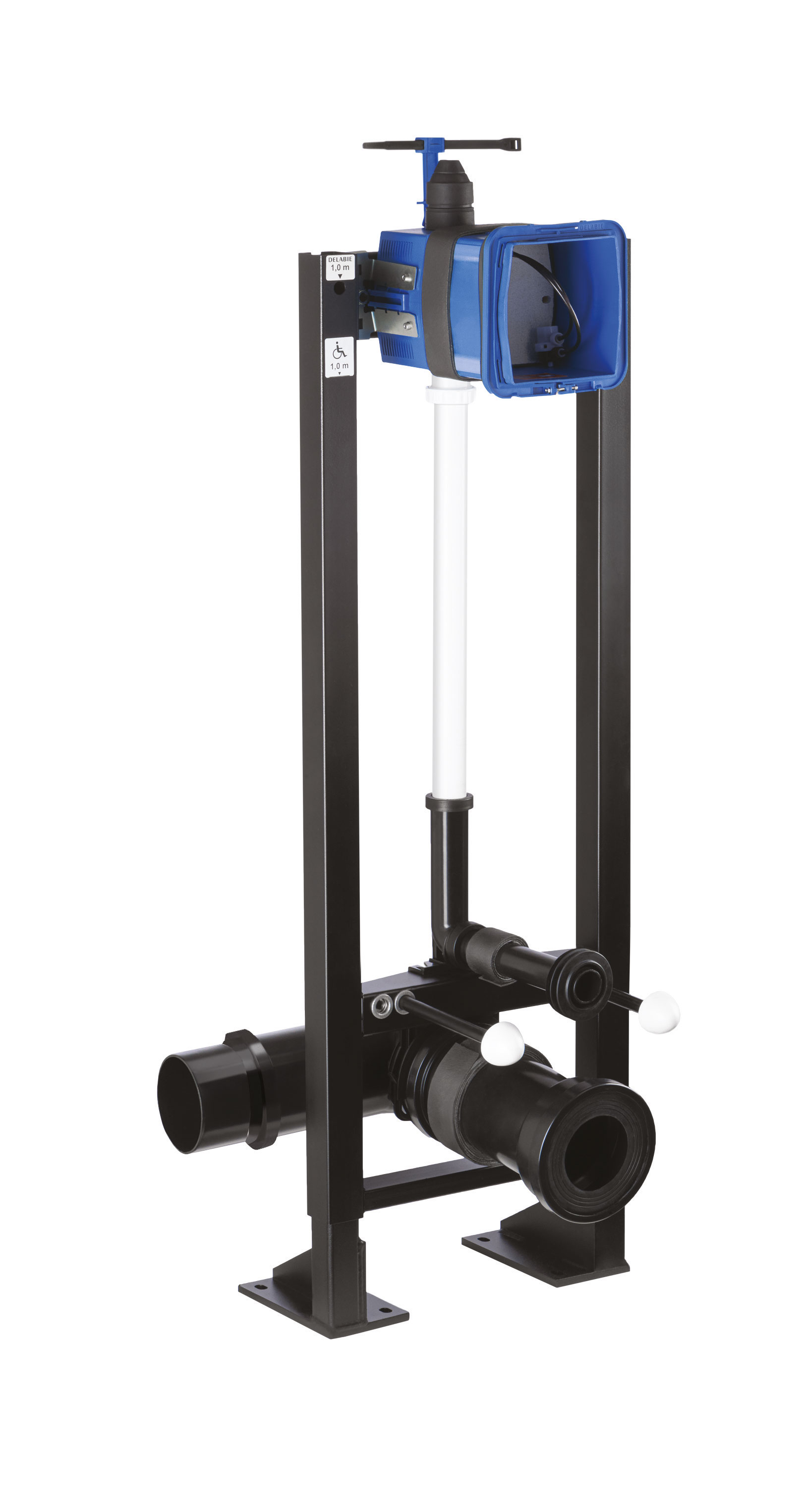

Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065DESelf-supporting frame system for wall hung WCs, kit 1/2
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
2024 UK public price excluding VAT: £783.15
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Fire retardant 60 minutes
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Quick and easy to install: delivered pre-mounted
![Faible espacement au mur - Encombrement limité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
Space saving
![Universel](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/5/1/3/3155-12-eng-US/universel.png)
Adapt to wall thickness
TECHNICAL CHARACTERISTICS
Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065DEConnector | F¾" |
Technology | Time flow |
Height | 1000 to 1320mm |
Depth | 157 - 177mm |
Width | 350mm |
Finish | Black powder-coated steel |
Warranty | ![]() |
