DESCRIPTION

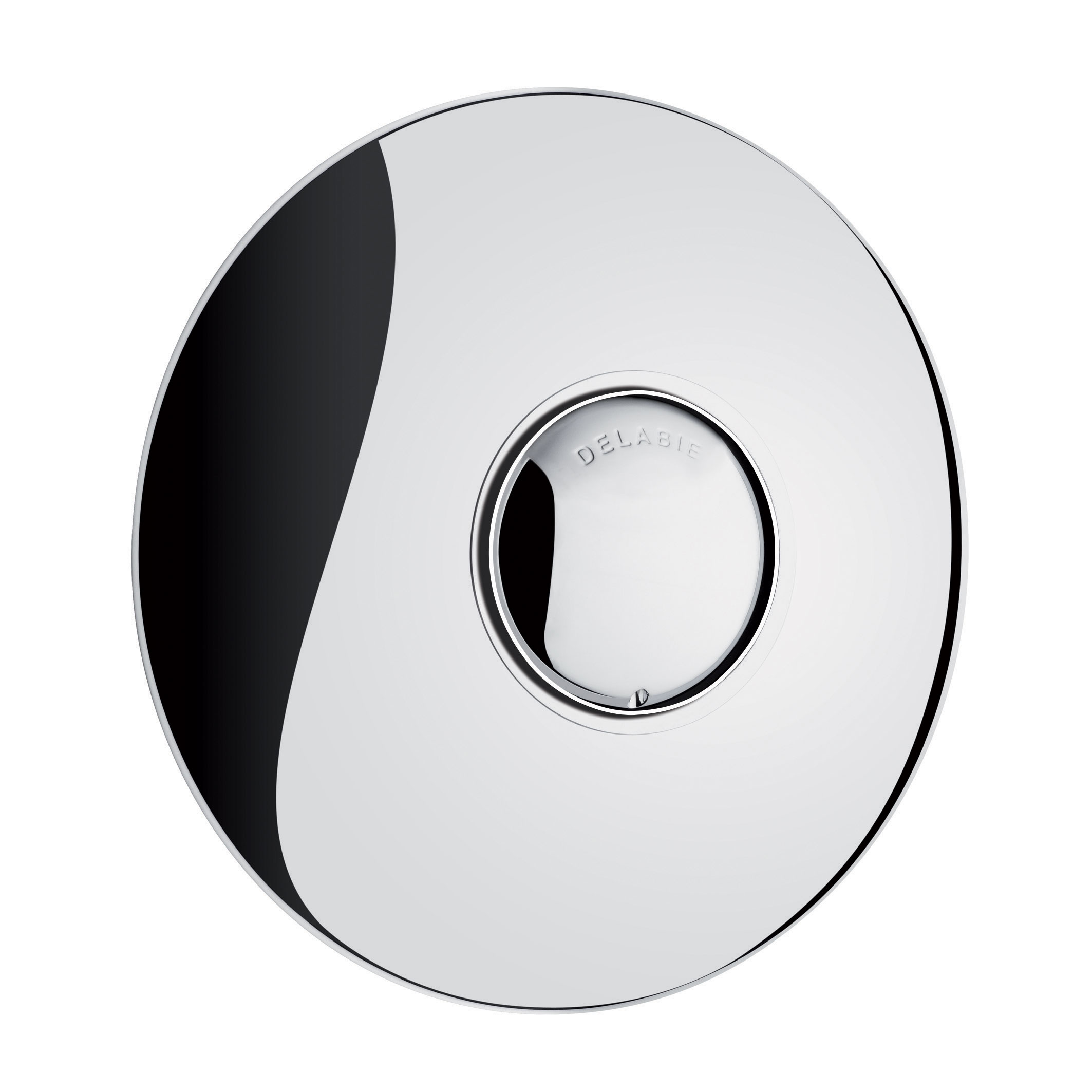

TEMPOFLUX 2 control plate for WCs
Ref. 578212Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall-plate.
6L single flush.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall-plate.
6L single flush.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
2024 UK public price excluding VAT: £105.45
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Direct flush: no water stagnation
![Endurance - Fiabilité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Flush is instantly available
TECHNICAL CHARACTERISTICS
TEMPOFLUX 2 control plate for WCs
Ref. 578212Connector | ¾" |
Technology | Time flow |
Depth | Walls from 10 to 35mm |
Flow rate | 6L |
Diameter | Ø 195mm |
Finish | Chrome-plated metal |
Certificates |
![]() |
Warranty | ![]() |
VARIANTS
578222 | Adjustable dual flush - for walls 10 - 60mm, inline inlet M3/4" | £115.98 excl. VAT | |
---|---|---|---|
578230 | Adjustable. dual flush - for walls 70 - 130mm, inline inlet M3/4" | £194.23 excl. VAT |
