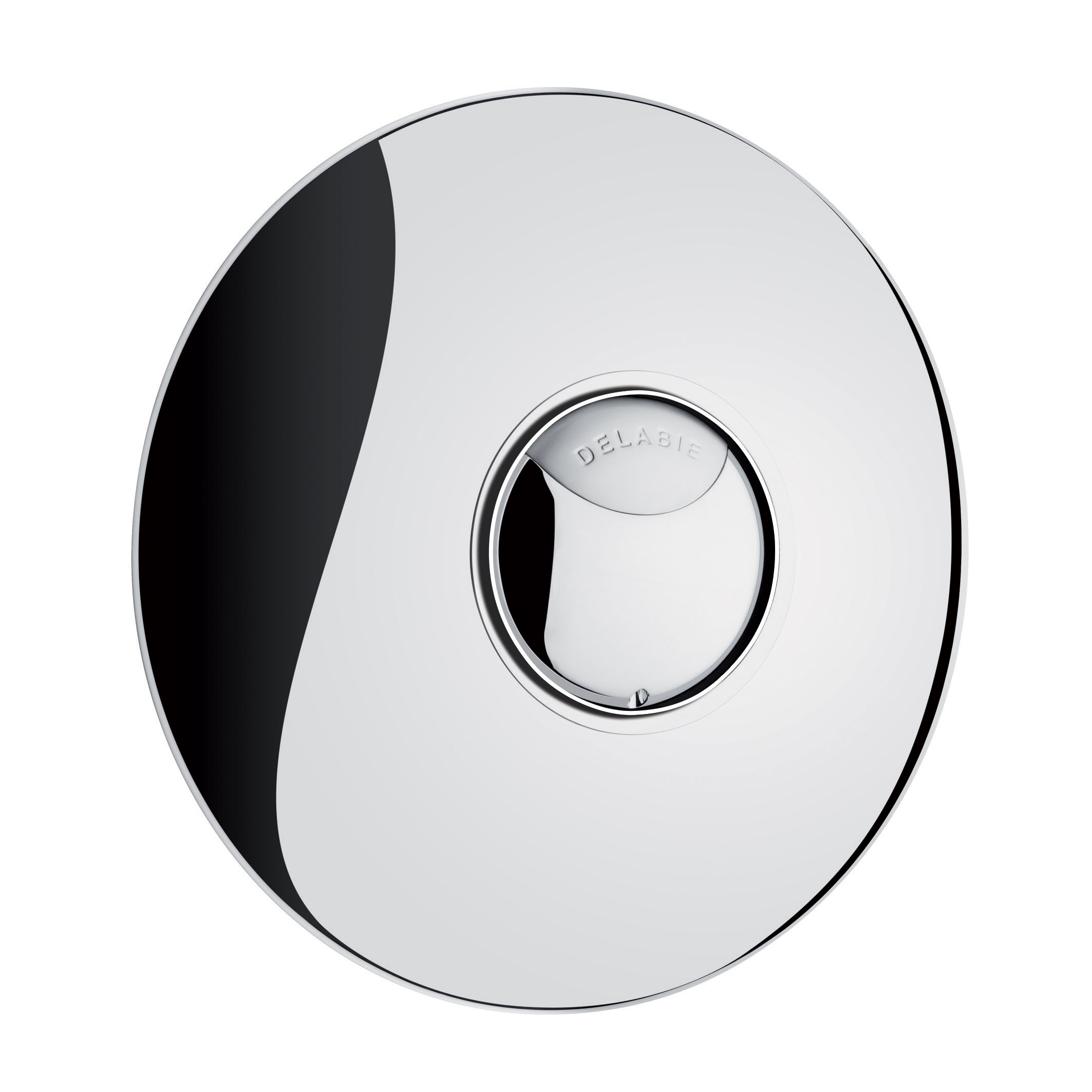

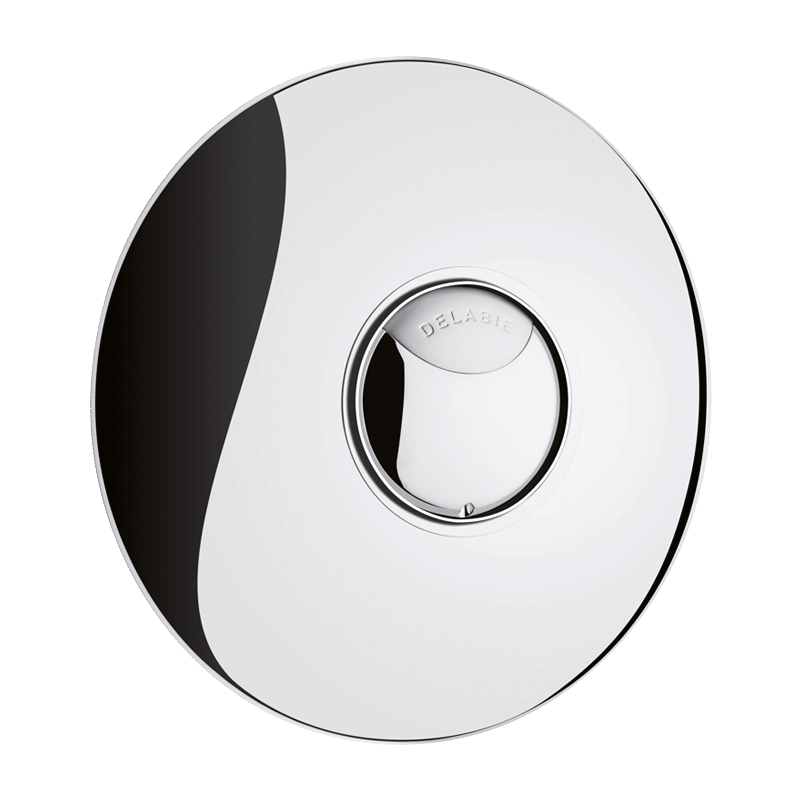

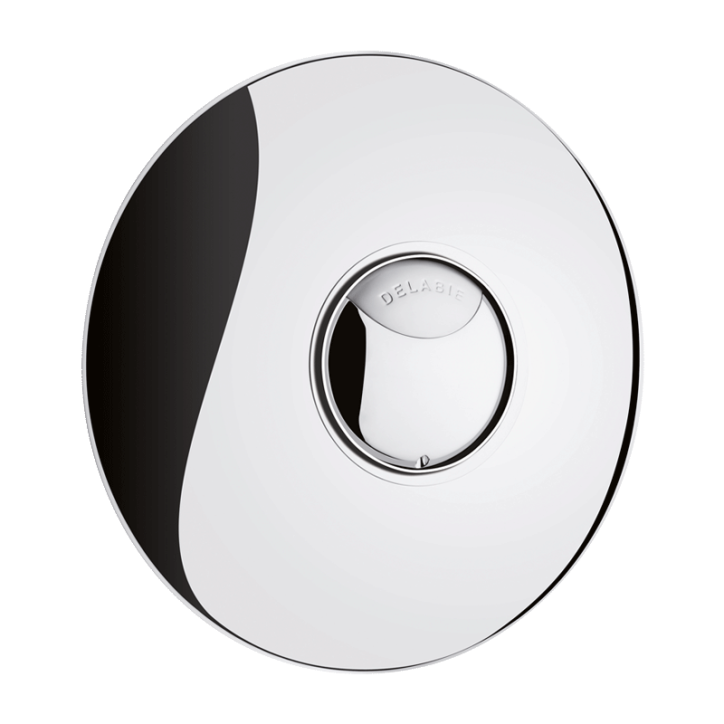

TEMPOFLUX 2 control plate for WCs
Ref. 578230
Soft-touch operation time flow valve, 3L/6L dual flush
Soft-touch operation time flow valve, 3L/6L dual flush
DESCRIPTION
TEMPOFLUX 2 control plate for WCs
Ref. 578230Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:

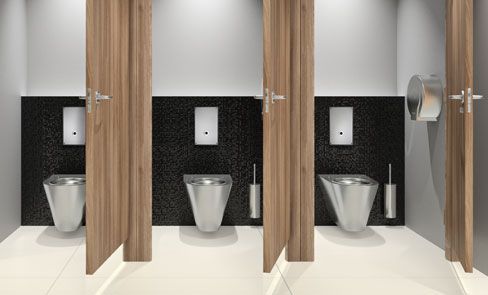

Flush system without cistern, directly connected to pipework.

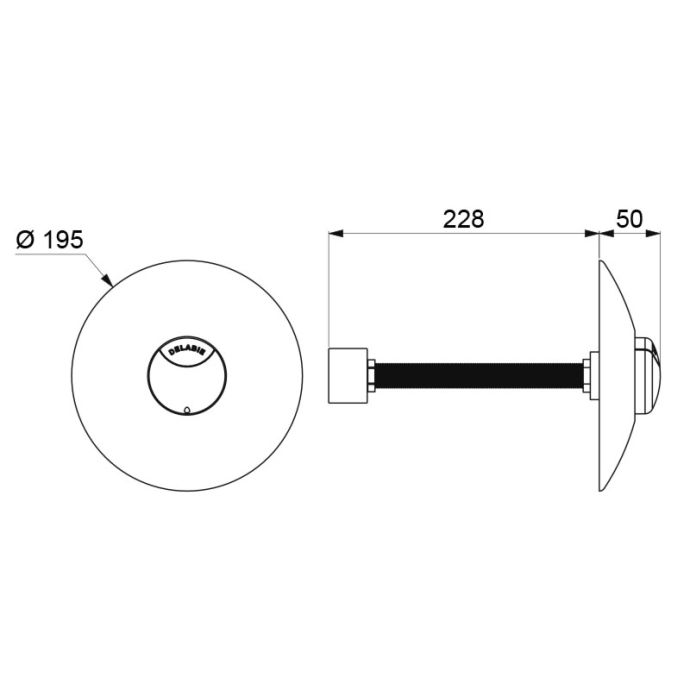

Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
For walls 70 - 130mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.

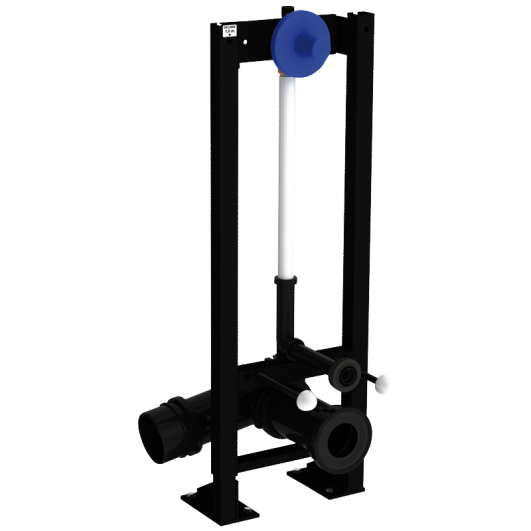

Order with frame system references 578305DE.
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
For walls 70 - 130mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE.
2024 UK public price excluding VAT: £194.23
ADVANTAGES
Soft-touch operation
Direct flush: no water stagnation
Flush is instantly available
3L/6L dual flush, can be adjusted to 2L/4L
TECHNICAL CHARACTERISTICS
TEMPOFLUX 2 control plate for WCs
Ref. 578230Connector | ¾" |
Technology | Time flow |
Depth | Walls from 70 to 130mm |
Flow rate | 3L/6L or 2L/4L |
Diameter | Ø 195mm |
Finish | Chrome-plated metal |
Warranty |
VARIANTS
578222 | Adjustable dual flush - for walls 10 - 60mm, inline inlet M3/4" | £115.98 excl. VAT | |
---|---|---|---|
578212 | Adjustable single flush - for walls 10 - 60mm, inline inlet M3/4" | £105.45 excl. VAT |
VARIANTS
578222 | Adjustable dual flush - for walls 10 - 60mm, inline inlet M3/4" | £115.98 excl. VAT | |
---|---|---|---|
578212 | Adjustable single flush - for walls 10 - 60mm, inline inlet M3/4" | £105.45 excl. VAT |
