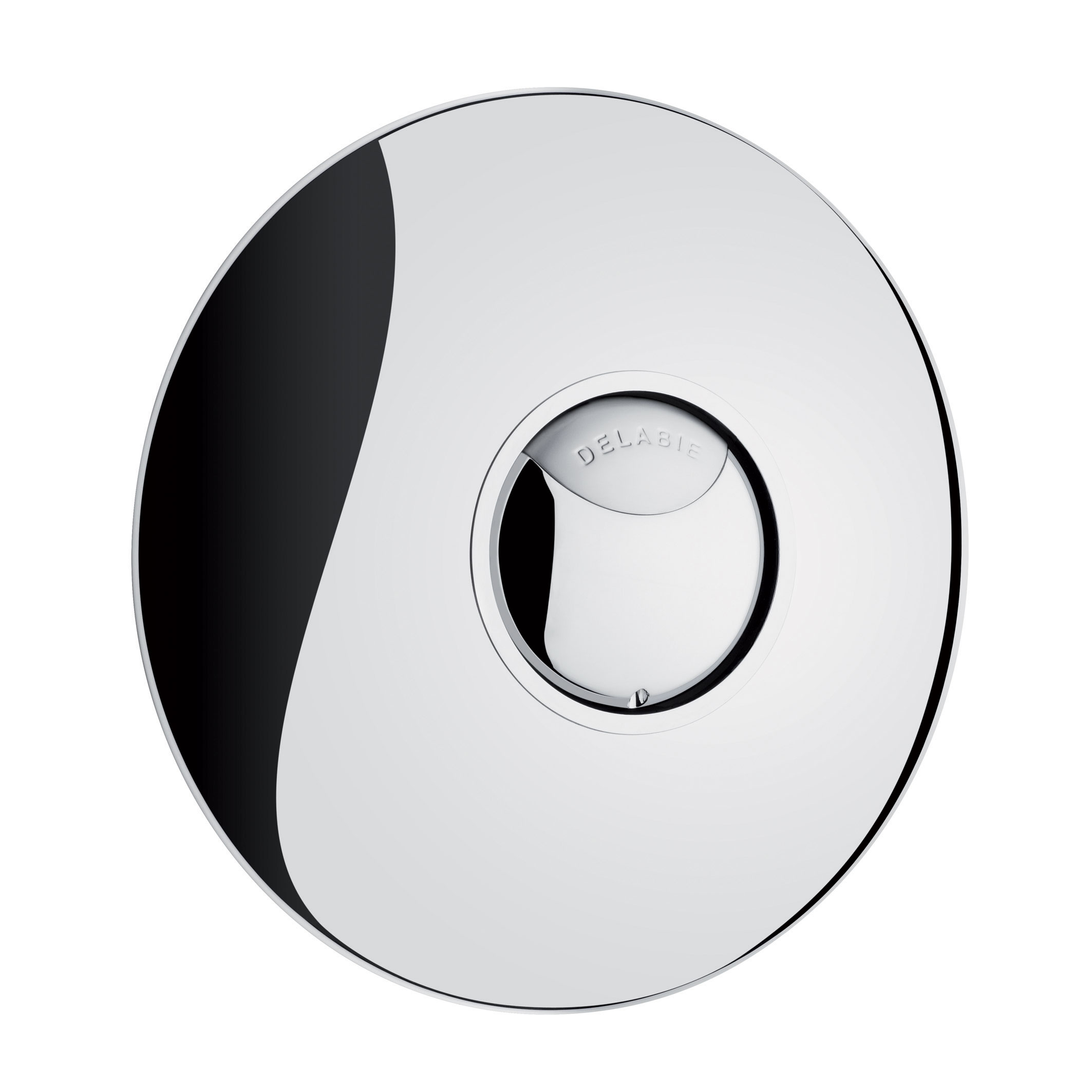

TEMPOFLUX 2 direct flush valve

Ref. 762902
Time flow direct flush WC valve
TEMPOFLUX 2 direct flush valve +

Presentation

DESCRIPTION

TEMPOFLUX 2 direct flush valve

Ref. 762902
Flush system without cistern: directly connected to pipework.
Chrome-plated metal wall plate Ø 195mm.
Concealed mechanical fixing of the wall plate.
Multipurpose recessing housing.
Recessing depth can be adjusted from 0 - 20mm.
3L/6L dual flush, can be adjusted to 2L/4L.
Soft-touch operation.
Vacuum breaker.
Integrated stopcock and flow rate / flush volume adjuster.
Solid brass body.
Chrome-plated metal push-button.
In-line inlet M¾".
Outlet connection for PVC tube Ø 26/32mm.
Acoustic level complies with European standard EN 12541 class II.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Compatible with rain water.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
30-year warranty.

This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproof and any leaks or condensation can drain away (see installation guide).

2024 UK public price excluding VAT: £293.70

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Economie d'eau

Dual flush 3L/6L

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Recessed installation

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 2 direct flush valve

Ref. 762902
Connector 3/4"
Technology Time flow
Flow rate 3L/6L
Finish Chrome-plated metal
Certificates Logo Belgaqua Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Système de chasse d'eau TEMPOFLUX 2

Ref. 762902

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

762901 Adjustable single flush - for walls 0 - 20mm, inline inlet M3/4" £270.94 excl. VAT
