DESCRIPTION

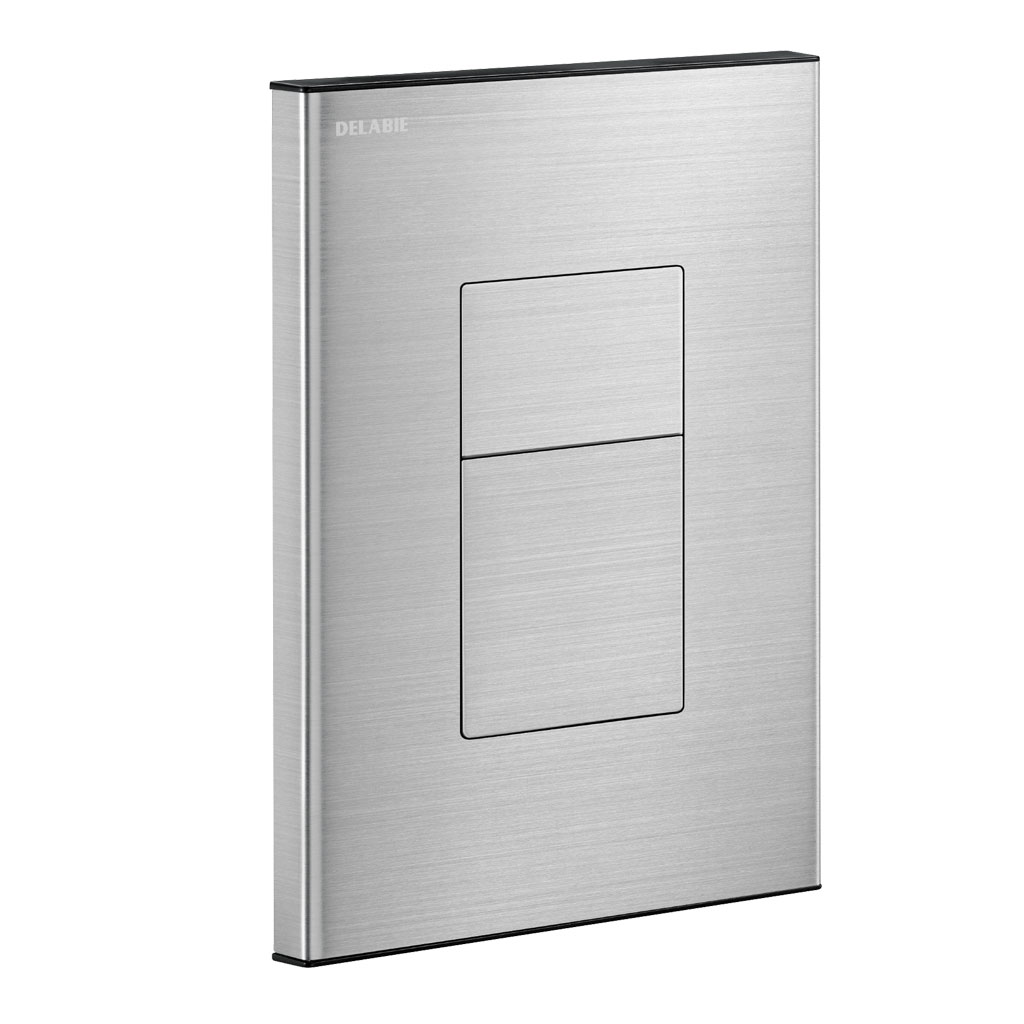

TEMPOFLUX 3 control plate for WCs
Ref. 763000Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2:
Flush system without cistern: directly connected to pipework.
Satin stainless steel plate 210 x 162mm.
Control plate is installed manually via hidden fixings.
TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L. Rectangular design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.
Order with frame system reference 564060DE, 564065DE or 5645065, or with 763BOX recessed housing.
Flush system without cistern: directly connected to pipework.
Satin stainless steel plate 210 x 162mm.
Control plate is installed manually via hidden fixings.
TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L. Rectangular design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.
Order with frame system reference 564060DE, 564065DE or 5645065, or with 763BOX recessed housing.
2024 UK public price excluding VAT: £174.94
ADVANTAGES
Soft-touch operation
Direct flush: no water stagnation
3L/6L dual flush
Maintenance made easy with front access
TECHNICAL CHARACTERISTICS
TEMPOFLUX 3 control plate for WCs
Ref. 763000| Connector | F¾" |
| Technology | Time flow |
| Height | 210mm |
| Width | 162mm |
| Finish | Satin stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 763040 | Dual flush wall plate - chrome pltd metal - 170 x 170mm- adj. volume | £248.58 excl. VAT | |
|---|---|---|---|
| 763041 | Single flush wall plate- chrome pltd metal- 170 x 170mm- adj. volume | £225.65 excl. VAT |

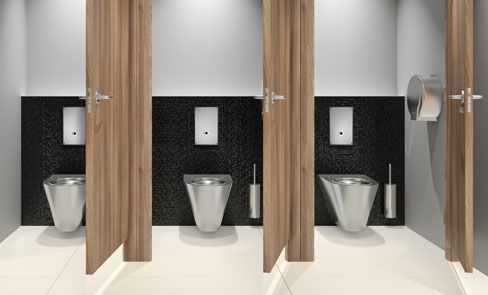

This direct flush WC valve without a cistern is ideal for public buildings: discover its advantages in this video
WC direct flush system, a public revolution
Associated products
TEMPOFIX 3 self-supporting frame system for WCs
For battery-operated electronic or time flow valves- Ø 110mm
Ref. 564065DE
TEMPOFIX 3 wall-mounted frame system for WCs
For time flow or battery-operated electronic valve - Ø 110mm outlet
Ref. 564060DE

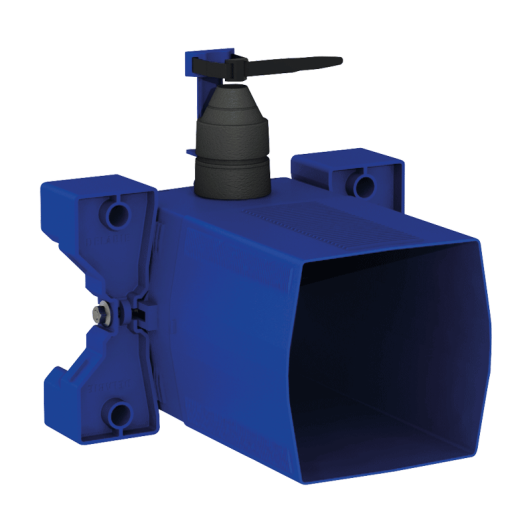

Recessed waterproof housing for TEMPOFLUX 3 WC
For WC time flow valve - Kit 1/2
Ref. 763BOX
VARIANTS
| 763040 | Dual flush wall plate - chrome pltd metal - 170 x 170mm- adj. volume | £248.58 excl. VAT | |
|---|---|---|---|
| 763041 | Single flush wall plate- chrome pltd metal- 170 x 170mm- adj. volume | £225.65 excl. VAT |
This direct flush WC valve without a cistern is ideal for public buildings: discover its advantages in this video
WC direct flush system, a public revolution
