DESCRIPTION

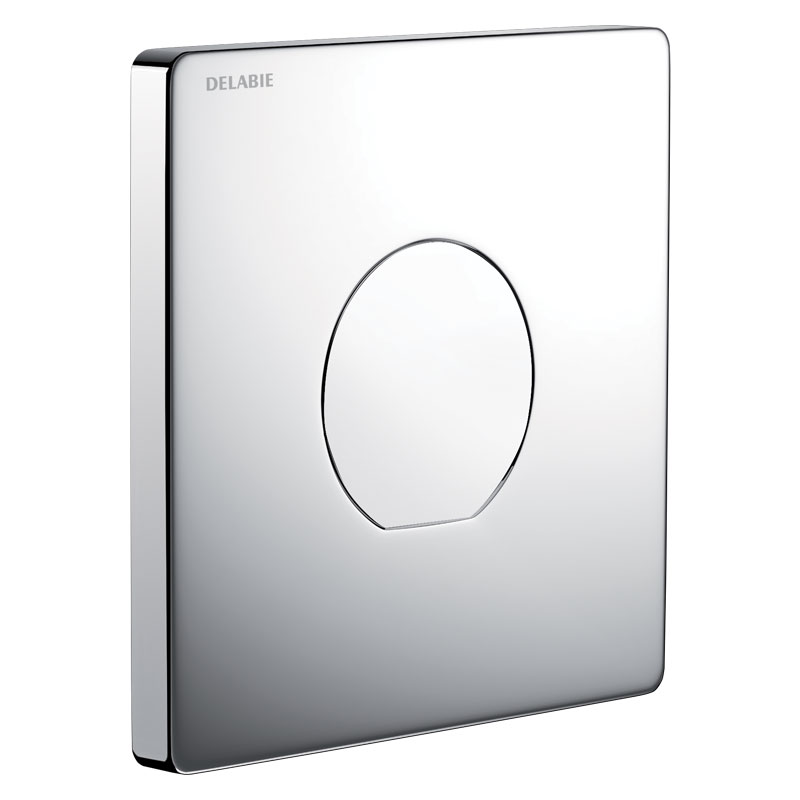

TEMPOFLUX 3 control plate for WCs
Ref. 763041Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2:
Flush system without cistern: directly connected to pipework.
Chrome-plated metal plate 170x 170mm.
Control plate is installed manually via hidden screws.
TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
6L single flush. Round design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.
Order with frame system reference 564065DE or 564060DE, or with 763BOX recessed housing.
Flush system without cistern: directly connected to pipework.
Chrome-plated metal plate 170x 170mm.
Control plate is installed manually via hidden screws.
TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
6L single flush. Round design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.
Order with frame system reference 564065DE or 564060DE, or with 763BOX recessed housing.
2024 UK public price excluding VAT: £225.65
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Direct flush: no water stagnation
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Maintenance made easy with front access
![Anti-blocage](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/7/8/2/2873-15-eng-US/antiblocage.png)
AB anti-blocking system
TECHNICAL CHARACTERISTICS
TEMPOFLUX 3 control plate for WCs
Ref. 763041Connector | F3/4" |
Technology | Time flow |
Height | 170mm |
Width | 170mm |
Finish | Chrome-plated metal |
Certificates |
![]() |
Warranty | ![]() |
VARIANTS
763000 | Dual flush wall plate - brushed st steel - 210 x 162mm - adj. volume | £174.94 excl. VAT | |
---|---|---|---|
763040 | Dual flush wall plate - chrome pltd metal - 170 x 170mm- adj. volume | £248.58 excl. VAT |
VARIANTS
763000 | Dual flush wall plate - brushed st steel - 210 x 162mm - adj. volume | £174.94 excl. VAT | |
---|---|---|---|
763040 | Dual flush wall plate - chrome pltd metal - 170 x 170mm- adj. volume | £248.58 excl. VAT |
