TEMPOFLUX 3 AB side control flush system
Ref. 763300
Time flow valve AB, soft-touch side control, recessed
Time flow valve AB, soft-touch side control, recessed
DESCRIPTION
TEMPOFLUX 3 AB side control flush system
Ref. 763300Flush system without cistern: directly connected to pipework.

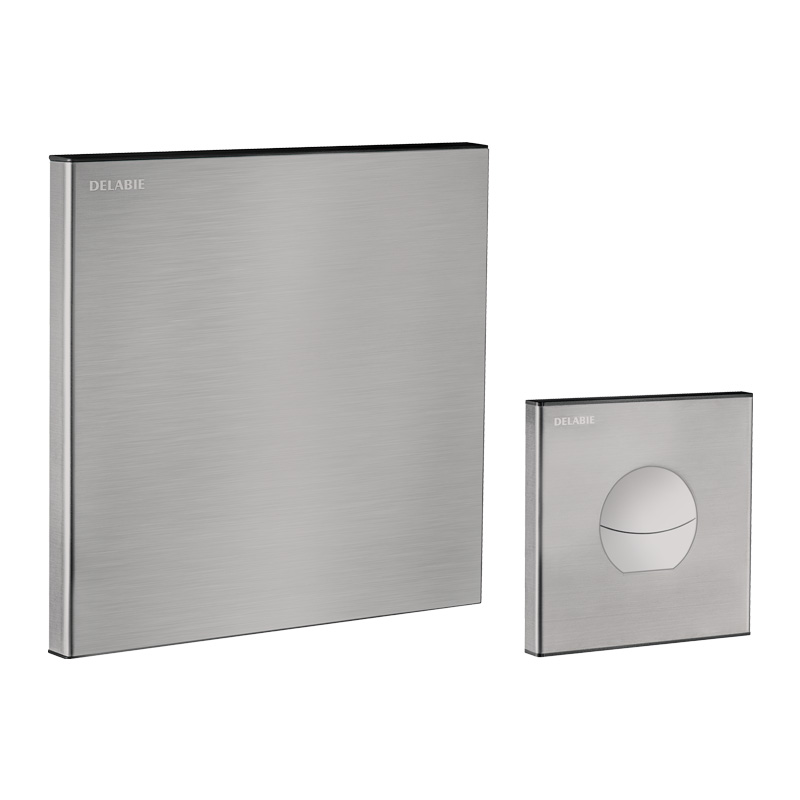

Satin stainless steel access plate to mechanism 186 x 186mm.
Satin stainless steel time flow control plate and chrome-plated buttons 90 x 90mm.
Control plate is installed manually via hidden screws.
Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment are integrated and accessible from the front.
- Cartridge and filter are accessible from the front.
- TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
- Backflow prevention device inside the housing.
Soft-touch operation.
AB anti-blocking system: water will flow only when the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L.
Outlet connection for PVC tube Ø26/32mm.
Acoustic level complies with European standard EN 12541 class II.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility
30-year warranty.
Satin stainless steel access plate to mechanism 186 x 186mm.
Satin stainless steel time flow control plate and chrome-plated buttons 90 x 90mm.
Control plate is installed manually via hidden screws.
Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment are integrated and accessible from the front.
- Cartridge and filter are accessible from the front.
- TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
- Backflow prevention device inside the housing.
Soft-touch operation.
AB anti-blocking system: water will flow only when the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L.
Outlet connection for PVC tube Ø26/32mm.
Acoustic level complies with European standard EN 12541 class II.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility
30-year warranty.
2024 UK public price excluding VAT: £434.83
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch side control, disabled-friendly
![Anti-blocage](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/7/8/2/2873-15-eng-US/antiblocage.png)
Satin stainless steel anti-blocking buttons/plates
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Reliable system - Easy maintenance from front
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
3L/6L flush volume can be adjusted to 2L/4L
TECHNICAL CHARACTERISTICS
TEMPOFLUX 3 AB side control flush system
Ref. 763300Connector | F¾" |
Technology | Time flow side control |
Length | 186mm |
Width | 186mm |
Finish | Satin stainless steel |
Warranty | ![]() |
