DESCRIPTION

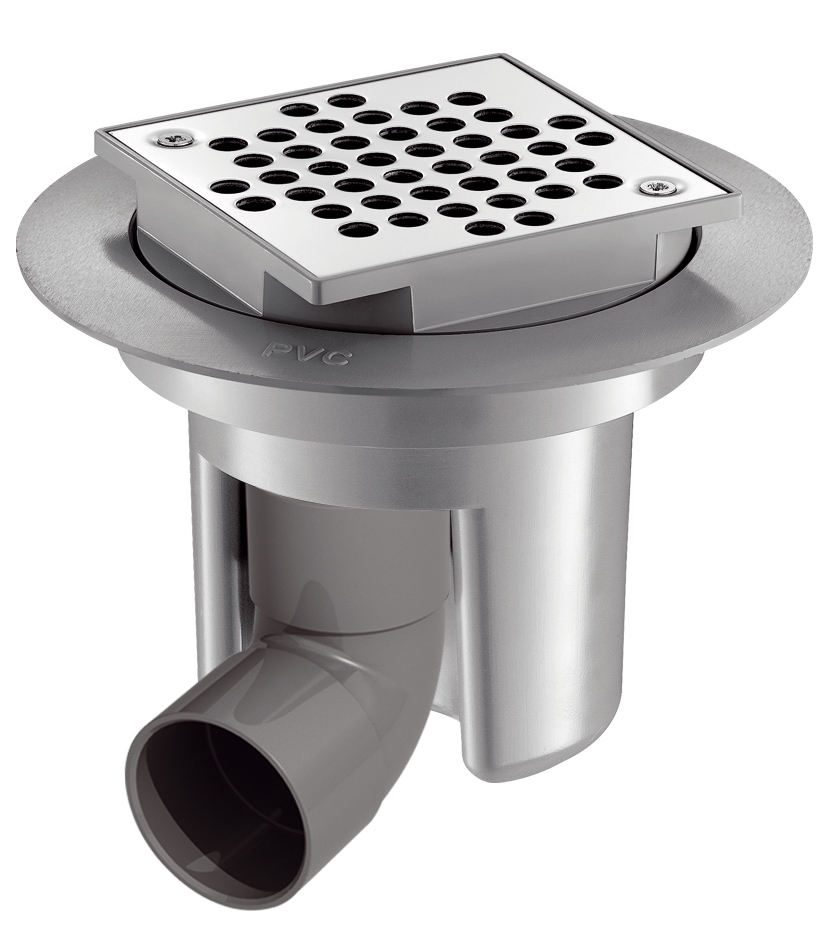

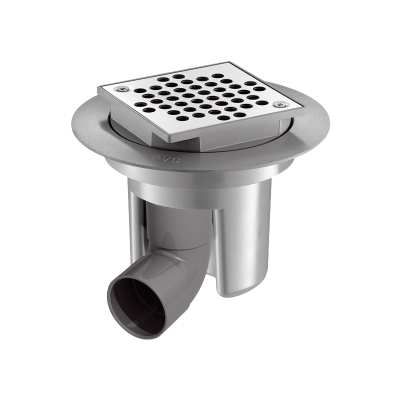

Adjustable height floor trap
Ref. 682001UKFloor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
100 x 100mm bright polished stainless steel grid.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.
Flow rate 36 lpm (meets standards).
Water level 50mm.
100 x 100mm bright polished stainless steel grid.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.
2024 UK public price excluding VAT: £58.74
ADVANTAGES
Trap adapted to floor type, adjustable height
Plunger with handle, body free of impurities
Tamperproof stainless steel grid
TECHNICAL CHARACTERISTICS
Adjustable height floor trap
Ref. 682001UK| Height | 190mm max |
| Length | 100mm |
| Width | 100mm |
| Flow rate | 36 lpm |
| Warranty |
|
VARIANTS
| 683001UK | Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm | £99.82 excl. VAT | |
|---|---|---|---|
| 683002UK | Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm | £75.18 excl. VAT | |
| 684000 | Ø 40mm outlet- tiled or concrete floors- 140 x 140mm | £78.73 excl. VAT |
Associated products
TEMPOSOFT 2 time flow shower kit
Time flow
Ref. 749429
VARIANTS
| 683001UK | Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm | £99.82 excl. VAT | |
|---|---|---|---|
| 683002UK | Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm | £75.18 excl. VAT | |
| 684000 | Ø 40mm outlet- tiled or concrete floors- 140 x 140mm | £78.73 excl. VAT |
