DESCRIPTION

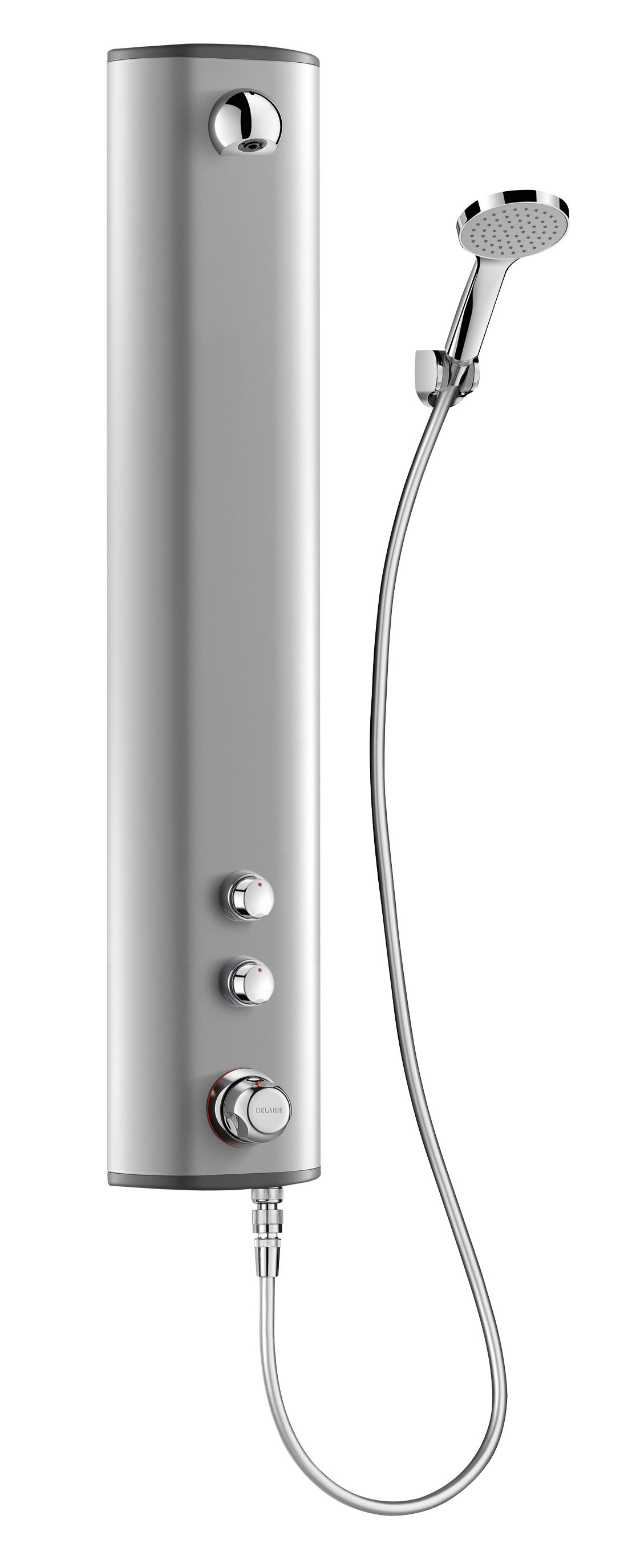

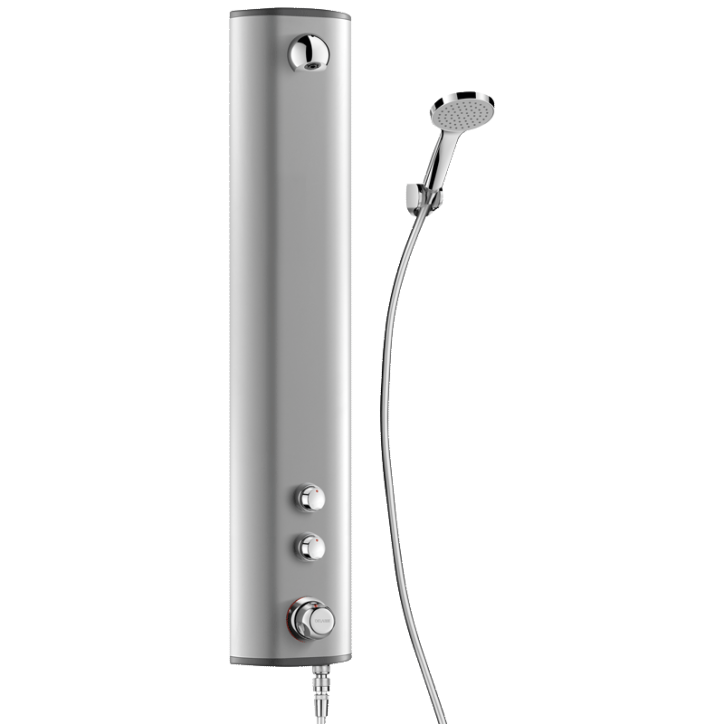

SECURITHERM shower panel
Ref. 792320SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
2x ~30-second time flow valves to control ROUND shower head and handset on flexible hose.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
2x ~30-second time flow valves to control ROUND shower head and handset on flexible hose.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
2025 UK public price excluding VAT: £1,021.15
ADVANTAGES

Thermostatic temperature regulation

Immediate shut-off if cold water fails

80% water savings

Aluminium body, brass controls

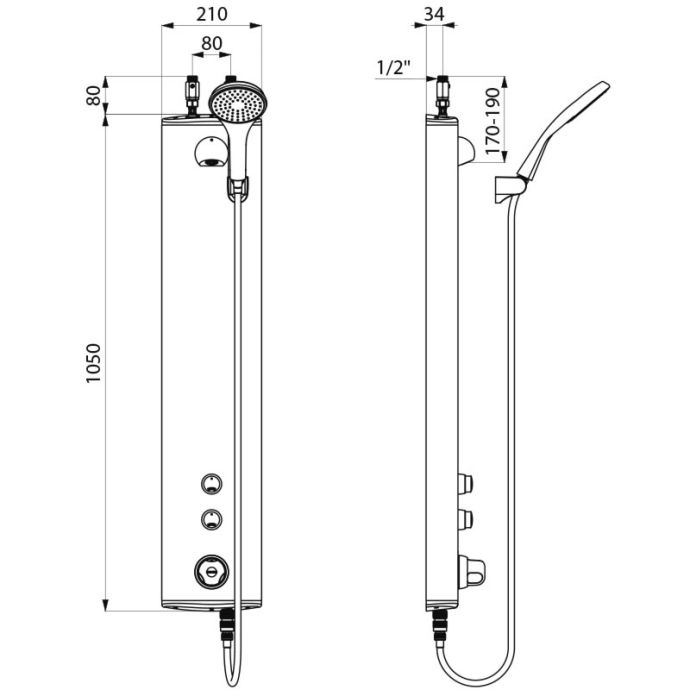

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792320Connector | M1/2" |
Technology | Time flow |
Height | 1050mm |
Depth | 65mm |
Width | 210mm |
Flow rate | 6 lpm |
Temperature limiter | thermostatic |
Finish | Aluminium |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
792330 | Concealed inlet via M½" flexibles | £1,016.65 excl. VAT | |
---|---|---|---|
79239015 | Top Ø 15mm compression fittings with inline stopcocks | £1,048.08 excl. VAT | |
792380 | Concealed inlet via M½" flexibles | £1,038.95 excl. VAT |
VARIANTS
792330 | Concealed inlet via M½" flexibles | £1,016.65 excl. VAT | |
---|---|---|---|
79239015 | Top Ø 15mm compression fittings with inline stopcocks | £1,048.08 excl. VAT | |
792380 | Concealed inlet via M½" flexibles | £1,038.95 excl. VAT |
