SECURITHERM dual control shower panel
Ref. 792334
Time flow thermostatic and mechanical dual control
Time flow thermostatic and mechanical dual control
DESCRIPTION
SECURITHERM dual control shower panel
Ref. 792334Dual control thermostatic shower panel:

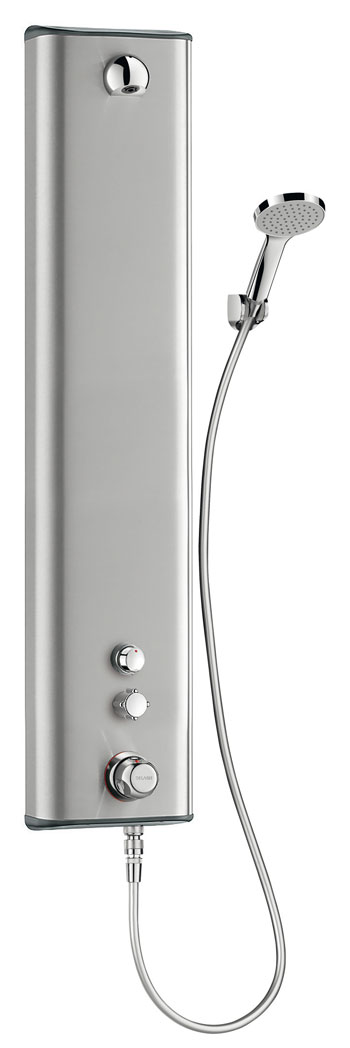

Large model satin stainless steel shower panel for wall mounted, exposed installation.
With concealed inlet via flexibles, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector, wall support supplied.
Time flow valve ~30 seconds with soft-touch operation to control the ROUND shower head
Non-time flow valve to control the handset with flexible hose.
Stopcocks.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
Large model satin stainless steel shower panel for wall mounted, exposed installation.
With concealed inlet via flexibles, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector, wall support supplied.
Time flow valve ~30 seconds with soft-touch operation to control the ROUND shower head
Non-time flow valve to control the handset with flexible hose.
Stopcocks.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £1,148.95
ADVANTAGES
Thermostatic temperature regulation
Immediate shut-off if cold water fails
Fixed or handheld shower head
Stainless steel body, brass controls
TECHNICAL CHARACTERISTICS
SECURITHERM dual control shower panel
Ref. 792334Connector | M½" |
Technology | Non-time flow and time flow |
Height | 1,220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Certificates | |
Warranty |
VARIANTS
792344 | M1/2" top inlet + inline stopcocks | £1,148.95 excl. VAT | |
---|---|---|---|
792344CF | |||
792354CF |
VARIANTS
792344 | M1/2" top inlet + inline stopcocks | £1,148.95 excl. VAT | |
---|---|---|---|
792344CF | |||
792354CF |
