DESCRIPTION

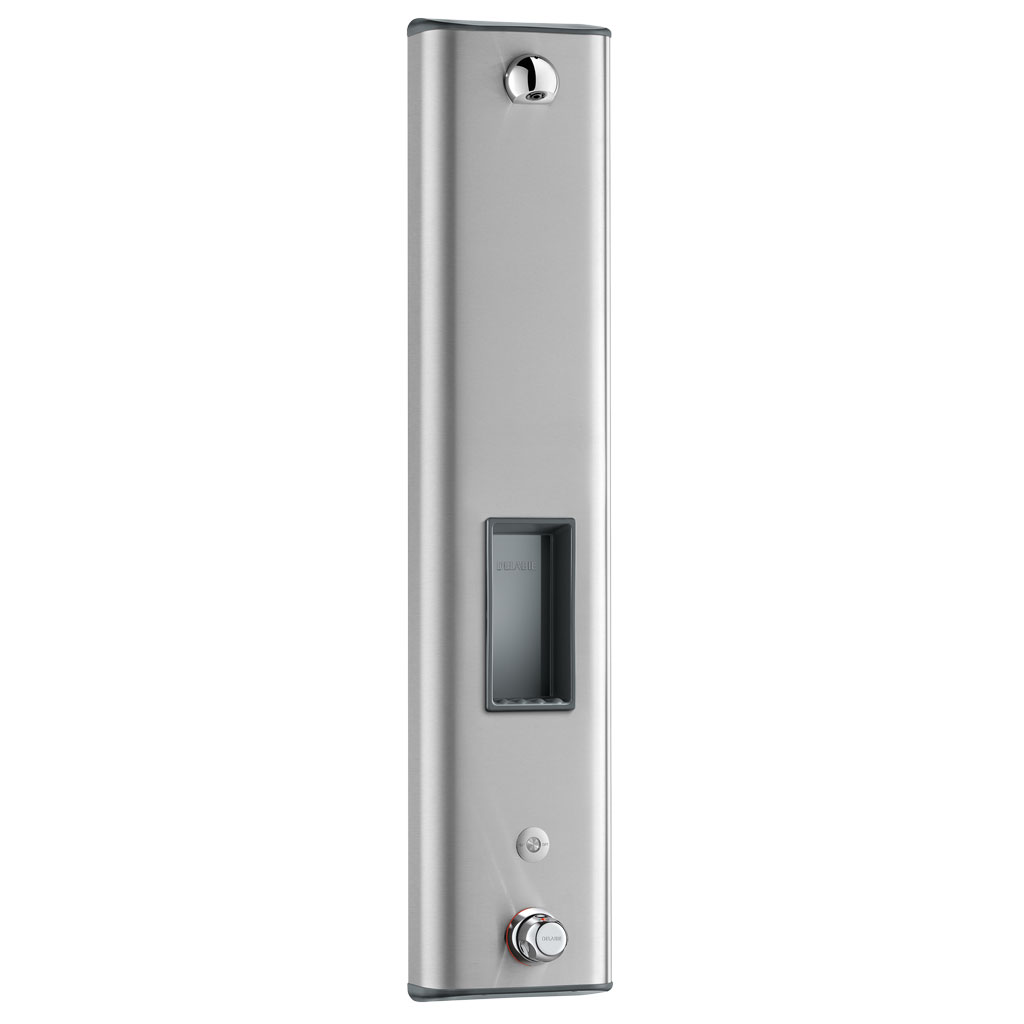

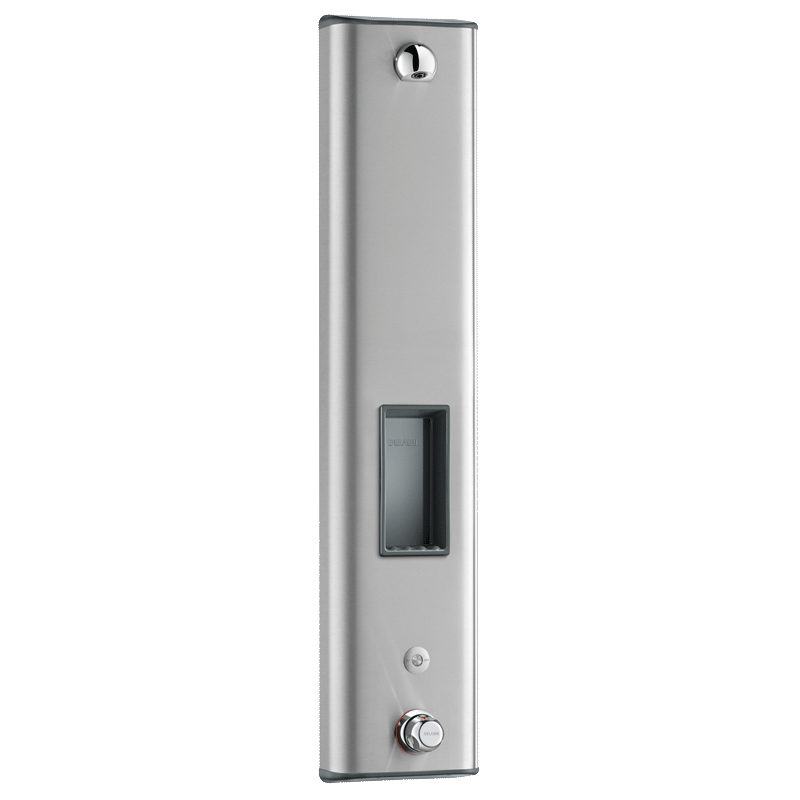

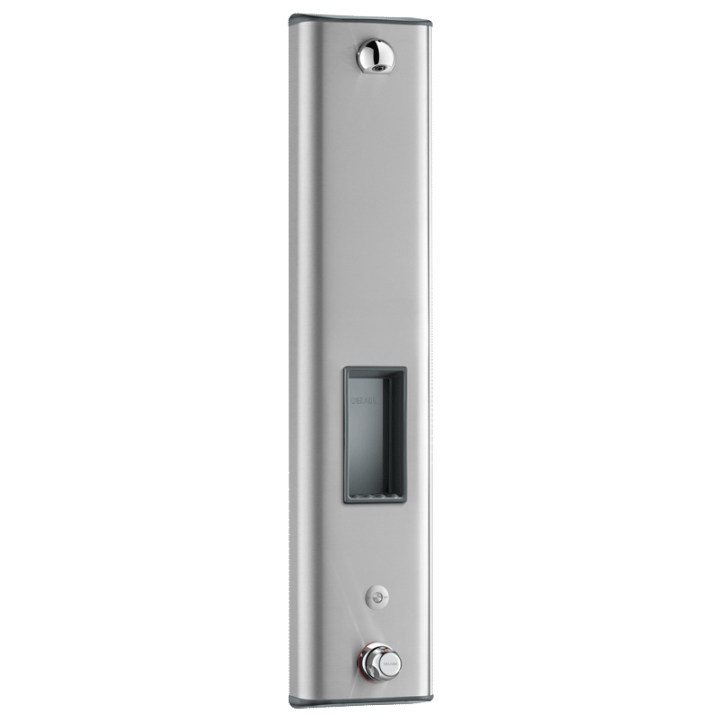

SECURITHERM shower panel
Ref. 792504Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar, can be adjusted, rain-effect spray.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
Large stainless steel panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar, can be adjusted, rain-effect spray.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £1,338.56
ADVANTAGES
Exceptional water savings: 80%
Anti-bacterial proliferation duty flush
Thermostatic temperature regulation
Instant shut-off if cold water fails
TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792504Supply | 230/6V mains supply |
Connector | M½" |
Technology | Electronic |

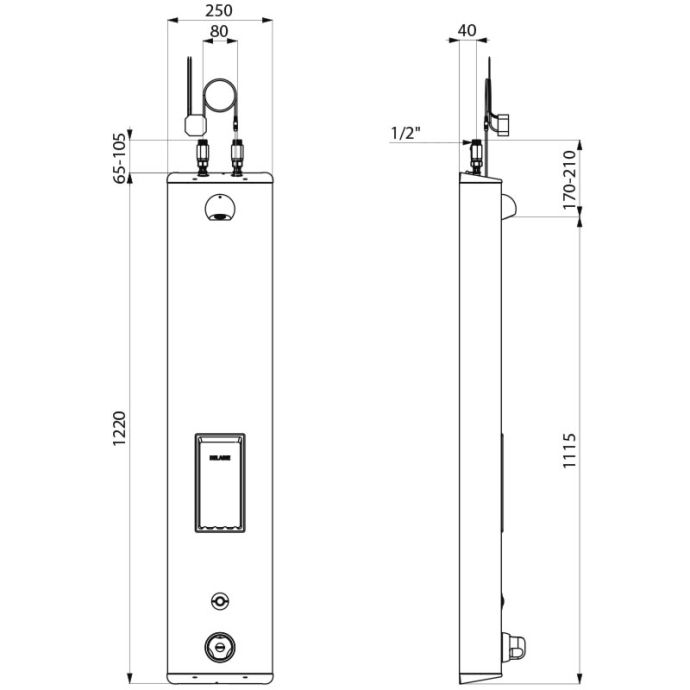

Height | 1220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Certificates | |
Warranty |
VARIANTS
792514 | Mains 230/6V, M1/2" concealed flex., soap dish, 6 lpm -max temp. 38°C | £1,338.56 excl. VAT |
---|
VARIANTS
792514 | Mains 230/6V, M1/2" concealed flex., soap dish, 6 lpm -max temp. 38°C | £1,338.56 excl. VAT |
---|
