Auto-draining shower kit with thermostatic mixer

Ref. H9630HYG
Thermostatic sequential mixer with no non-return valves
Auto-draining shower kit with thermostatic mixer

Presentation

DESCRIPTION

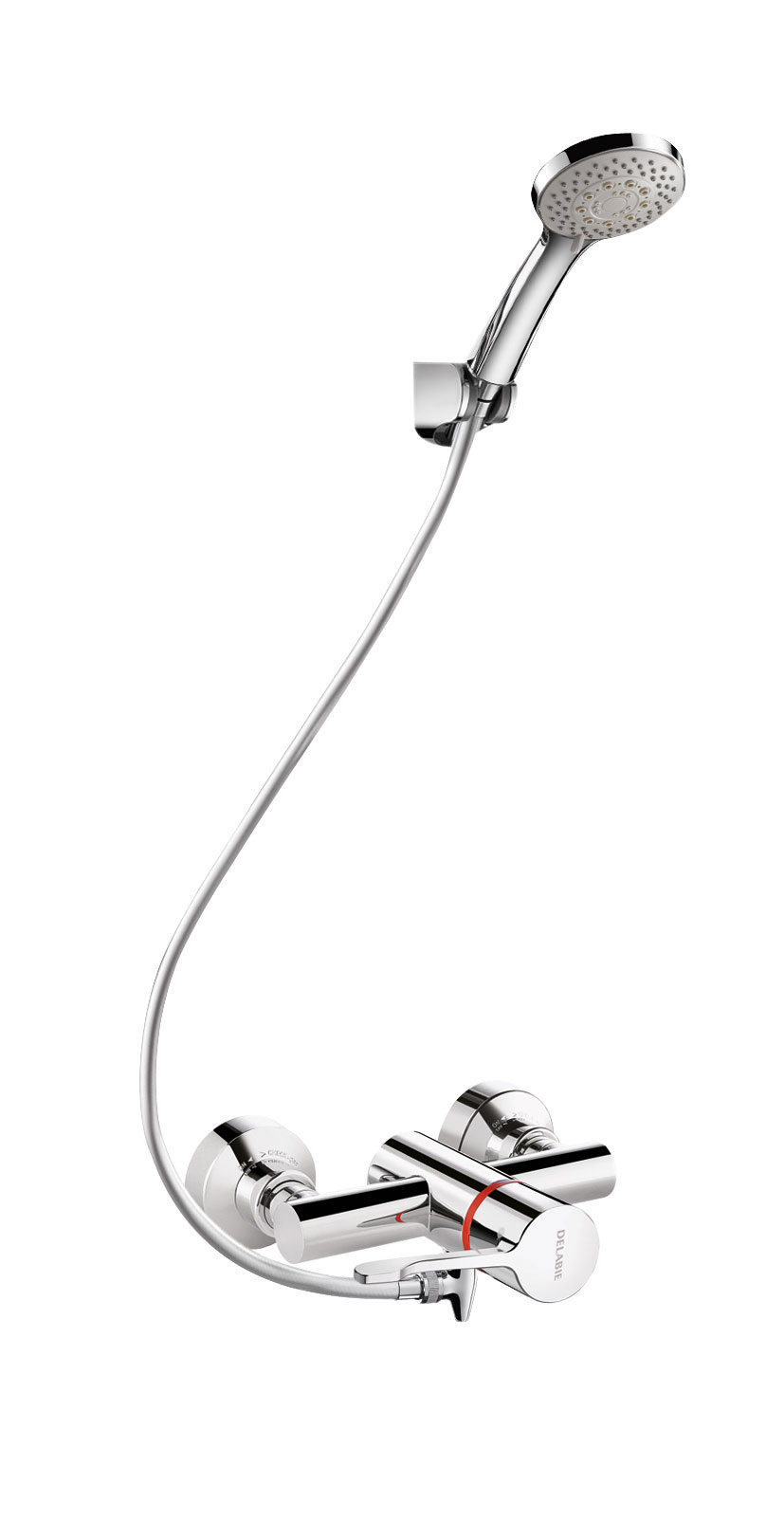

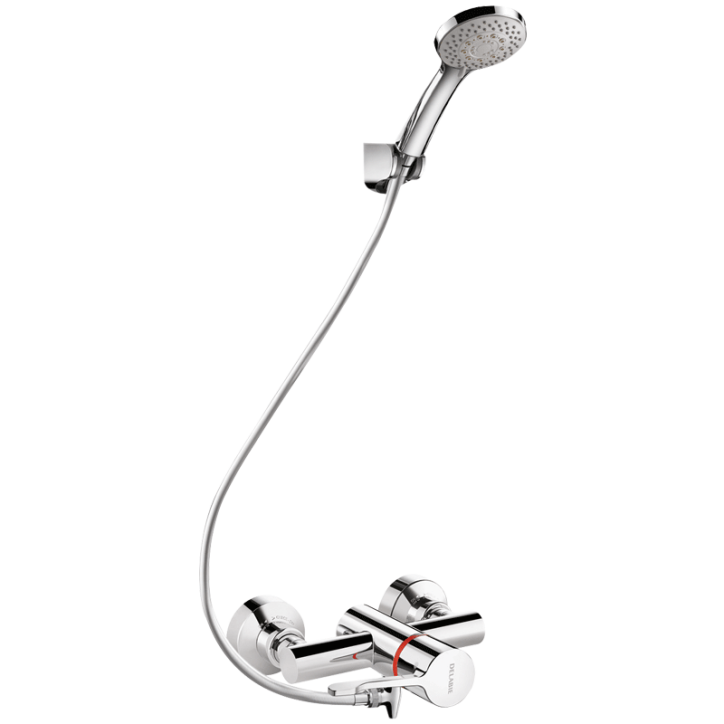

Auto-draining shower kit with thermostatic mixer

Ref. H9630HYG
SECURITHERM thermostatic sequential shower kit with auto-draining device.
• Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.

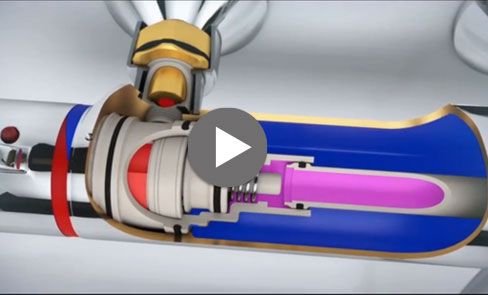

Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £496.97

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Sécurité anti-brûlure

No non-return valve.

Confort - Ergonomie - Déclenchement souple

Opens and closes via single control lever

Characteristics

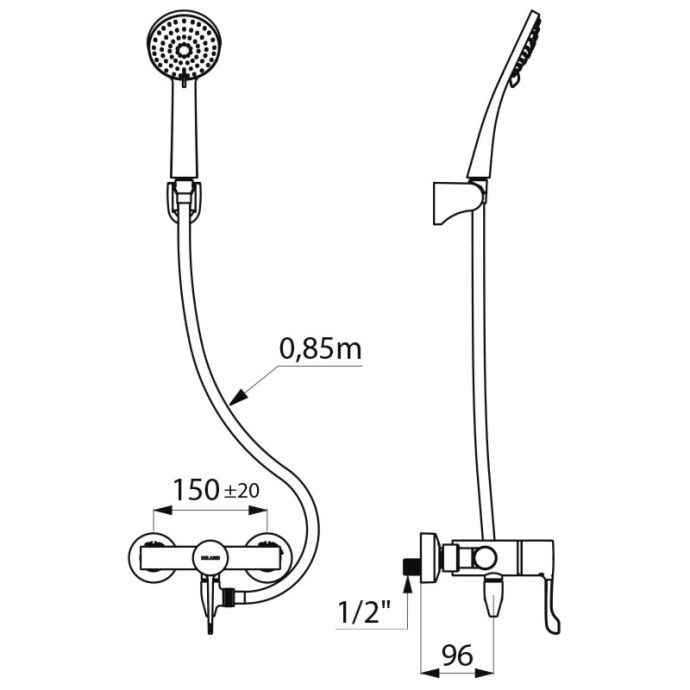

TECHNICAL CHARACTERISTICS

Auto-draining shower kit with thermostatic mixer

Ref. H9630HYG
Connector M1/2"
Technology SECURITHERM single control, Securitouch
Depth 185mm
Length 184mm
Flow rate 9 lpm
Temperature limiter 39°C
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Auto-draining shower kit with thermostatic mixer

Ref. H9630HYG

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

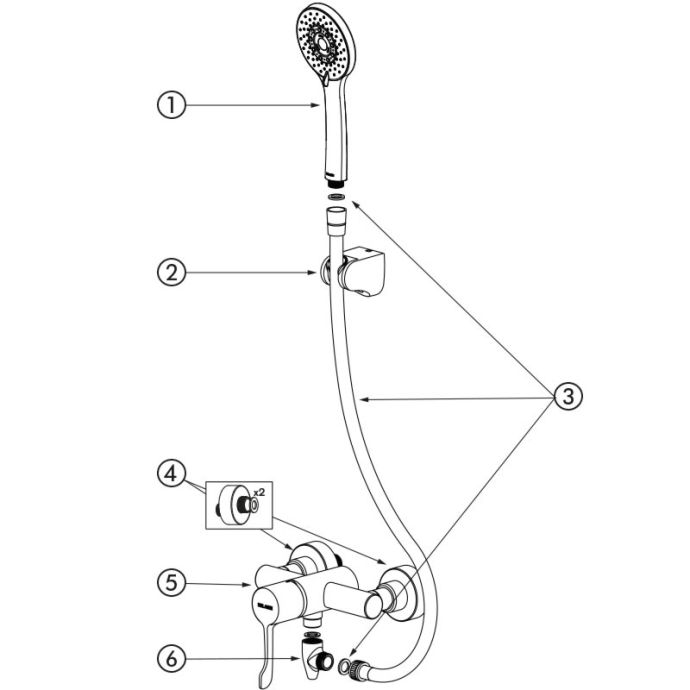

SPARE PARTS

Auto-draining shower kit with thermostatic mixer

Ref. H9630HYG
1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 845
Wall-mounted tilting support for shower heads
3. 836T3
SILVER flexible shower hose
4. 855755.2P
Offset connectors
5. 880
Auto-draining device

VARIANTS

H9630SHYG Standard offset connectors £465.20 excl. VAT
