DESCRIPTION

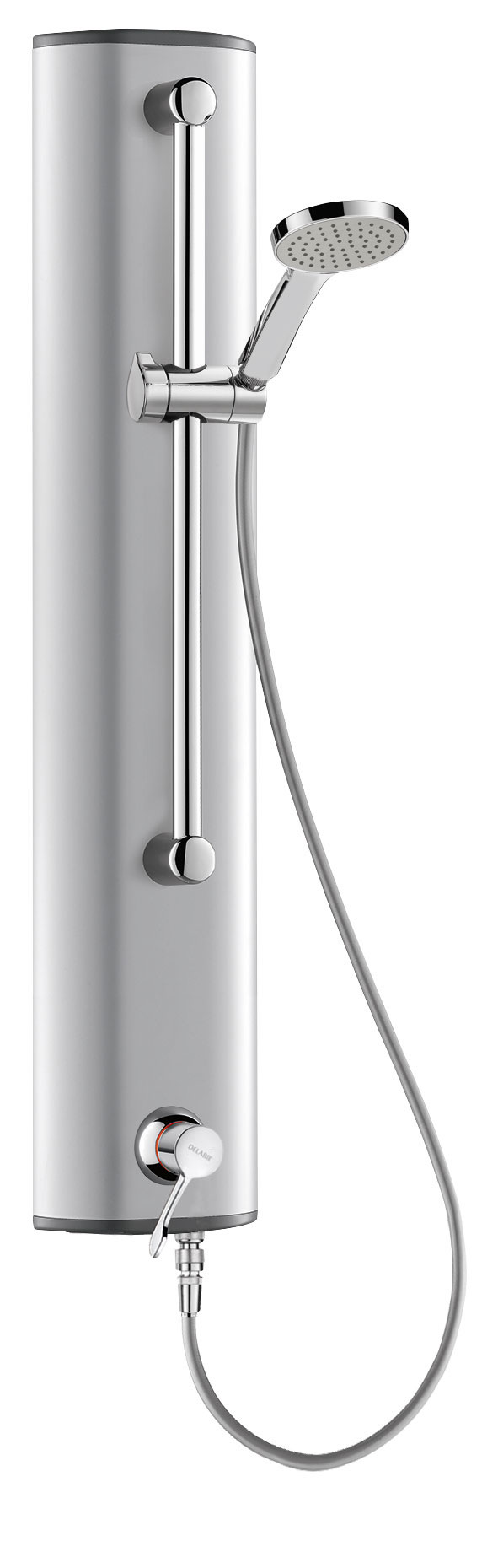

Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635Anodised aluminium shower panel for wall-mounted, exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings
Filters.
Suitable for people with reduced mobility.
30-year warranty.
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings
Filters.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £816.32
ADVANTAGES
Sequential: opens/closes with cold water
No non-return valves on inlets
SECURITHERM: optimal anti-scalding safety
Thermostatic: total temperature stability

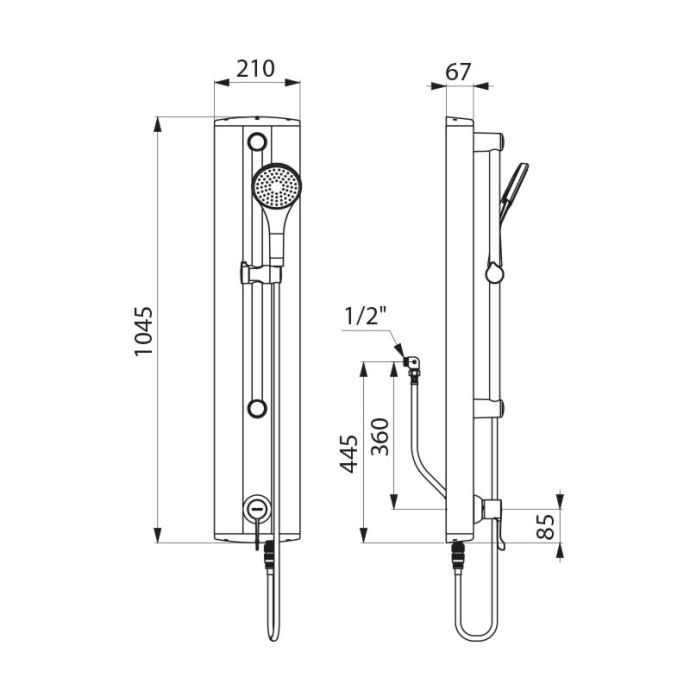

TECHNICAL CHARACTERISTICS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635| Supply | Concealed, via M1/2" flexible |
| Connector | M1/2" |
| Technology | Sequential thermostatic SECURITHERM |
| Height | 1045mm |
| Width | 210mm |
| Flow rate | 9 lpm |
| Temperature limiter | 39°C |
| Finish | Aluminium |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

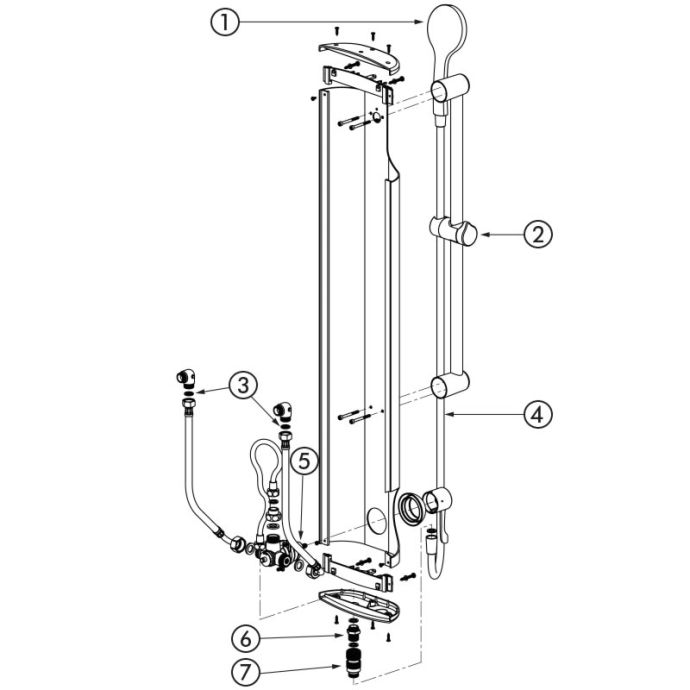

SPARE PARTS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635
| 1. | 815 |
|
Chrome-plated single jet shower head M1/2" |
| 2. | 4110P |
|
Sliding shower head holder for shower rails, Ø 25mm and 32mm, bright |
| 3. | 60212.10P |
|
Flat filter |
| 4. | 836T1 |
|
SILVER flexible shower hose |
| 5. | N963 |
|
Thermostatic cartridge for shower mixers |
| 6. | 826115 |
|
Back-nut |
| 7. | 807792 |
|
Push-fit rapid STOP connector |
VARIANTS
| H9636 | M1/2" top inlet + inline stopcocks | £816.32 excl. VAT | |
|---|---|---|---|
| H963615 | Top Ø 15mm compression fittings with inline stopcocks | £829.60 excl. VAT | |
| H963915 | Top Ø 15mm compression fittings with inline stopcocks | £710.15 excl. VAT | |
| H9639 | M1/2" top inlet + inline stopcocks | £696.86 excl. VAT | |
| H9634 | Concealed inlet via M½" flexibles | £696.86 excl. VAT |
Associated products
Cut-to-size extension
For aluminium shower panel
Ref. 790152
Adjustable height floor trap
For tiles or concrete floors
Ref. 683001UK
BIOFIL 2-month shower filter
Non-sterile
Ref. 30261
VARIANTS
| H9636 | M1/2" top inlet + inline stopcocks | £816.32 excl. VAT | |
|---|---|---|---|
| H963615 | Top Ø 15mm compression fittings with inline stopcocks | £829.60 excl. VAT | |
| H963915 | Top Ø 15mm compression fittings with inline stopcocks | £710.15 excl. VAT | |
| H9639 | M1/2" top inlet + inline stopcocks | £696.86 excl. VAT | |
| H9634 | Concealed inlet via M½" flexibles | £696.86 excl. VAT |
