SECURITHERM shower panel
Ref. H9636
Thermostatic shower panel with mixer with no non-return valves
Thermostatic shower panel with mixer with no non-return valves
DESCRIPTION

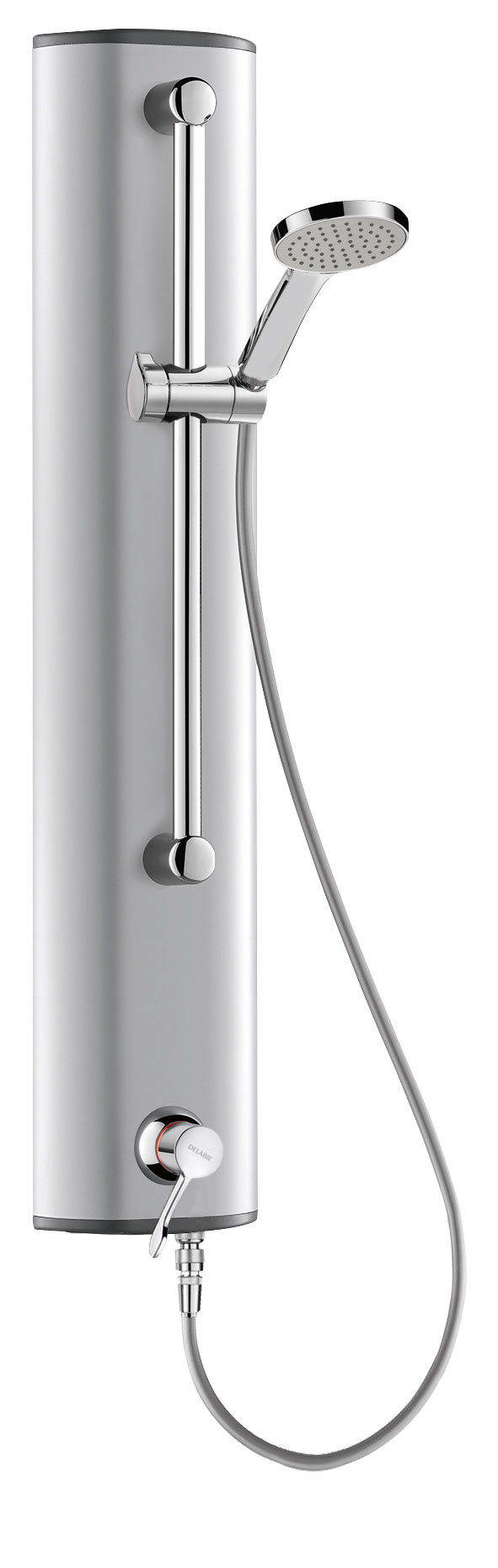

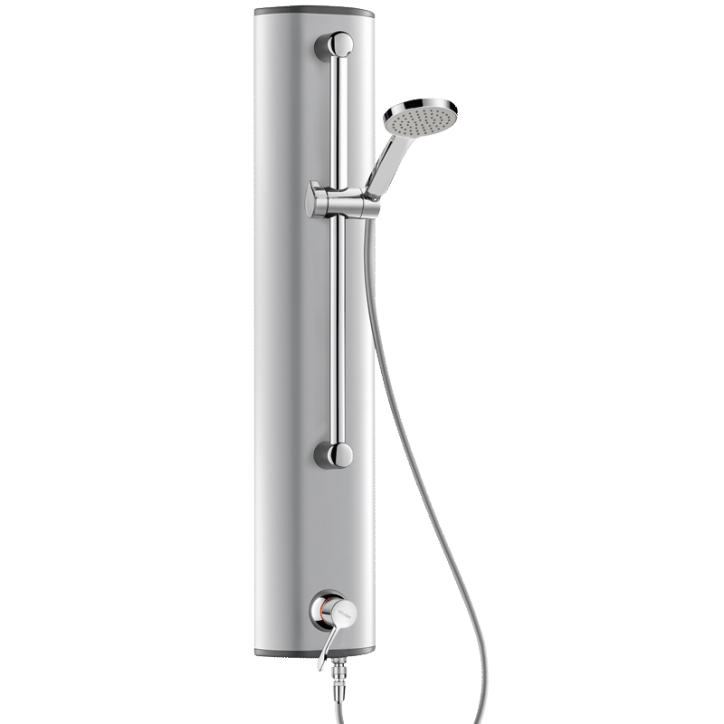

SECURITHERM shower panel
Ref. H9636SECURITHERM shower panel made from anodised aluminium for wall-mounted exposed installation:
SECURITHERM sequential thermostatic shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer without non-return valves (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" stopcocks.
Concealed fixings.
Filters.

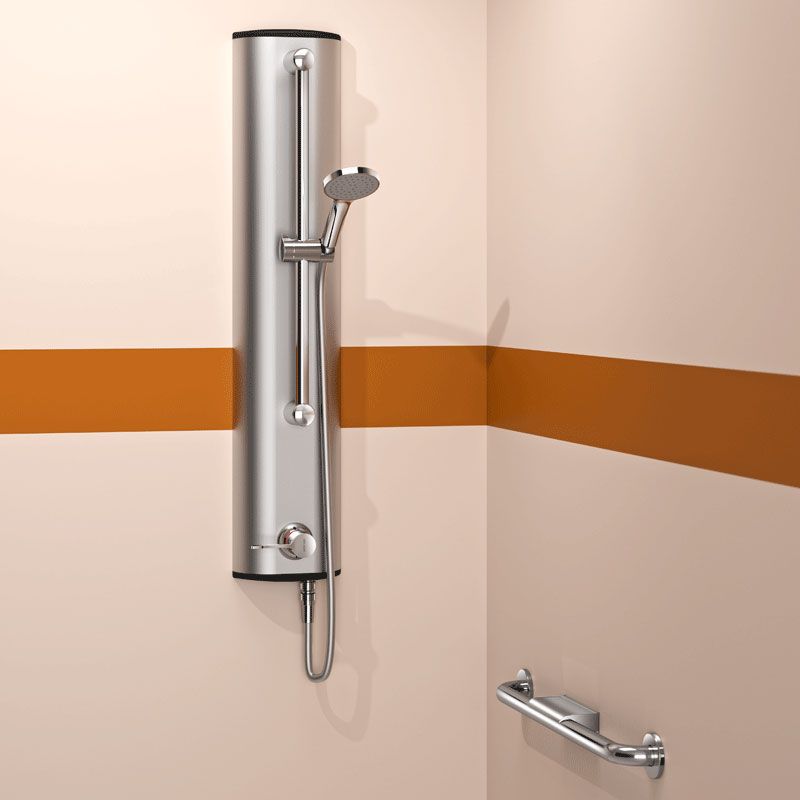

Shower panel ideal for healthcare facilities, retirement and care homes, hospitals and clinics.

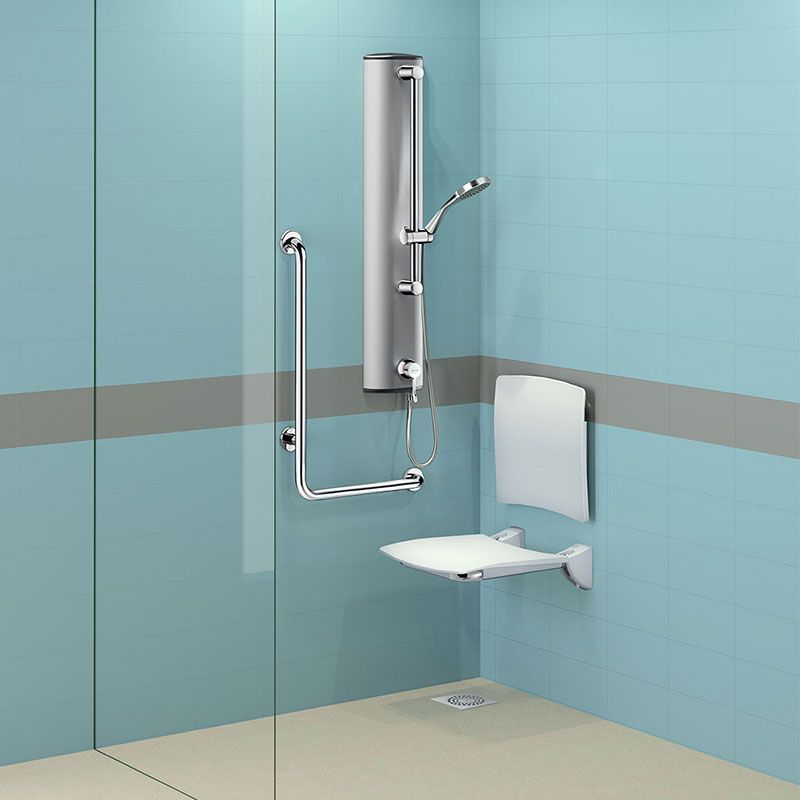

Suitable for people with reduced mobility.
Shower panel with 30-year warranty.
SECURITHERM sequential thermostatic shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer without non-return valves (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" stopcocks.
Concealed fixings.
Filters.
Shower panel ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Shower panel with 30-year warranty.
2025 UK public price excluding VAT: £840.81
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: Optimum anti-scalding safety
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Maximum hygiene: no non-return valves
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Thermostatic: total temperature stability
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)

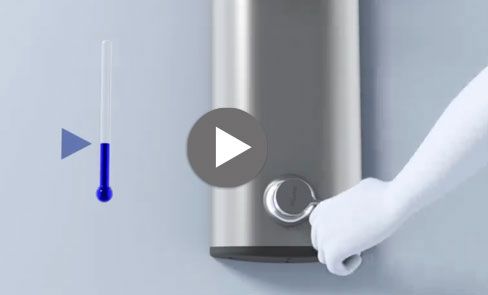

Sequential: opens/closes with cold water

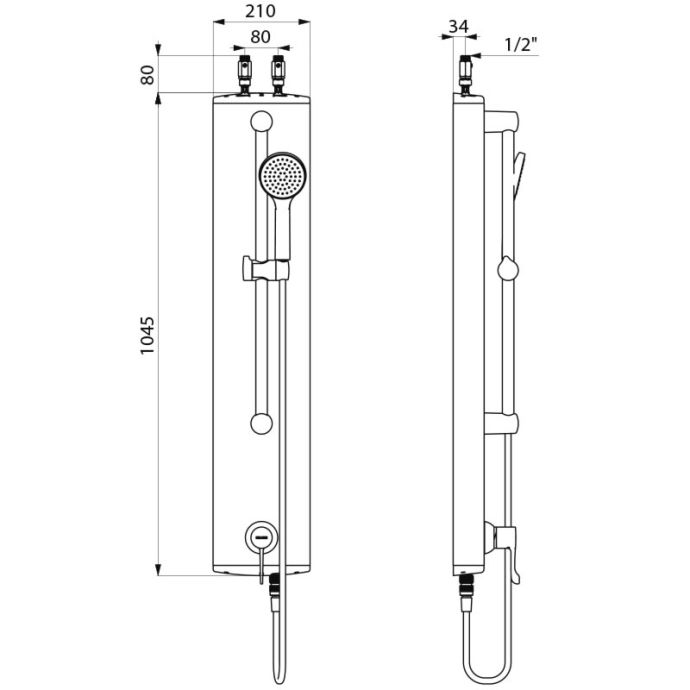

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. H9636Supply | Top inlets with M1/2" inline stopcocks |
Connector | M1/2" |
Technology | Sequential thermostatic shower mixer |
Height | 1045mm |
Width | 210mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Aluminium |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

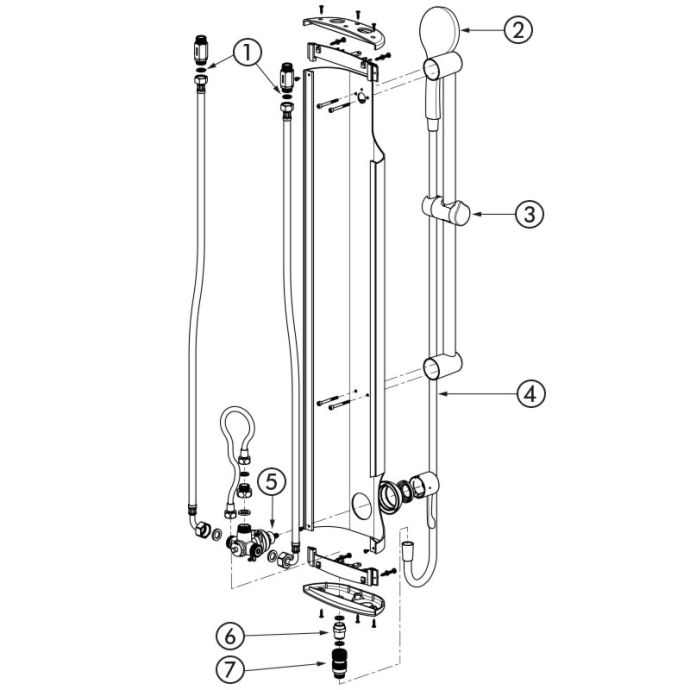

SPARE PARTS
SECURITHERM shower panel
Ref. H9636![](https://www.delabie.co.uk/var/site/storage/images/5/4/2/5/3555245-1-fre-FR/PD_H9636.jpg)
1. | 60212.10P |
|
Flat filter |
2. | 815 |
|
Chrome-plated single jet shower head M1/2" |
3. | 4110P |
|
Sliding shower head holder for shower rails, Ø 25mm and 32mm, bright |
4. | 836T1 |
|
SILVER flexible shower hose |
5. | N963 |
|
Thermostatic cartridge for shower mixers |
6. | 826115 |
|
Back-nut |
7. | 807792 |
|
Push-fit rapid STOP connector |
VARIANTS
H963615 | Top Ø 15mm compression fittings with inline stopcocks | £854.49 excl. VAT | |
---|---|---|---|
H9639 | M1/2" top inlet + inline stopcocks | £717.77 excl. VAT | |
H963915 | Top Ø 15mm compression fittings with inline stopcocks | £731.45 excl. VAT | |
H9635 | Concealed inlet via M½" flexibles | £840.81 excl. VAT | |
H9634 | Concealed inlet via M½" flexibles | £717.77 excl. VAT |
VARIANTS
H963615 | Top Ø 15mm compression fittings with inline stopcocks | £854.49 excl. VAT | |
---|---|---|---|
H9639 | M1/2" top inlet + inline stopcocks | £717.77 excl. VAT | |
H963915 | Top Ø 15mm compression fittings with inline stopcocks | £731.45 excl. VAT | |
H9635 | Concealed inlet via M½" flexibles | £840.81 excl. VAT | |
H9634 | Concealed inlet via M½" flexibles | £717.77 excl. VAT |
