Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963615
Thermostatic shower panel with mixer and no non-return valves
Aluminium shower panel with SECURITHERM sequential mixer

Presentation

DESCRIPTION

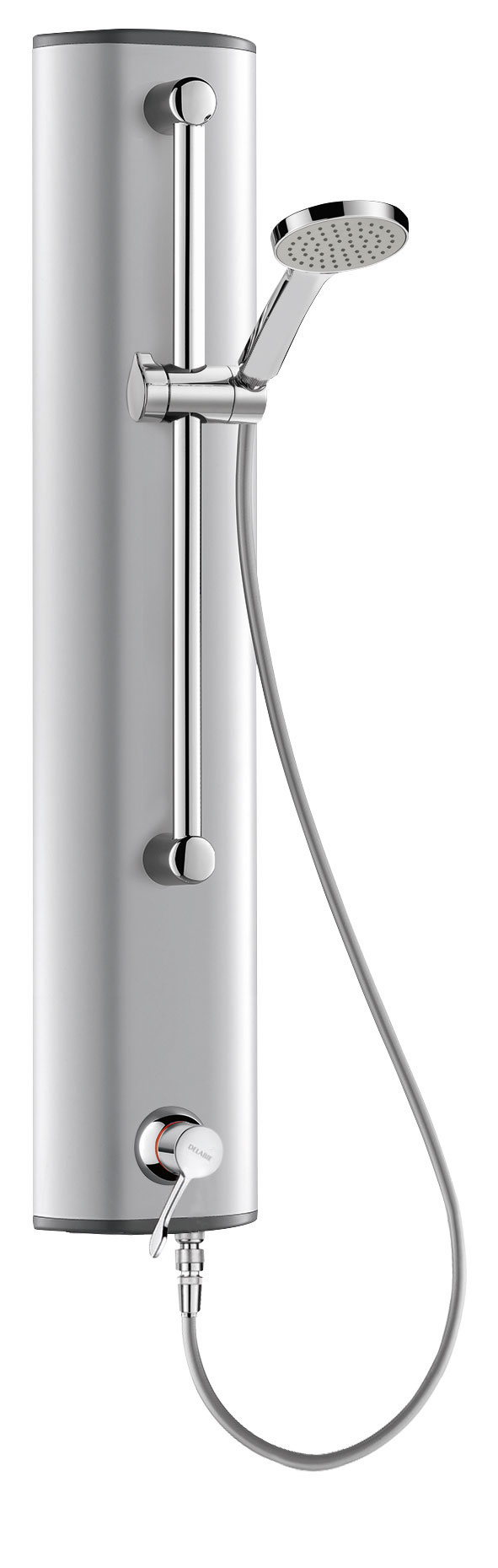

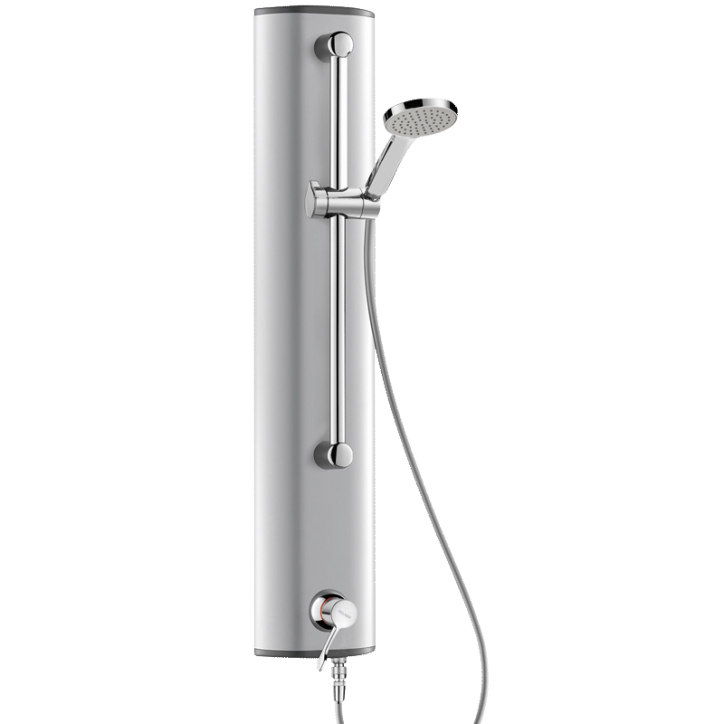

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963615

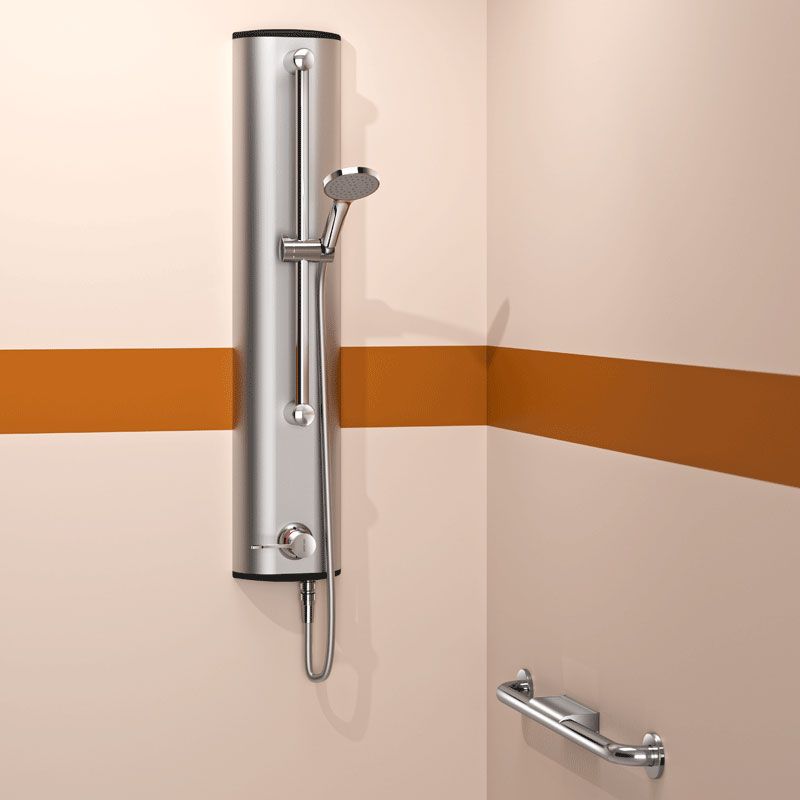

SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation.
SECURITHERM thermostatic sequential shower mixer (non-time flow).
Thermostatic sequential shower mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Temperature control from cold water up to 39°C.
Temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on chrome-plated rail with flexible shower hose removable with push fit rapid STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" inline stopcocks.
Copper tubes.
Concealed fixings. Filters.

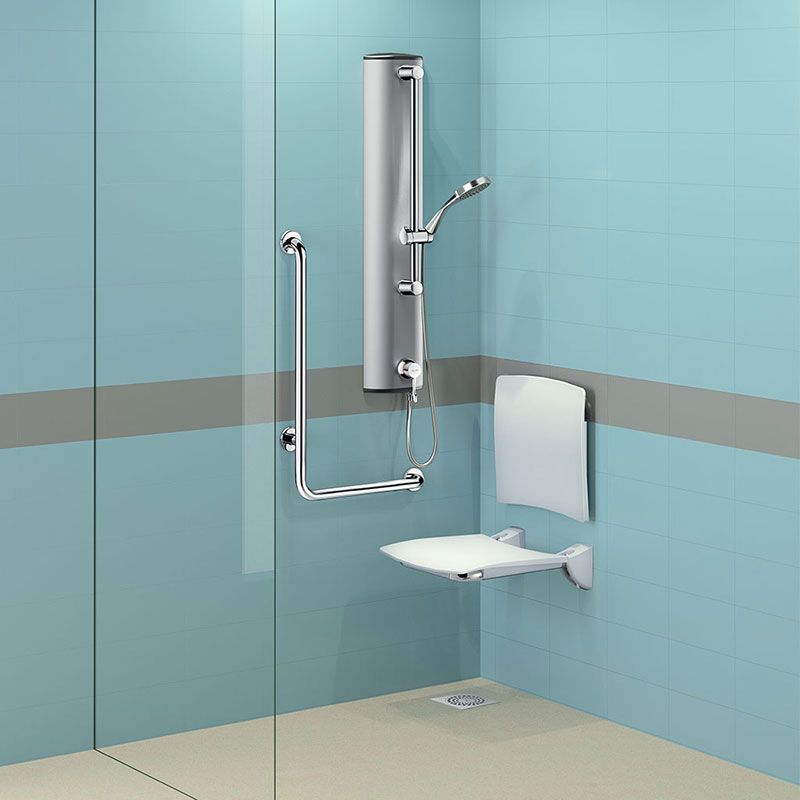

Shower panel suitable for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £829.60

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Hygiène - Anti-bactérien - BIOSAFE

Sequential: open and closing on cold water

Characteristics

TECHNICAL CHARACTERISTICS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963615
Supply Top inlets via inline stopcocks M1/2"
Connector M1/2", Ø 15mm
Technology SECURITHERM single control thermostatic mixer

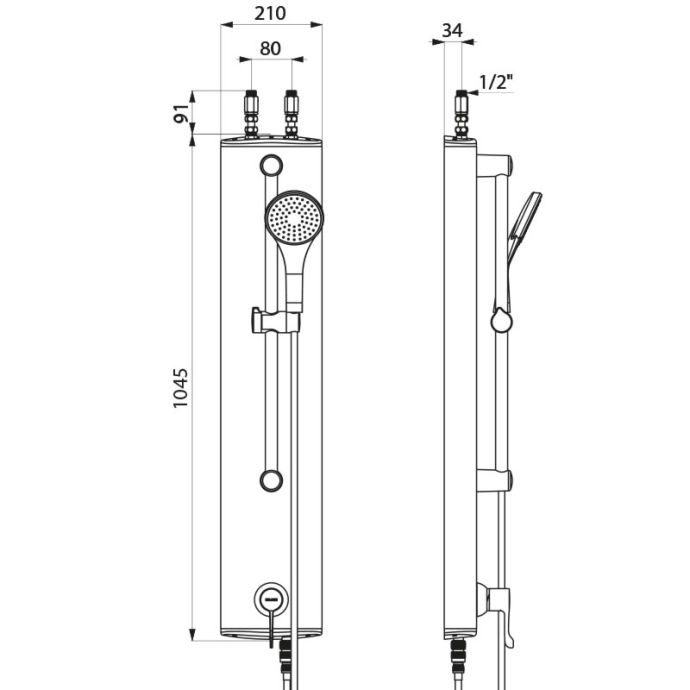

Height 1045mm
Width 210mm
Flow rate 9 lpm
Temperature limiter 39°C
Finish Aluminium
Warranty 30-Year

Downloads

DOWNLOADS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963615

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9636 M1/2" top inlet + inline stopcocks £816.32 excl. VAT
H963915 Top Ø 15mm compression fittings with inline stopcocks £710.15 excl. VAT
H9639 M1/2" top inlet + inline stopcocks £696.86 excl. VAT
H9635 Concealed inlet via M½" flexibles £816.32 excl. VAT
H9634 Concealed inlet via M½" flexibles £696.86 excl. VAT
