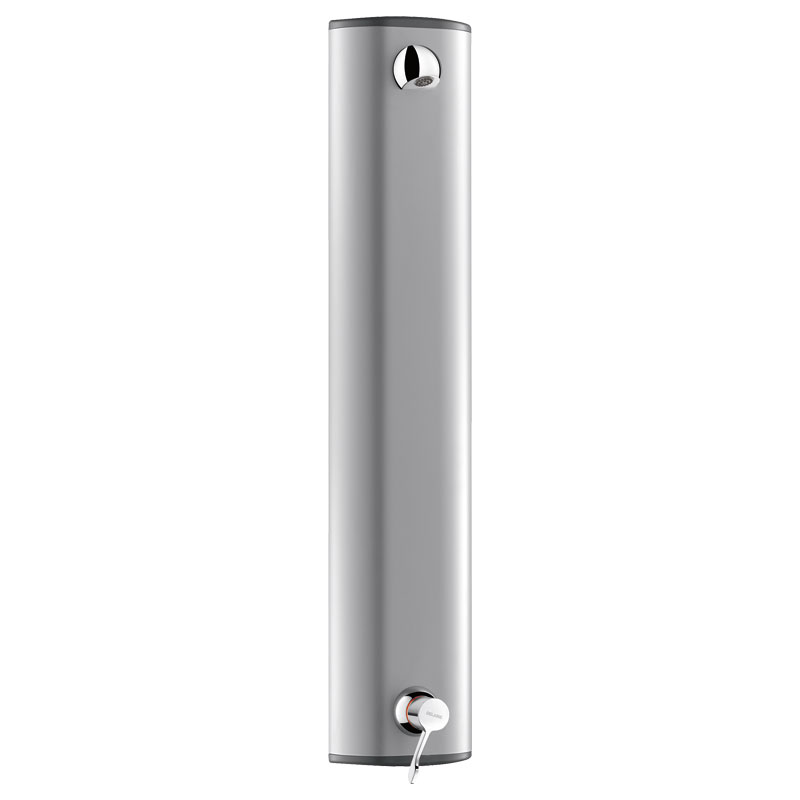

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963915
Sequential thermostatic mixer
Aluminium shower panel with SECURITHERM sequential mixer

Presentation

DESCRIPTION

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963915
SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Hygiene control lever L. 100mm.
Top inlets with M1/2" stopcocks.
With copper tails.
Concealed fixings and filters.
30-year warranty.

2024 UK public price excluding VAT: £710.15

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Hygiène - Anti-bactérien - BIOSAFE

No non-return valves on inlets

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Hygiène - Anti-bactérien - BIOSAFE

Sequential open and closing on cold water

Characteristics

TECHNICAL CHARACTERISTICS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963915

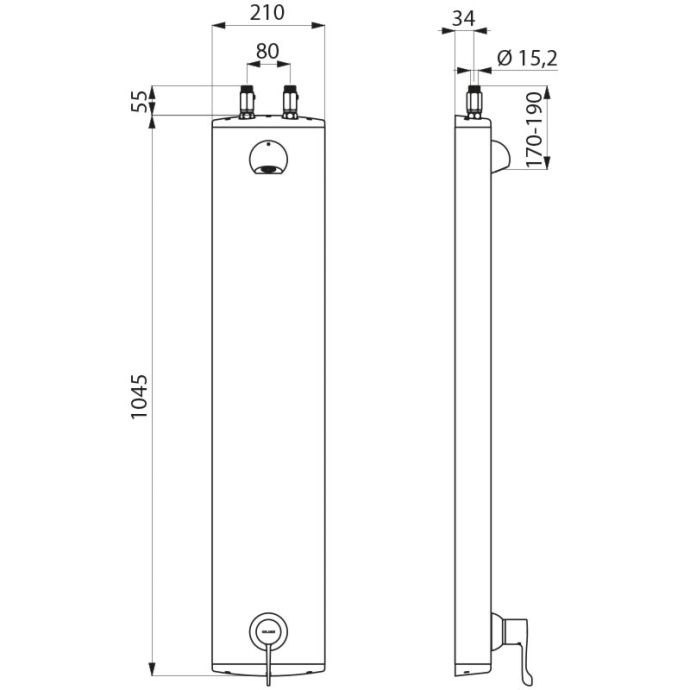

Supply Top inlets via inline stopcocks M1/2"
Connector M1/2", Ø 15mm
Technology SECURITHERM single control thermostatic mixer
Height 1050mm
Width 210mm
Flow rate 6 lpm
Temperature limiter 39°C
Finish Aluminium
Certificates Logo WRAS Logo TMV
Warranty 30-Year
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H963915

Downloads

DOWNLOADS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H963915

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9636 M1/2" top inlet + inline stopcocks £816.32 excl. VAT
H963615 Top Ø 15mm compression fittings with inline stopcocks £829.60 excl. VAT
H9639 M1/2" top inlet + inline stopcocks £696.86 excl. VAT
H9635 Concealed inlet via M½" flexibles £816.32 excl. VAT
H9634 Concealed inlet via M½" flexibles £696.86 excl. VAT
