Recessing housing for thermostatic shower mixers

Ref. H96CBOX
Sequential mixer, kit 1/2
Recessing housing for thermostatic shower mixers

Presentation

DESCRIPTION

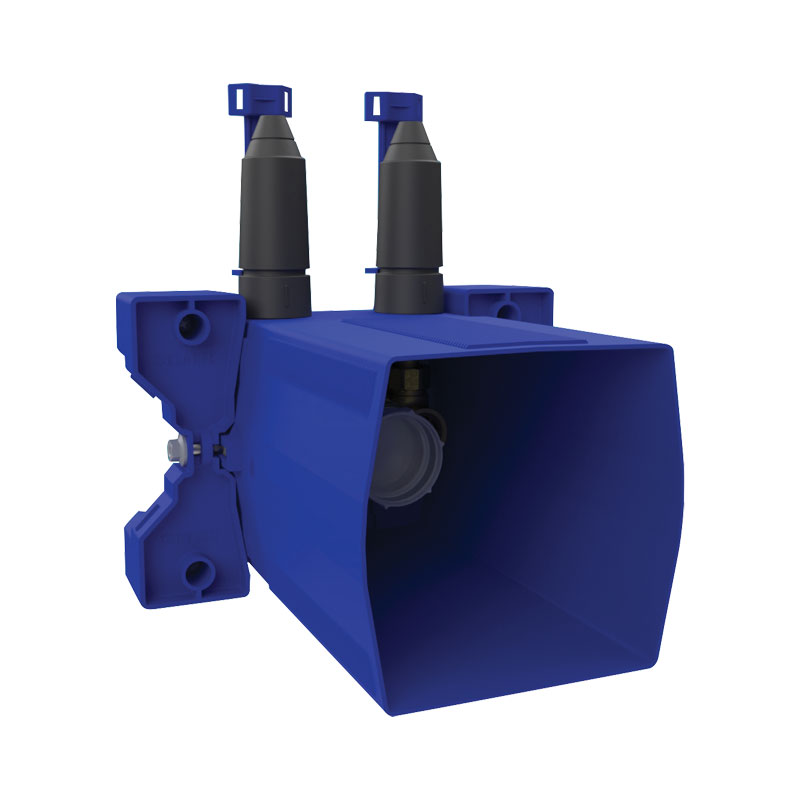

Recessing housing for thermostatic shower mixers

Ref. H96CBOX
Waterproof recessing housing for sequential thermostatic shower mixer, kit 1/2:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Water supply connects from the top.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Sequential thermostatic shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.

Order with the control plate reference H9633.

2024 UK public price excluding VAT: £331.29

ADVANTAGES

Maintenance aisée - Installation aisée

Recessed installation

Faible espacement au mur - Encombrement limité

Modular and adjustable waterproof housing

Hygiène - Anti-bactérien - BIOSAFE

Sequential mixer: no non-return valves

Economie d'eau

100% waterproof housing

Characteristics

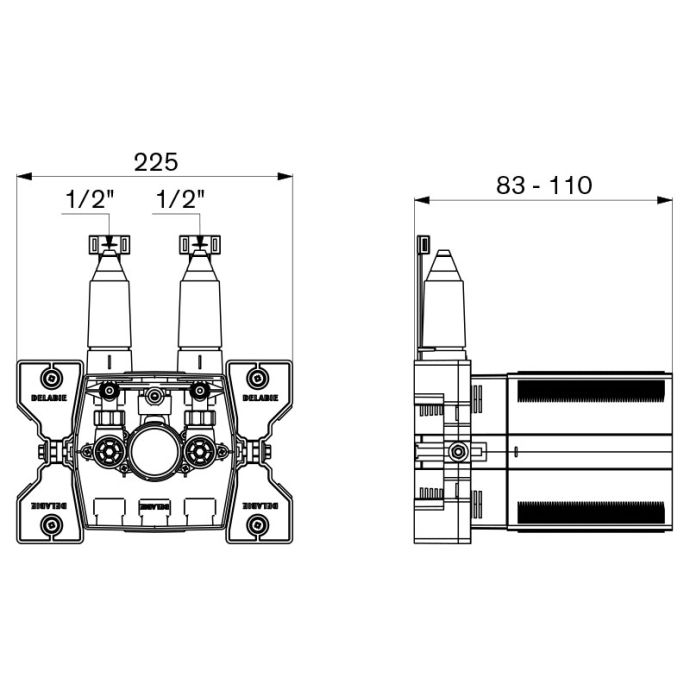

TECHNICAL CHARACTERISTICS

Recessing housing for thermostatic shower mixers

Ref. H96CBOX
Connector 1/2"
Technology SECURITHERM Securitouch sequential thermostatic mixer
Depth 80-110mm
Width 225mm
Certificates ACS Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

Boîtier d’encastrement pour mitigeur de douche thermostatique

Ref. H96CBOX

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9633 Thermostatic mixer with ERGO control knobs - With elbow outlet £345.10 excl. VAT
H9631 Thermostatic mixer with ERGO control knobs - Without elbow outlet £303.71 excl. VAT
H9633L Thermostatic mixer with Hygiene lever - Without elbow outlet £354.79 excl. VAT
H9631L Thermostatic mixer with Hygiene lever - Without elbow outlet £313.85 excl. VAT
H96BOX Waterproof housing for control plate without elbow £296.79 excl. VAT

VARIANTS

H9633 Thermostatic mixer with ERGO control knobs - With elbow outlet £345.10 excl. VAT
H9631 Thermostatic mixer with ERGO control knobs - Without elbow outlet £303.71 excl. VAT
H9633L Thermostatic mixer with Hygiene lever - Without elbow outlet £354.79 excl. VAT
H9631L Thermostatic mixer with Hygiene lever - Without elbow outlet £313.85 excl. VAT
H96BOX Waterproof housing for control plate without elbow £296.79 excl. VAT
