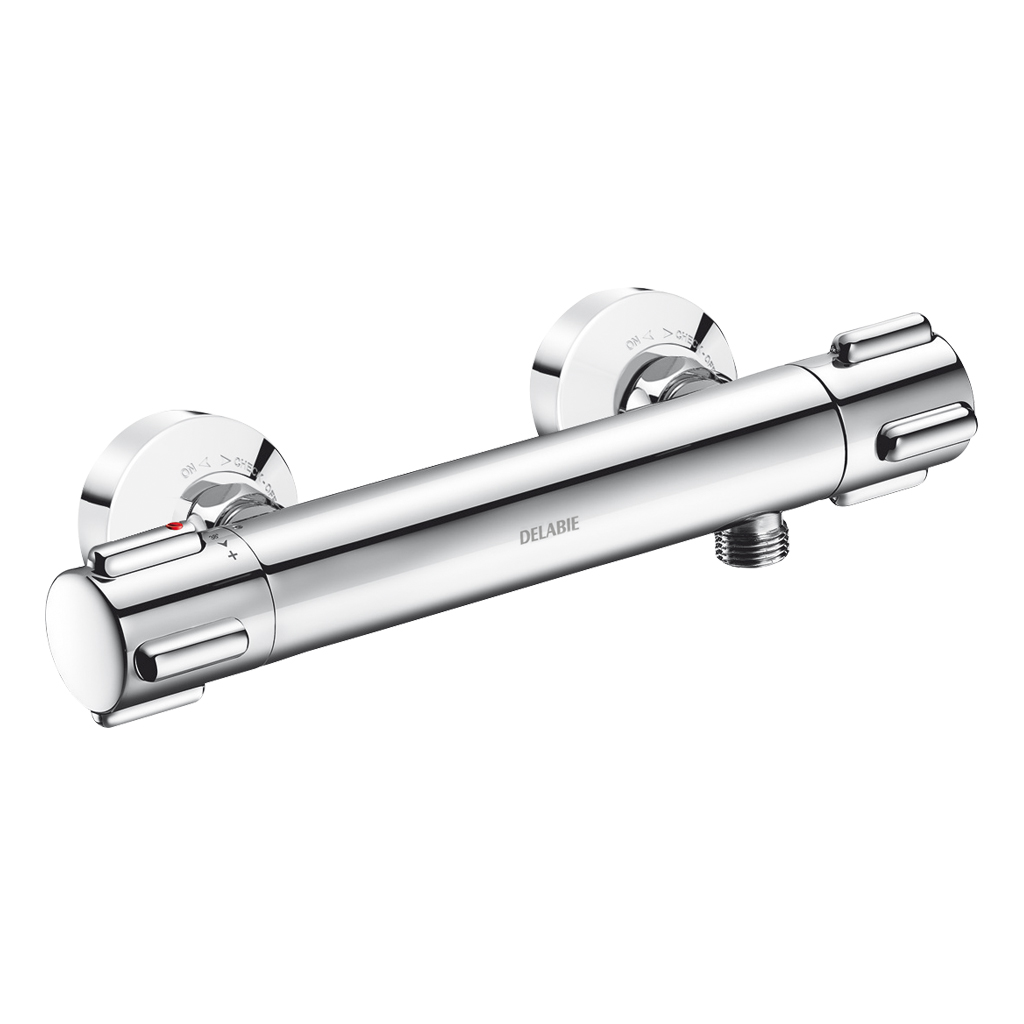

SECURITHERM thermostatic shower mixer

Ref. H9739
Dual control thermostatic shower mixer
SECURITHERM thermostatic shower mixer

Presentation

DESCRIPTION

SECURITHERM thermostatic shower mixer

Ref. H9739
SECURITHERM dual control thermostatic shower mixer:
Mixer with anti-scalding safety: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.

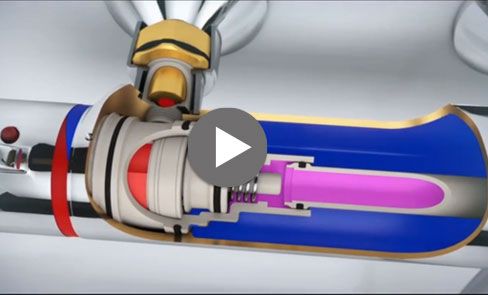

Scale-resistant thermostatic cartridge for temperature adjustment.
1/4-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 40°C with maximum temperature limiter set at 38°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and CLASSIC controls.
M1/2" shower outlet.
Filters and non-return valves F3/4" integrated on the inlets.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
Ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.

2024 UK public price excluding VAT: £361.39

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Confort - Ergonomie - Déclenchement souple

Ergonomic: controls are easy to grip

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM thermostatic shower mixer

Ref. H9739
Connector M1/2"
Technology SECURITHERM thermostatic dual control mixer

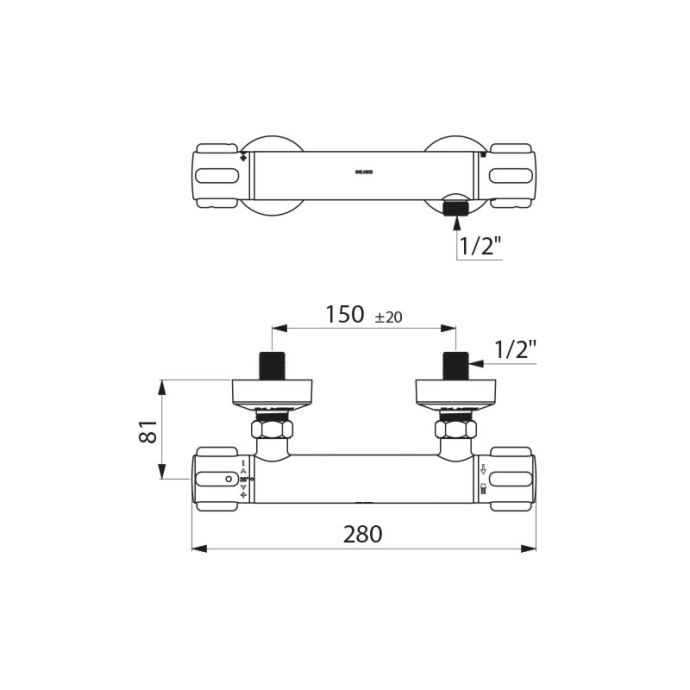

Length 81mm
Width 280mm
Flow rate 9 lpm
Temperature limiter 38°C
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de douche thermostatique SECURITHERM

Ref. H9739

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

SECURITHERM thermostatic shower mixer

Ref. H9739
H9739KIT
SECURITHERM securitouch thermostatic shower kit
SECURITHERM securitouch thermostatic shower kit

VARIANTS

H9739S Standard offset connectors £322.03 excl. VAT
